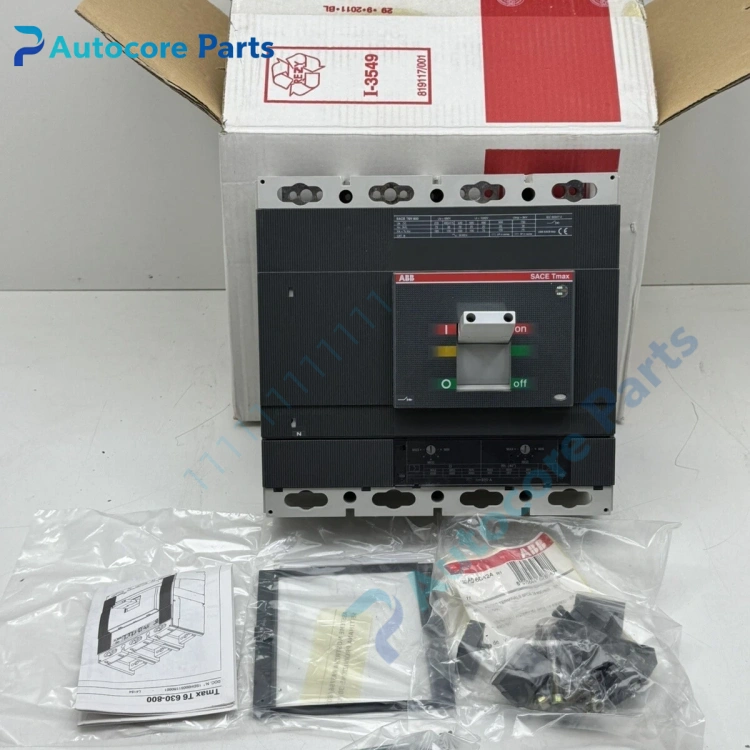

ABB 1SDA060222R1 T6N Molded Case Circuit Breaker

Feature & Principle

Equipped with TMA thermal magnetic trip unit. Thermal section provides adjustable overload protection, magnetic section realizes short-circuit instantaneous protection. It can quickly cut off fault current when overload or short circuit occurs. Flame retardant housing, front terminal connection design, suitable for main and branch circuit protection of industrial power distribution system.

Specifications

Model: 1SDA060222R1 Brand: ABB Series: SACE Tmax T6N Pole: 4P Rated current: 800 A Rated voltage: 690 V AC Breaking capacity Icu: 36 kA @415V AC Trip unit: TMA thermal magnetic Mounting: Fixed type Terminal: Front terminals Frequency: 50/60Hz Certification: CE, IEC

Components & Diagnostics

Main contact group, arc extinguishing chamber, TMA trip unit, operating mechanism, front wiring terminals. Common faults: terminal overheating, contact ablation, false tripping, trip unit failure, operating handle stuck.

Product Brief

1SDA060222R1 molded case circuit breaker, ABB power distribution spare widely used for industrial switch cabinet, workshop power supply and commercial distribution system maintenance and replacement.
