ABB 3BSE042236R1 PP865 Touch Screen Operator Panel

Technical Specifications

Model:3BSE042236R1(PP865)

Brand:ABB

Product Type:Panel800 series touch screen operator panel

Display:12.1‑inch TFT‑LCD,800×600 resolution,CCFL backlight

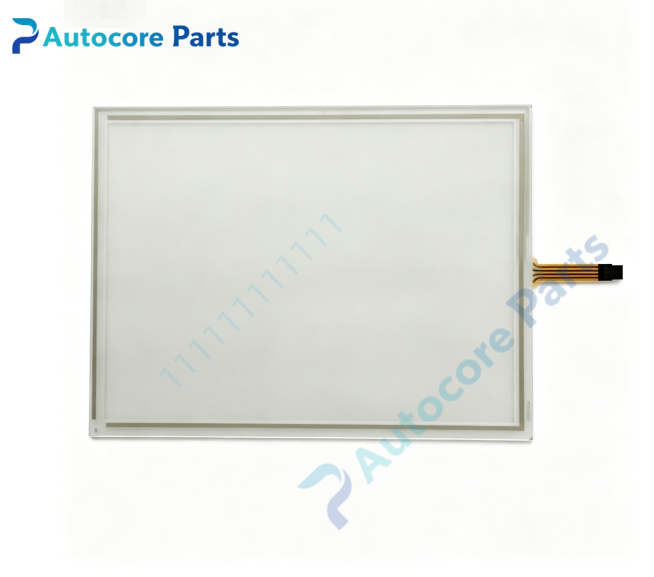

Touch Type:Analog resistive touch screen

Power Supply:24VDC(18‑30VDC)

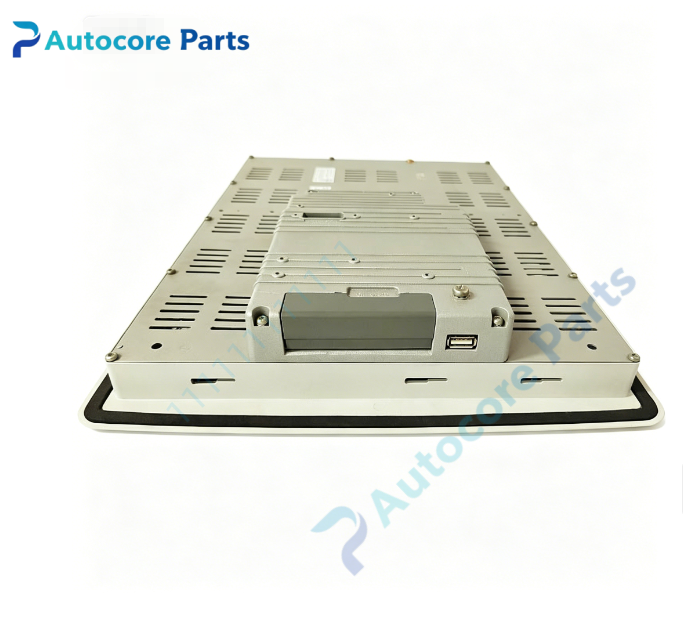

Communication Interface:Ethernet,USB,RS232 serial port

Function:Process graphic display,parameter modification,on‑site manual operation,fault alarm display,real‑time data monitoring

Feature:Front‑panel IP65 protection,panel mounting,Panel Builder configuration software support

System Compatibility:ABB System 800xA DCS control system

Remark:Legacy EOL spare component;confirm project firmware version before replacement

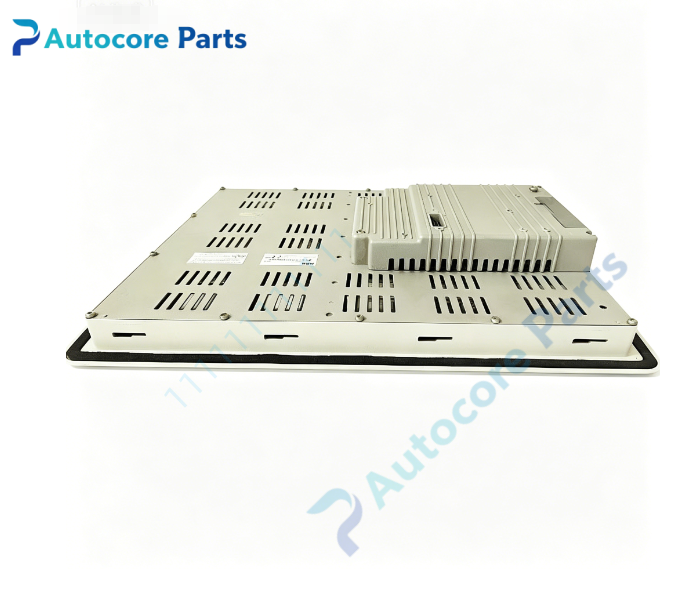

Module Form:Panel‑mount integrated HMI unit

Weight:2.40 kg

Dimension:345 mm×265 mm×62 mm

Protection Grade:Front IP65,Rear IP20

Certification:CE

Working Temperature:0℃ ~ +50℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑85% non‑condensing

Application:Petrochemical,power plant,papermaking,metallurgy industry,serve as local operation monitoring unit for System800xA DCS,complete field process monitoring,parameter adjustment,fault information checking,equipment overhaul and spare‑part replacement.

Product Details

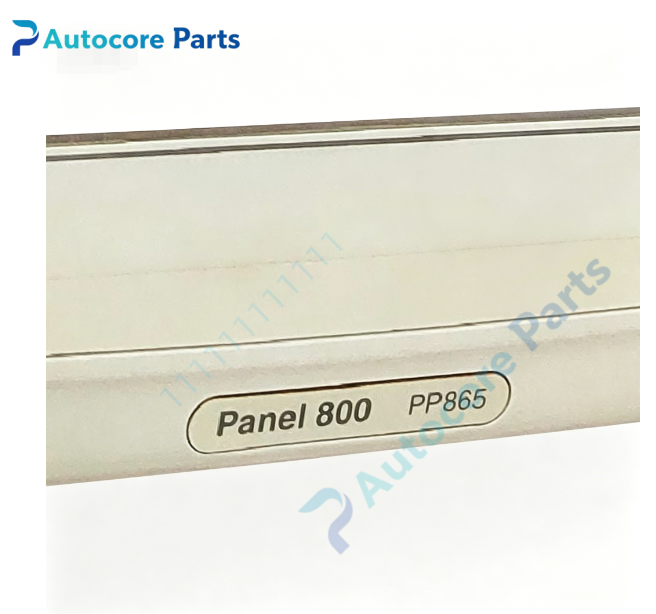

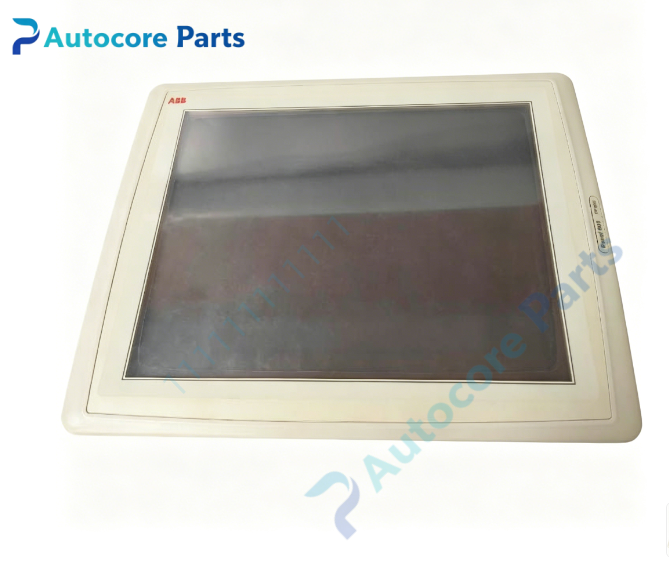

3BSE042236R1,type PP865,is ABB Panel800 series 12.1‑inch touch‑screen operator panel,specially supporting System 800xA DCS platform.

Adopts 800×600 TFT‑LCD display with resistive touch,front‑panel IP65 rating adapts to workshop harsh environment. Equipped with Ethernet,USB and RS232 ports,connects to DCS controller for process picture display,loop parameter setting,alarm query and local manual operation. Configured by Panel Builder software. HMI failure will cause local operation failure,unable to view real‑time field data. Widely used for old‑generation 800xA project transformation and spare‑part replacement.

Note:This is legacy EOL spare component,widely used for process industry spare‑part replacement.
