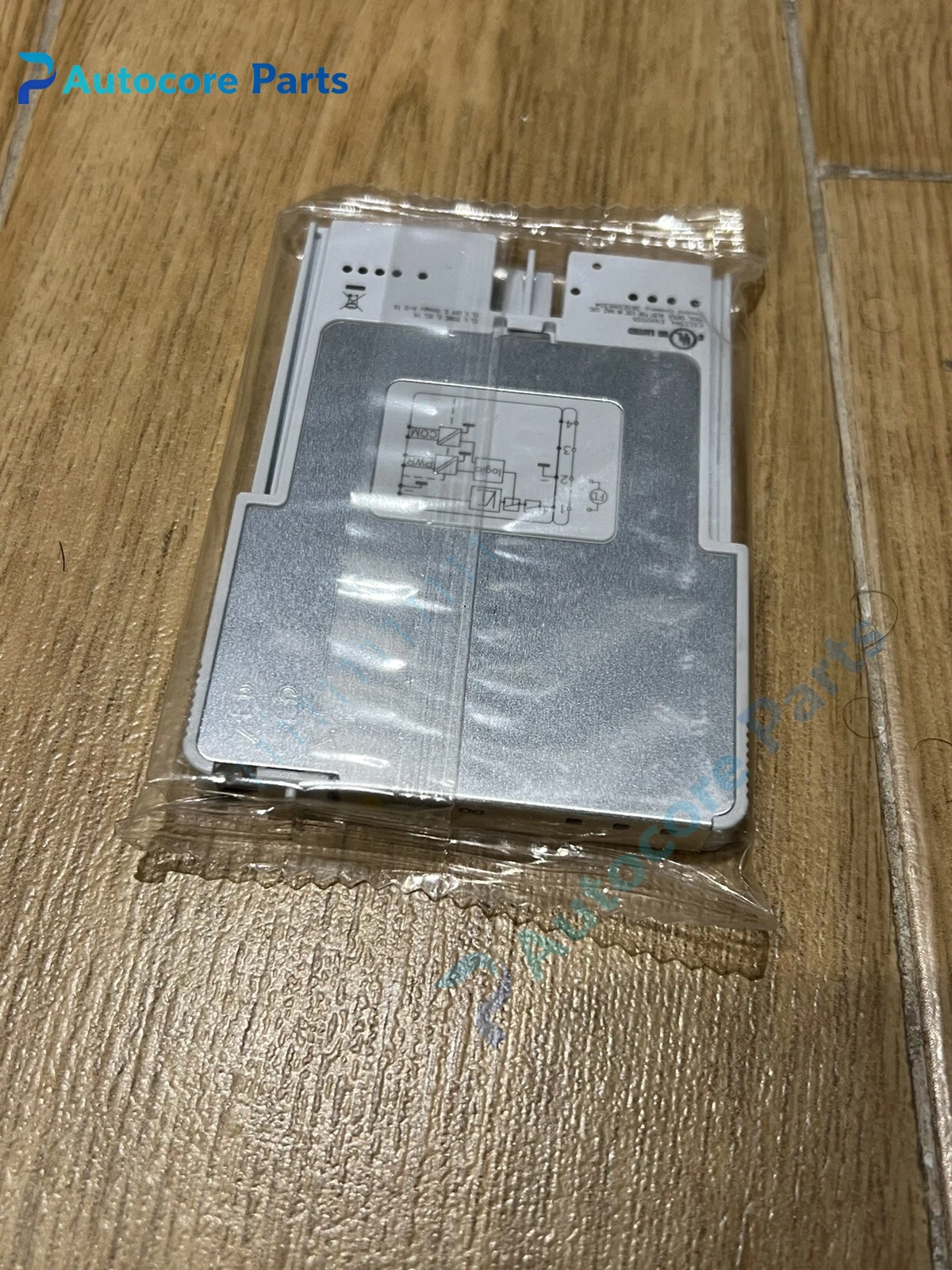

ABB 3BSE074057R1 DIS880 Digital Input Module Unit

Module Feature

3BSE074057R1 is the part number of ABB DIS880 high integrity digital input module under Select I/O family, compatible with ABB Ability System 800xA DCS platform.

It is single-channel granular design, supports 2-wire, 3-wire and external powered 4-wire field devices, including dry contact and proximity sensors. It is certified to IEC61508 SIL3, suitable for safety instrumented system signal acquisition. Built-in SOE sequence of event high precision time stamp function for accident event tracing. It supports hot-swap replacement, channel current limiting and short-circuit protection, galvanic isolation for heavy EMC environment. It can be configured for redundant application, widely stocked as maintenance spare for petrochemical, power plant and oil & gas SIS safety cabinet.

Working principle

The module detects the on-off status of field safety contact or sensor signal.

After signal conditioning and isolation, the status and high precision time stamp data are transmitted to 800xA controller via Select I/O Ethernet bus. The continuous channel diagnosis circuit monitors wiring open, short and signal abnormality, uploads diagnostic alarm to controller and HMI. When dangerous fault is detected, the module reports fault status for safety logic response.

Onboard components

Bus communication transceiver, safety logic CPU, galvanic isolation optocoupler, signal conditioning circuit, SOE timestamp unit, channel fault detection circuit, status LED array, terminal block and coated PCB.

LED indicators

Green LED: module power and run status Yellow LED: input channel active Red LED: fault / diagnostic trouble

Hardware self‑diagnosis

Built-in supervision detects bus communication loss, channel short/open circuit, internal hardware fault and power supply abnormality. Configuration and fault diagnosis are completed by ABB Control Builder M.

Programming softwareControl Builder M, used for signal type definition, SOE time sync configuration, safety parameter setting and event log reading.

Electrical & Process Parameters

Model:3BSE074057R1 Brand:ABB Device type:DIS880 SIL3 high integrity digital input module Function:Safety digital signal acquisition and SOE time stamp for SIS field sensors and contact signals

Mechanical & Structure

Mounting:Select I/O rack plug-in installation Protection class:IP20 Housing:Flame retardant plastic housing with metal front plate

Environmental

Operating temperature:-40℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, IEC61508 SIL3, IEC61131 Status:Original ABB SIS safety I/O spare

Installation

Lock the safety loop and follow SIS work procedure before replacement. Confirm field wiring and sensor type, download safety configuration, test signal capture, SOE timestamp and channel fault detection function after commissioning.

Interface

Select I/O Ethernet bus terminals, 24V DC field signal wiring terminals.

Diagnostic

No status change: Field contact failure, wiring open, wrong signal definition. Trouble alarm: Channel short circuit, overcurrent, hardware fault. Offline fault: Communication loss, backplane contact poor.

Product Brief3BSE074057R1 module, ABB DIS880 SIL3 single-channel digital input spare for System 800xA Select I/O SIS cabinet replacement.
