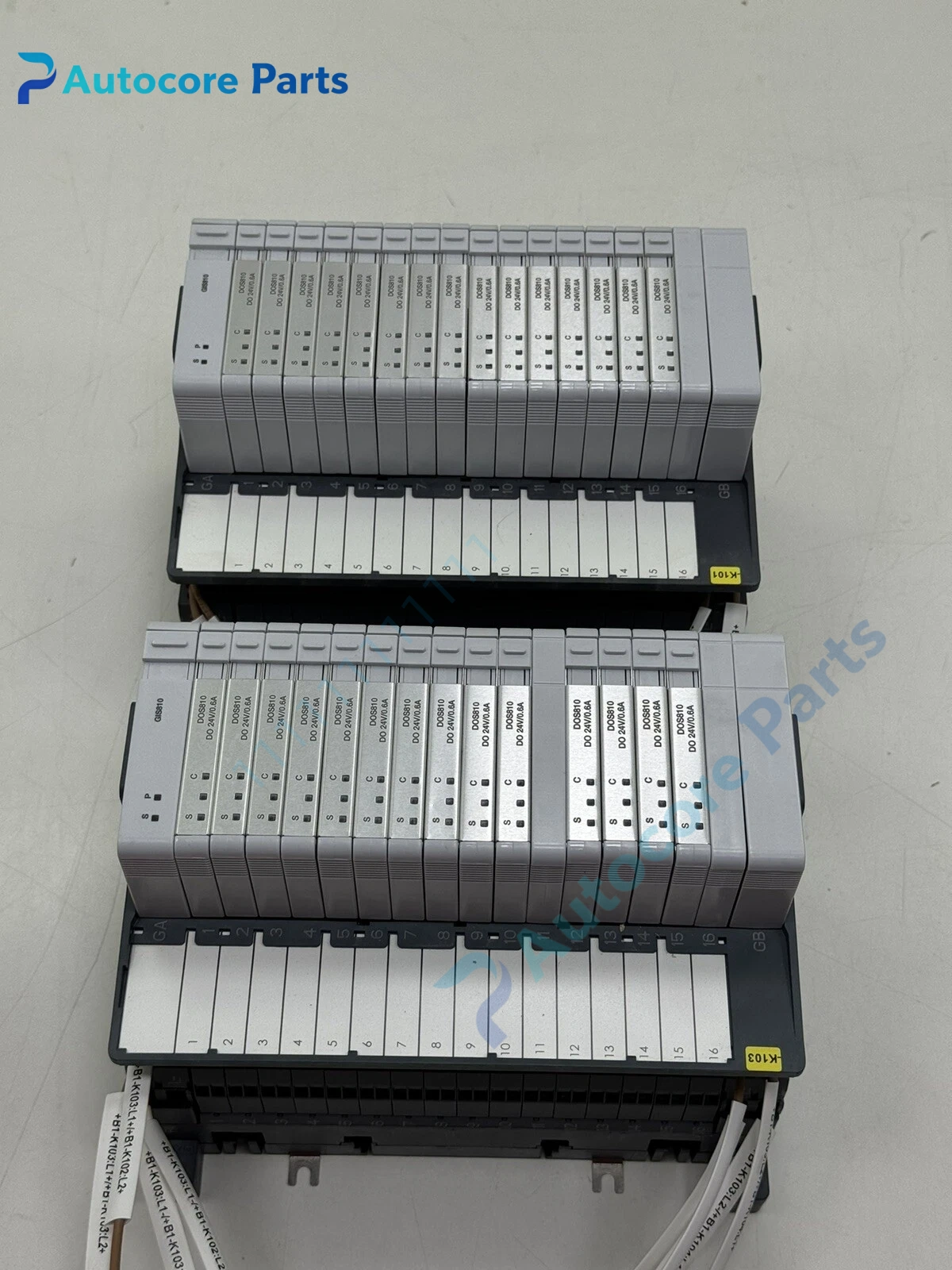

ABB 3BSE078740R1 Terminal Base Unit

Module Feature

3BSE078740R1 is a terminal base unit for ABB S800 I/O series.

It provides field wiring terminals and mechanical carrier for corresponding S800 I/O modules. It supports hot swap function of I/O modules, built-in signal wiring terminals and backplane bus connector. It is widely used in ABB AC800M DCS system for chemical, pulp and power plant control cabinet signal connection.

Working principle

Field instrument wires are terminated on the terminal base.

Signals are transmitted to the plugged I/O module through internal bus contacts. The terminal base provides mechanical fixation and wiring interface, and realizes bus communication between I/O module and controller.

Onboard components

Screw terminal block, backplane bus connector, metal mounting bracket, locking mechanism.

LED indicators

No independent LED on this terminal base, status indicators are on the matched I/O module.

Hardware self‑diagnosis

Diagnosis is completed by the matched I/O module and DCS controller, to detect loose contact and bus communication fault.

Programming software

Control Builder M, used for DCS hardware configuration and signal commissioning.

Electrical & Process Parameters

Model:3BSE078740R1 Brand:ABB Device type:S800 I/O terminal base System:AC800M DCS Function:Field signal wiring and I/O module mounting

Mechanical & Structure

Mounting:DIN rail installation inside control cabinet

Protection class:IP20

Housing:Plastic + metal bracket

Environmental

Operating temperature:-20℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Ambient humidity:5~95% non‑condensing

Certification:CE

Status:Original ABB DCS spare

Installation

Clip the base firmly on standard DIN rail.

Wire field cables to terminals according to drawing, lock the I/O module onto the base, test bus communication after power on.

Interface

Field wiring terminal, internal backplane bus connector.

Diagnostic

Module no communication: Poor bus contact, loose base locking.

No field signal: Terminal screw not tightened, broken field wire.

Hot swap failure: Damaged base contact pin.

Product Brief

ABB 3BSE078740R1 S800 I/O terminal base, wiring carrier for AC800M DCS I/O modules.
