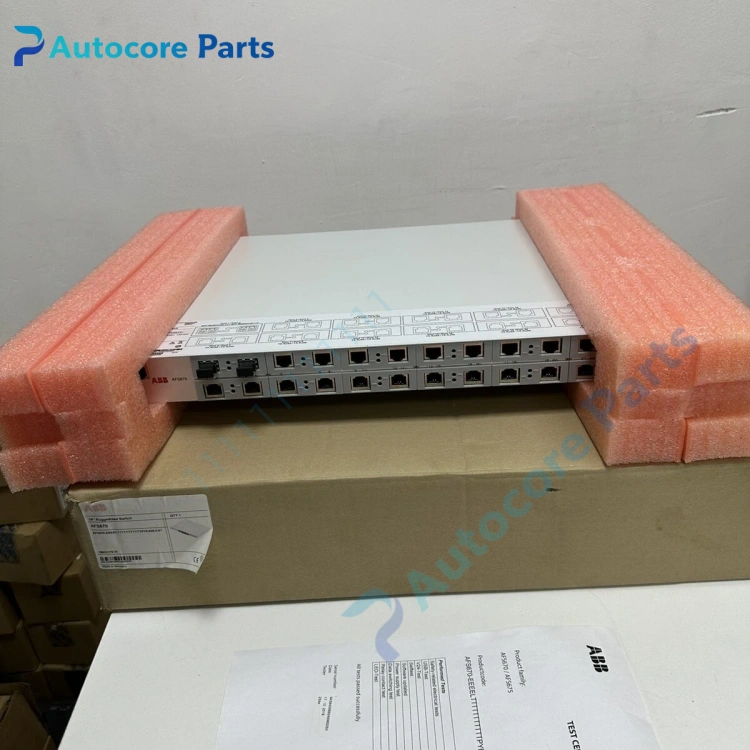

ABB AFS670 FOX Managed Industrial Switch Unit

Feature & Principle

This hardened managed switch forwards Ethernet data frames, supports IEC61850, RSTP/STP ring redundancy, VLAN, QoS and GMRP. It adopts wide temperature and anti-interference design, ensures reliable real-time communication for protection relay, PLC and bay control units in substation.

Specifications

Model: AFS670 Brand: ABB Series: FOX AFS Mounting: 19 inch rack Port configuration: Mixed SFP optical ports + RJ45 copper ports Protocol: IEC61850, RSTP, Modbus TCP Operating temperature: Wide range industrial grade Power supply: Dual redundant DC power input Protection: IP30 Certification: IEC61850, KEMA, CE

Components & Diagnostics

Switch mainboard, SFP optical slots, RJ45 PHY chip, redundant power module, status LED indicators. Common faults: port link down, ring network split, power failure, optical module recognition failure.

Product Brief

AFS670 industrial Ethernet switch, ABB power automation spare widely used in high voltage substation, energy and utility communication systems.
