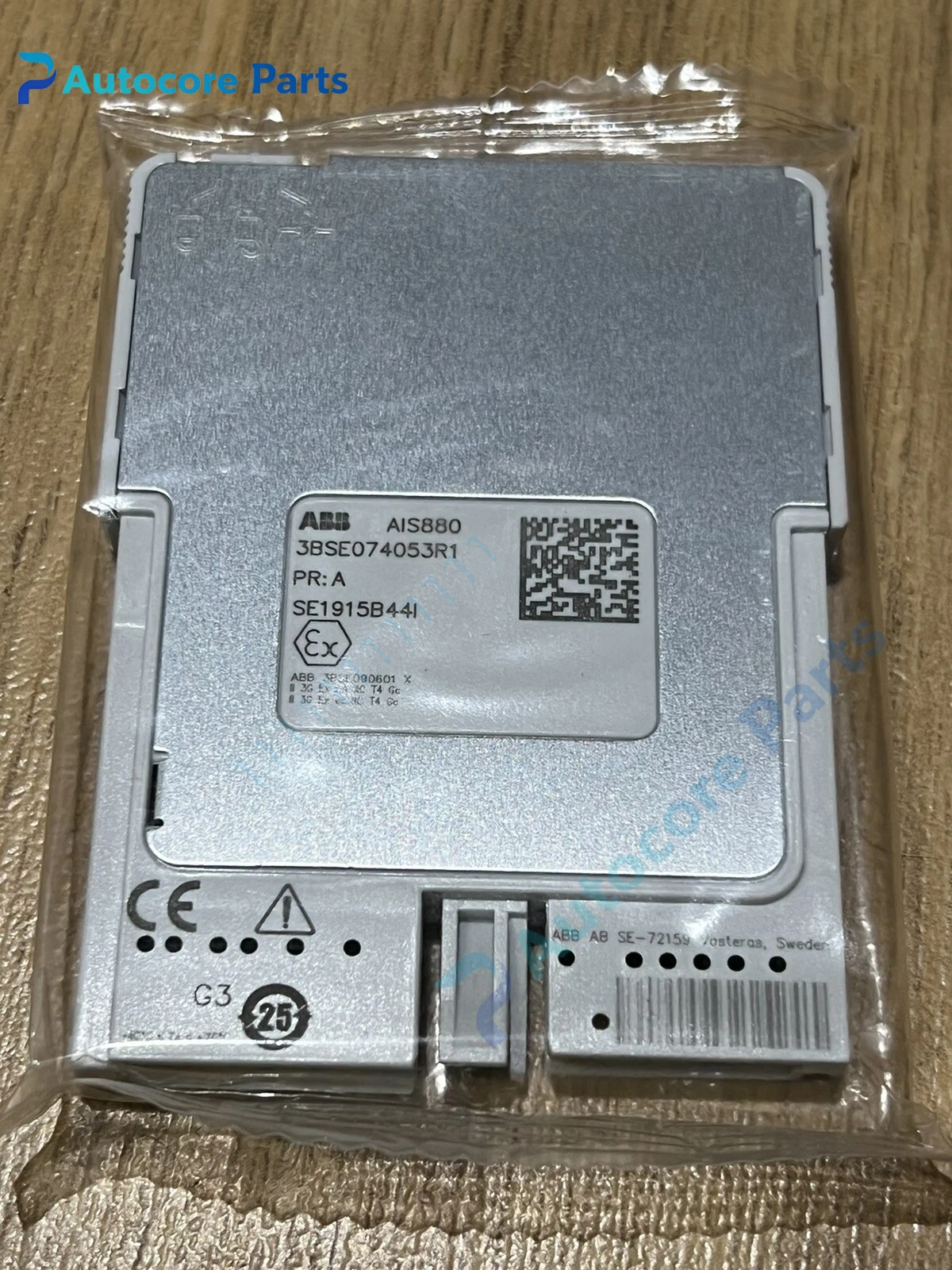

ABB AIS880 3BSE074053R1 Analog Input SCM Unit

Module Feature

3BSE074053R1 is ABB AIS880 high integrity signal conditioning module (SCM) of Select I/O family for System 800xA DCS.

Single channel 4–20mA analog input, supports 2-wire and 4-wire HART transmitters, HART V7 pass-through and secondary variable reading. SIL3 safety certified for safety instrumented system. It supports hot swap, built-in field loop disconnect slider and electronic current limiting. It is installed in MTU termination base TUS810K01, can be configured single or redundant mode. Widely used for refinery, chemical and power plant safety & control loop spare.

Working principle

The module samples 4–20mA analog signal from field HART transmitter.

Internal 16-bit ADC converts analog signal into digital value and transmits to 800xA controller via Modulebus. HART modem extracts digital HART data from the same current loop. Continuous loop supervision detects open circuit, short circuit and out-of-range. The mechanical disconnect function isolates field wiring for maintenance without removing the whole MTU rack.

Onboard components

Signal sampling circuit, 16-bit ADC, HART modem chip, galvanic isolation circuit, Modulebus communication interface, field disconnect slide switch, status LED bank and compact PCB housing.

LED indicators

Front LEDs indicate power, run, field loop fault, communication and module health status.

Hardware self‑diagnosis

Built-in supervision detects loop open/short, overcurrent, modulebus communication loss, internal power fault and ADC failure. Configuration and fault diagnosis are completed by ABB Control Builder M / 800xA engineering workplace.

Programming softwareControl Builder M, used for channel range, HART mapping, safety parameters, redundancy setting and fault log reading.

Electrical & Process Parameters

Model:3BSE074053R1 Brand:ABB Device type:AIS880 Select I/O Analog Input SCM Function:4-20mA + HART signal acquisition for safety and control loop, SIL3 rated

Mechanical & Structure

Mounting:Plug-in into TUS810 MTU termination unit Protection class:IP20 Housing:Compact plug-in SCM module

Environmental

Operating temperature:-40℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, IEC61508 SIL3 Status:Original ABB 800xA DCS safety I/O spare

Installation

Isolate field loop and Modulebus power before replacement.

Insert into correct MTU slot, use mechanical coding to prevent wrong module, engage field disconnect slider before wiring work, download I/O configuration, test 4-20mA and HART communication after commissioning.

Interface

Modulebus backplane interface, field terminal via FTB field terminal block for 4-20mA HART loop.

Diagnostic

Loop fault alarm: Transmitter power loss, wire open/short or loop impedance out of range. HART no communication: Wrong loop resistor, wiring polarity or HART device fault. Module offline: MTU power loss, Modulebus failure or incompatible firmware.

Product Brief

3BSE074053R1 AIS880 module, ABB Select I/O SIL3 single-channel 4-20mA HART analog input spare for System 800xA DCS safety control cabinet replacement.
