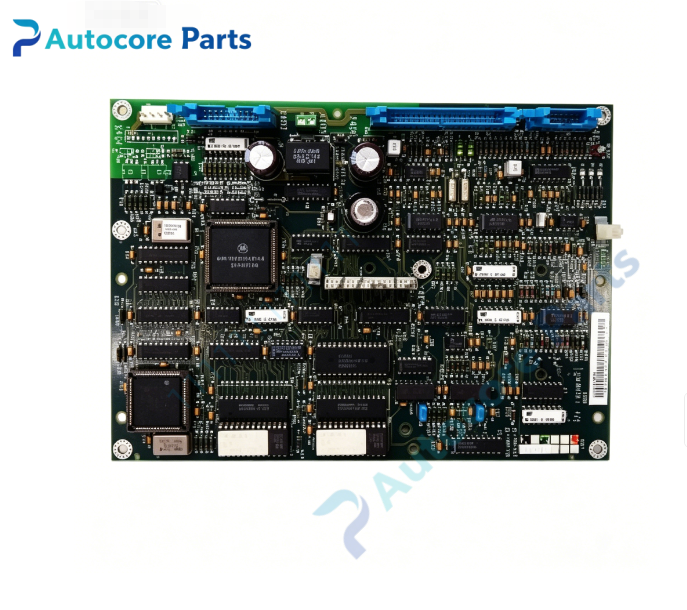

ABB BVC1HRA011802P Servo Drive

Technical Specifications

Model:BVC1HRA011802P

Brand:ABB

Alias:Bivector535‑18

Product Type:AC servo drive,Bivector500‑535 series

Main input voltage:3×400‑480V AC 50/60Hz

Auxiliary supply:230V AC single‑phase

Rated continuous output current:18A

Peak output current:36A

Control mode:Torque / Speed / Position control,field‑oriented vector control

Feedback support:Resolver

Interface:RS232,RS485 serial port,Digital I/O,Analog input/output,brake resistor terminal

Communication:Serial port for parameter setting,status monitoring

Weight:12.50 kg

Dimension:420mm×225mm×155mm

Operating Temperature:5℃ ~ +40℃

Storage Temperature:-20℃ ~ +70℃

Humidity:5%‑95% non‑condensing

Feature:Vector control algorithm,on‑board fault memory,motor auto‑tuning,support external brake resistor,200% short‑time overload capability

System Compatibility:ABB 8C series brushless servo motors,machine tools,packaging,wood‑working automation equipment

Remark:Legacy EOL spare component;require separate 230V auxiliary power supply,match resolver‑type 8C servo motor before replacement.

Product Details

BVC1HRA011802P (Bivector535‑18) belongs to ABB Bivector500‑535 series high‑current AC servo drive.

Adopts field‑oriented vector control,support torque, speed and position control modes,resolver feedback interface for 8C series brushless servo motors. Requires independent 230V single‑phase auxiliary power supply;reserve brake resistor interface for heavy‑duty deceleration scenarios. Built‑in fault memory and auto‑tuning function,200% short‑term overload capacity,widely used in machine tools,packaging and wood‑working production lines. Drive failure will cause motor alarm,stall and equipment shutdown,mainly used for old‑site overhaul and spare‑part replacement.
