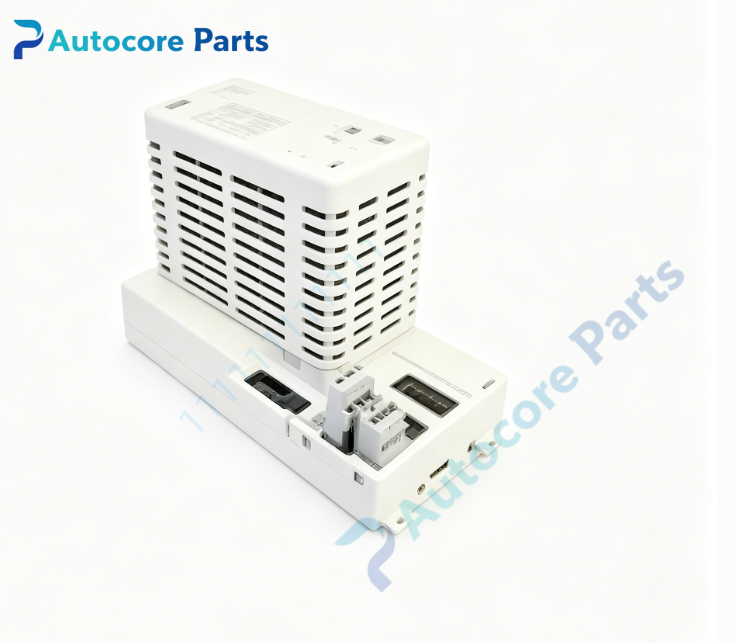

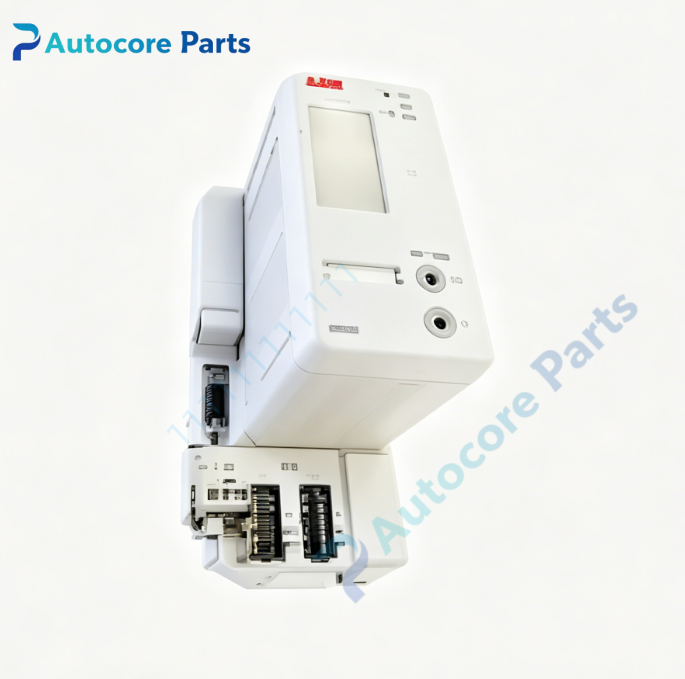

ABB CI810V1 3BSE008584R1 AF100 Fieldbus Communication Interface Module

Technical Specifications

Model: CI810V1

Part Number: 3BSE008584R1

Brand: ABB

Product Type: AF100 fieldbus communication interface module

Matching System: ABB Advant OCS, 800xA DCS System

Power Supply: Rack backplane 24VDC

Communication Interface: AF100 optical fieldbus port

Transmission Rate: 1.5 Mbps

Max Nodes: Up to 64 AF100 remote I/O nodes

Installation Method: Rack slot mounting, hot‑swap supported

Operating Temperature: ‑20℃ ~ +60℃, non‑condensing

Protection Class: IP20

Weight: 0.45kg

Dimension: 170mm ×84mm ×121mm

Compatible System: Power plant DCS, chemical, papermaking legacy process control cabinet

Core Function: AF100 optical fieldbus interface module for Advant OCS and 800xA DCS system. It establishes optical‑isolated data link between controller and AF100 remote I/O stations, collects field analog & digital signals and issues control output commands, guarantees stable real‑time data transmission for distributed remote I/O system.

Product Details

The CI810V1 3BSE008584R1 is AF100 optical fieldbus communication interface module for ABB Advant OCS and 800xA DCS control system.

This older‑generation CI810V1 module adopts optical AF100 bus design, connects to controller backplane bus and acts as main gateway for AF100 remote I/O network. It supports up to 64 AF100 remote I/O nodes, realizes bidirectional real‑time data exchange between DCS controller and distributed field I/O units. Field process signals are uploaded to controller, while control instructions are transmitted down to field stations through optical bus, effectively suppressing industrial site electromagnetic interference.

It supports hot‑swap function, modules can be replaced online without DCS system shutdown. Front‑panel LED indicators display power status, bus link and fault alarm information for quick field troubleshooting. Built‑in bus diagnosis function can detect bus failure, remote station dropout and communication error, and feed alarm information back to DCS controller.

Conformal coated circuit board improves anti‑interference, moisture‑proof and dust‑proof performance, adapts to harsh industrial workshop environment.

Widely used in maintenance and renovation projects of legacy Advant OCS AF100 DCS system in power, chemical and papermaking industries.

It is important spare hardware for AF100 fieldbus loop debugging and defective CI810V1 module replacement.
