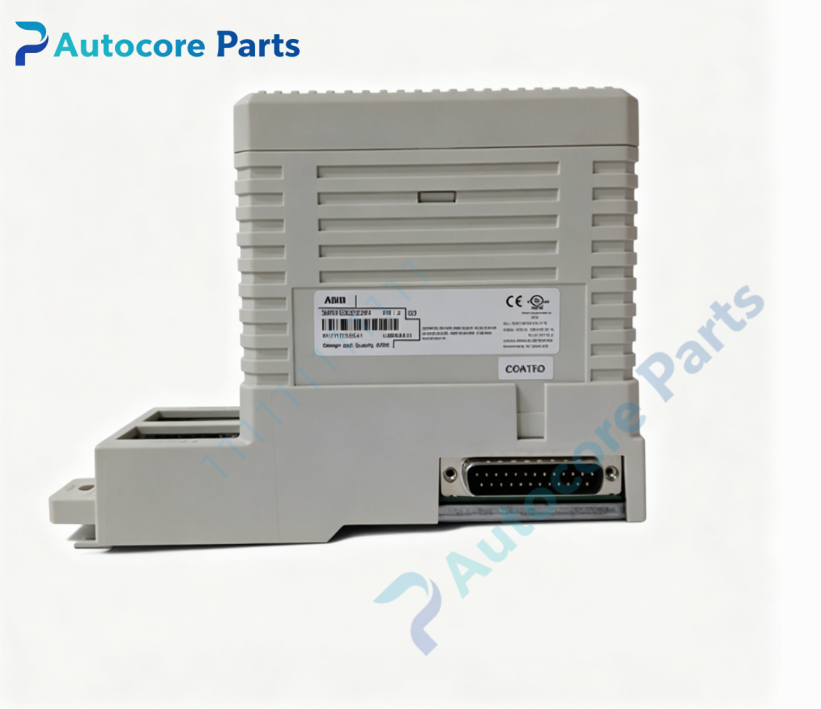

ABB CI854AK01 3BSE030220R1 PROFIBUS‑DP/V1 Communication Interface Kit

Technical Specifications

• Model: CI854AK01

• Part Number: 3BSE030220R1

• Brand: ABB

• Product Type: PROFIBUS‑DP/V1 master communication interface complete kit

• Kit Composition: CI854A communication module, TP854 baseplate

• Communication Protocol: PROFIBUS‑DP‑V0 / V1

• Bus Connector: Dual 9‑pin DB‑9 female connectors, support PROFIBUS line redundancy

• Baud Rate: 9.6 kbit/s ~ 12 Mbit/s adaptive

• Backplane Bus: CEX‑Bus, maximum 12 modules per controller

• Max Nodes: Up to 99 PROFIBUS‑DP slave stations

• Feature: Support hot‑swap, line redundancy and master redundancy configuration

• Power Consumption: Typical 190 mA, powered via CEX‑Bus

• Operating Temperature: ‑20℃ ~ +60℃, non‑condensing

• Protection Class: IP20

• Dimension: 127.5 mm × 185 mm × 59 mm

• Weight: 0.59 kg

• Mounting: DIN rail rack‑slot mounting

• Compatible System: ABB AC800M DCS, System 800xA

• Core Function: Work as PROFIBUS‑DP master station, realize data interaction between AC800M controller and PROFIBUS‑DP slave devices, support redundant fieldbus network

Product Details

The CI854AK01 3BSE030220R1 is a high‑performance PROFIBUS‑DP Master Module for ABB AC800M DCS platform, it is reliable AC800M Fieldbus Interface Unit for connecting remote I/O, drives and field instruments over PROFIBUS‑DP fieldbus. The complete set consists of CI854A communication board and matching TP854 baseplate.

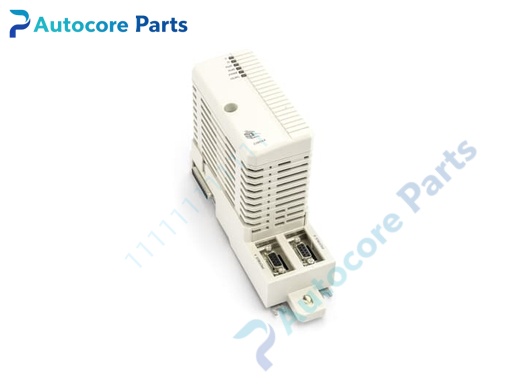

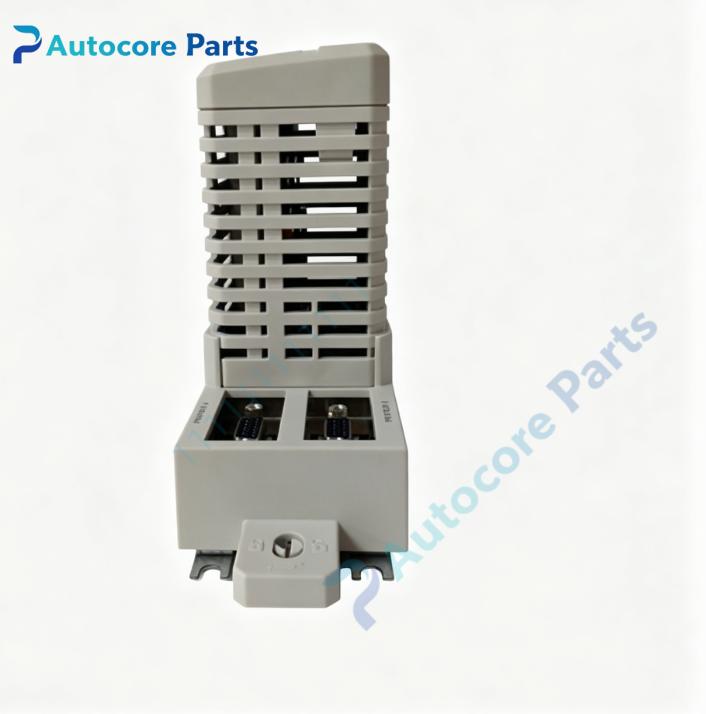

Dual DB‑9 PROFIBUS ports support physical line redundancy, effectively avoid single‑cable failure risk. Operating as PROFIBUS‑DP master, it can connect up to 99 slave devices such as S800 remote I/O, frequency converters and third‑party field instruments. It exchanges cyclic process data with AC800M main CPU through CEX‑Bus backplane bus. The module supports hot‑swap replacement without rack power‑off, and can cooperate with CPU redundancy to build full redundant control system for critical process plants.

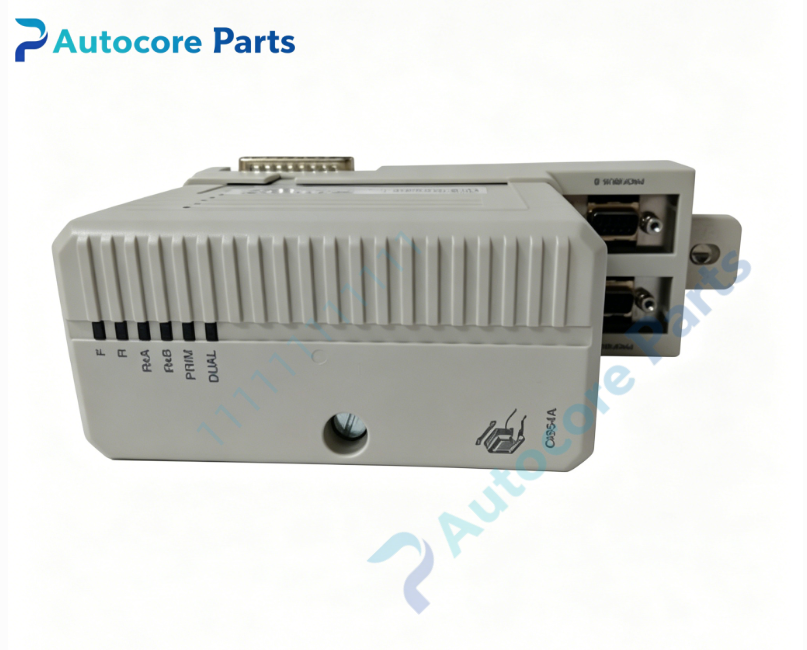

Front‑panel LED indicators show power supply status, CEX‑Bus link and PROFIBUS bus communication condition. Built‑in hardware self‑diagnosis can detect bus short‑circuit, communication interruption and module internal faults, and upload alarm information to DCS operator workstation. Industrial‑grade circuit design meets strict EMC anti‑interference requirements for heavy‑industry cabinet environment.

Standard DIN rail rack‑slot mechanical structure, widely applied in thermal power, petrochemical, pulp‑paper and metallurgy industries. It is key fieldbus communication hardware for PROFIBUS network construction, remote I/O expansion and defective communication module replacement for legacy AC800M automation projects.
