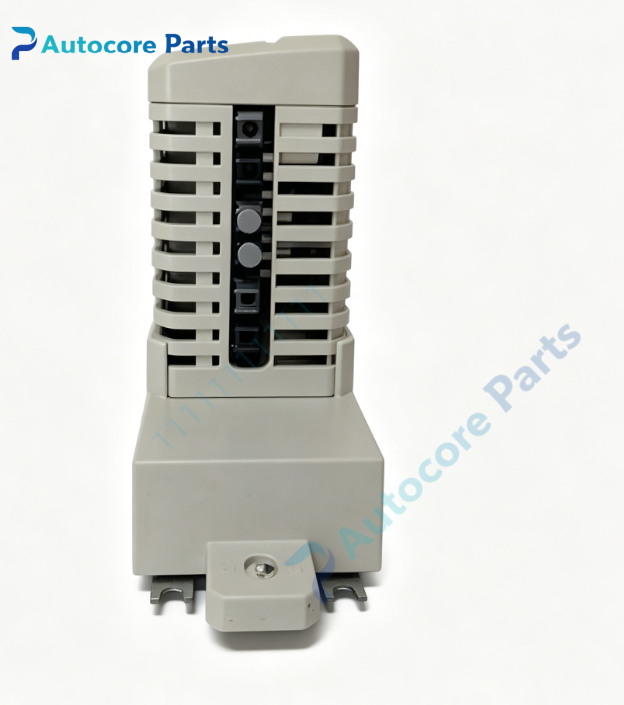

ABB CI858K01 3BSE018135R1 DriveBus Communication Interface Kit

Technical Specifications

Model: CI858K01

Part Number: 3BSE018135R1

Brand: ABB

Product Type: DriveBus drive‑special communication complete kit

Matching System: ABB AC800M Controller, 800xA DCS System

Kit Contents: CI858 communication module, TP858 baseplate

Power Supply: CEX‑Bus backplane 24VDC

Communication Interface: DriveBus dedicated drive interface

Transmission Rate: 4Mbps

Max Drives: Up to 24 ABB drive units

Installation Method: Rack slot mounting, hot‑swap supported

Operating Temperature: 5℃ ~ +55℃, non‑condensing

Protection Class: IP20

Weight: 0.49kg

Dimension: 74mm ×124mm ×44mm

Compatible System: Power plant DCS, metallurgy, papermaking, chemical drive control cabinet

Core Function: Dedicated DriveBus communication kit for AC800M DCS system. It realizes high‑speed real‑time data interaction between DCS controller and ABB series drives, transmits speed, torque, fault status and control commands, ensures fast and reliable data transmission between controller and drive equipment.

Product Details

The CI858K01 3BSE018135R1 is complete DriveBus communication kit for ABB AC800M and 800xA DCS control system.

This kit consists of CI858 communication main unit and matching TP858 baseplate, connects to AC800M CEX‑Bus backplane bus, specially used for connecting ABB internal drive equipment. It supports up to 24 drive devices, adopts dedicated DriveBus high‑speed protocol, can quickly read drive operating parameters, fault codes, and issue speed‑setting, start‑stop control instructions, realizing high‑efficiency coordinated control between DCS and drive system.

Hot‑swap function supports online module replacement without DCS system shutdown. Front‑panel LED indicators clearly display power, bus link and fault alarm information for quick field troubleshooting. Built‑in drive bus diagnosis function can detect bus failure and drive station dropout, and upload fault information to DCS controller.

Conformal coated circuit board enhances anti‑interference capability, adapts to complex electromagnetic environment of metallurgy, power plant and papermaking workshops. Compact rack‑mount structure saves cabinet inner space, convenient for inspection and maintenance.

Widely used in renovation and overhaul projects of power, metallurgy, chemical and papermaking DCS drive control system.

It is important spare hardware for DriveBus bus debugging and defective CI858K01 kit replacement.
