ABB CI868K01‑eA 3BSE048845R2 Communication Interface Module

Technical Specifications

Model: CI868K01‑eA

Part Number: 3BSE048845R2

Brand: ABB

Product Type: IEC61850 Ethernet communication interface kit

Matching System: ABB AC 800M controller, 800xA DCS system

Power Supply: 24VDC, typical 160mA

Communication Port: 2‑channel RJ45 Ethernet port

Support Protocol: IEC61850‑MMS, GOOSE

Installation Method: Rack slot installation, with TP868 baseplate

Operating Temperature: +5℃ ~ +55℃, non‑condensing

Protection Class: IP20

Weight: 0.20kg

Dimension: 119mm × 45mm × 102mm

Compatible System: Power plant substation automation, industrial distributed control system

Core Function: Realize IEC61850 protocol data interaction between AC800M controller and substation equipment, support MMS message transmission and GOOSE fast message, complete real‑time data collection and protection signal transmission for substation automation system.

Product Details

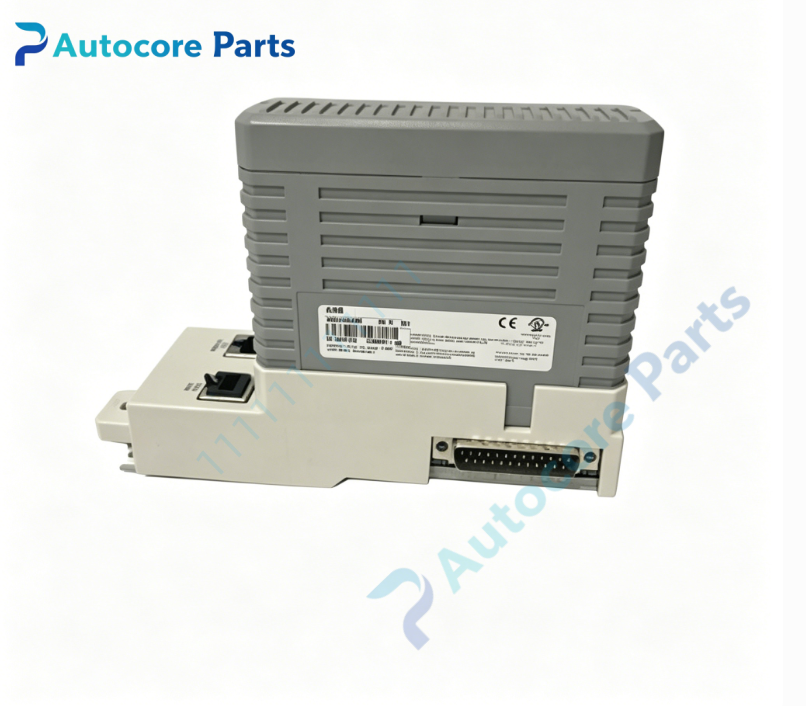

The CI868K01‑eA 3BSE048845R2 is IEC61850 communication interface kit for ABB AC800M controller and 800xA DCS system.

This communication module is equipped with dual Ethernet ports, supporting IEC61850 MMS and GOOSE communication protocols, realizing seamless docking between DCS control system and substation intelligent equipment.

It supports real‑time transmission of measurement data, protection events and interlock signals, meets high‑speed signal response requirements of power automation occasions.

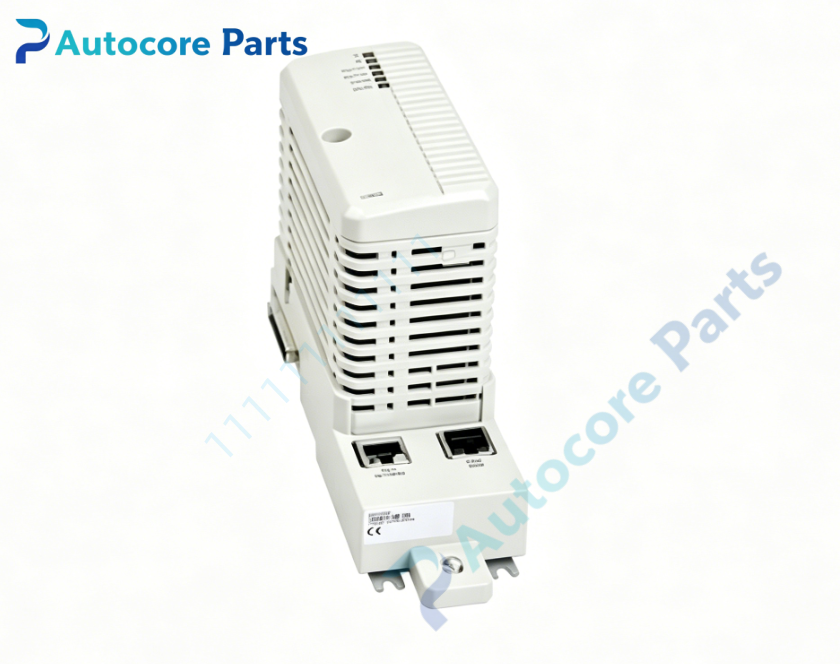

Front‑panel LED indicators display power supply, module running status and network link status, convenient for on‑site fault diagnosis.

It supports link redundancy function, effectively improves communication reliability of substation automation system.

Complete module kit includes communication main unit and TP868 baseplate, supports hot‑swap function, can be replaced online without system shutdown.

Widely applied in power plant DCS reconstruction, substation automation renovation and maintenance projects.

It is important spare hardware for communication loop debugging, network transformation and defective CI868K01‑eA module replacement.
