ABB Ekip Electronic Trip Unit

Feature & Principle

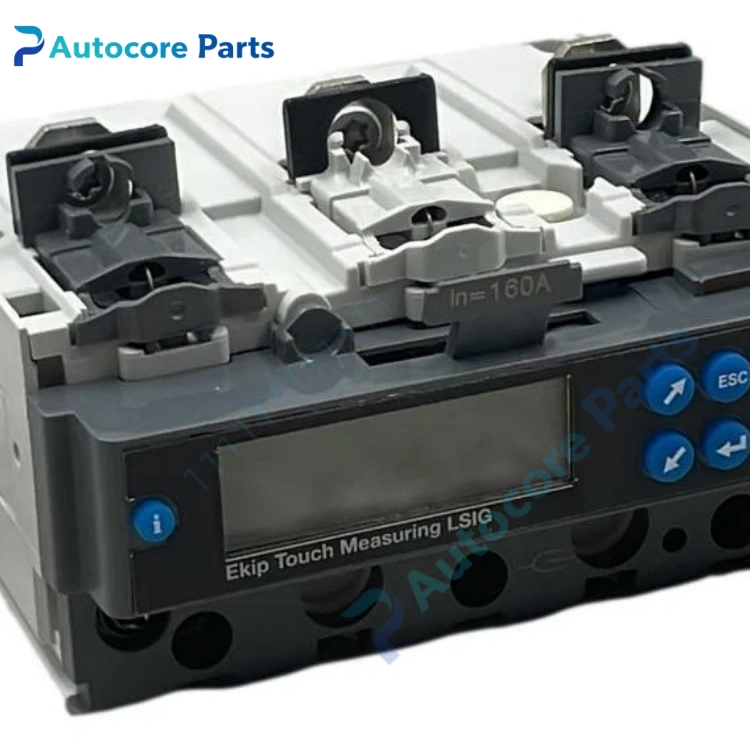

Ekip is ABB series intelligent electronic trip unit, matched with Emax2 air circuit breaker and Tmax XT molded case circuit breaker. It realizes overload, short-circuit, earth fault protection, supports power parameter measurement, harmonic monitoring, event recording. Optional Ekip COM communication module, upload data to SCADA and energy management system. It includes Ekip Dip, Ekip Touch, Ekip Hi-Touch and other models, widely used for industrial power distribution protection.

Specifications

Model: Ekip Brand: ABB Applicable breaker: Emax 2, Tmax XT Protection function: LS / LSI / LSIG, earth fault protection Communication: Modbus RTU/TCP, Profibus optional Versions: Dip, Touch, Hi-Touch, G Touch (generator) Application: Substation, industrial MCC, generator distribution cabinet Certification: CE, UL, IEC60947

Components & Diagnostics

Sampling circuit, main control chip, display panel, communication interface, status LED. Common faults: communication offline, measurement drift, false tripping, parameter loss.

Product Brief

Ekip electronic trip unit, ABB low voltage breaker intelligent protection spare widely used for power distribution cabinet overhaul and replacement.
