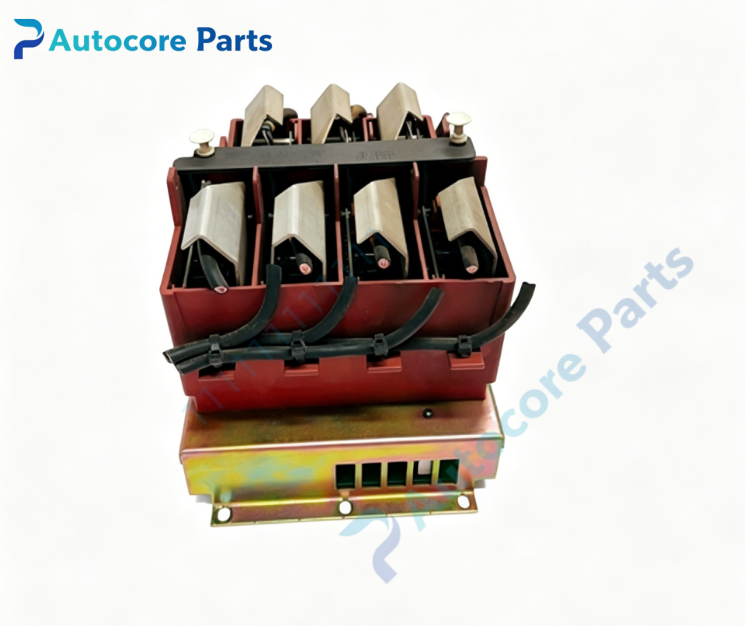

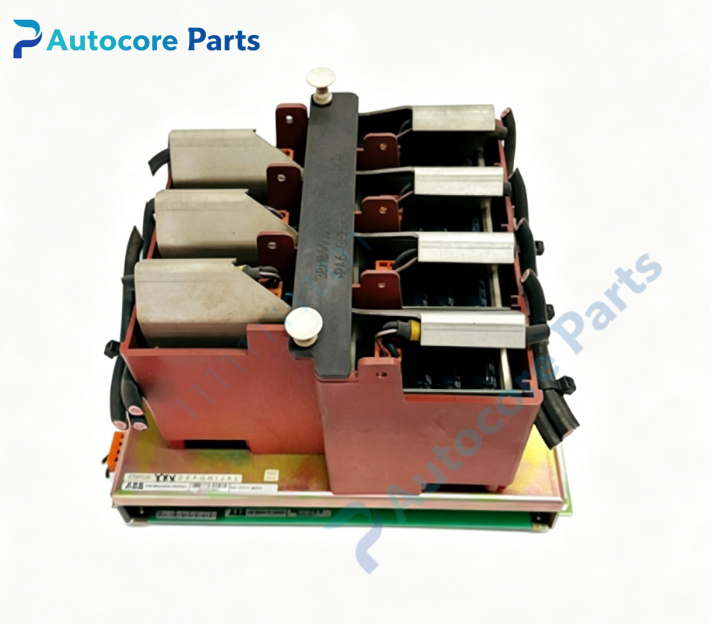

ABB KUC711AE 3BHB004661R0101 Redundancy Synchronization Module

Technical Specifications

Model: KUC711AE

Part Number: 3BHB004661R0101

Brand: ABB

Product Type: Optical fiber redundancy link unit

Communication Interface: Multi‑mode fiber port

Applicable Controller: AC 800M series CPU

Applicable System: ABB 800xA DCS

Hot‑swap Support: Yes

Operating Temperature: ‑20℃ ~ +60℃

Protection Class: IP20

Mounting: Rack‑mount installation

Core Function: High‑speed data mirroring between primary and standby controllers

Product Details

The KUC711AE 3BHB004661R0101 serves as the optical link module for ABB AC800M redundant controllers within the 800xA DCS ecosystem. It establishes high‑speed fiber channels to realize data mirroring between primary and standby controllers, which is vital hardware for achieving seamless switch‑over in high‑availability control architectures.

This unit uses multi‑mode fiber for data transmission instead of copper cables. Optical signal transmission can effectively cut off electromagnetic noise interference inside control cabinets caused by frequency converters and power units. Even under harsh industrial electromagnetic conditions, data consistency between dual controllers can remain stable. It supports hot‑swap operation, field technicians can replace the hardware without system power‑off, avoiding unnecessary production downtime for continuous‑process sites.

Once the primary controller encounters hardware failure or program execution abnormality, the data mirrored by this controller redundancy hardware allows the standby controller to take over all process logic instantly. Field I/O status, intermediate variables and alarm records will not be lost during switch‑over. Front‑panel LED indicators offer real‑time feedback for link status and fault clues, shortening the time for on‑site diagnosis and troubleshooting.

Designed for standard rack installation, it can be directly assembled in the AC800M controller rack and matches perfectly with main‑stream CPU variants. It is widely adopted in power generation, petrochemical and metallurgical facilities that pursue uninterrupted control. It is important hardware for DCS project commissioning, control cabinet upgrading and field component failure replacement.
