ABB PFEA111‑20 3BSE050090R20 Tension Electronics Unit

Technical Specifications

Model: PFEA111‑20

Part Number: 3BSE050090R20

Brand: ABB

Product Type: DIN‑rail mounted tension electronics amplifier unit

Matching System: ABB Pressductor PFTL / PFCL series strain‑gauge tension load cells

Power Supply: 24V DC (18‑36V DC)

Power Consumption: 8W

Load Cell Input: 2 channels for strain‑gauge tension sensors

Analog Output: Configurable 0‑10V or 4‑20mA tension signal output

Digital Input: 1 channel for remote zero function

Communication Interface: No field‑bus interface

Display: 2×16 character multi‑language LCD display

Installation Method: Standard DIN‑rail mounting inside control cabinet

Operating Temperature: ‑20℃ ~ +50℃, non‑condensing

Protection Class: IP20

Weight: 0.20kg

Dimension: 125mm × 75mm × 80mm

Compatible System: Paper, film, textile, printing and metal strip web processing production line

Core Function: Receive and process signals from two tension load cells, complete signal amplification and filtering, output standard tension measurement signals, support sum‑difference tension calculation, realize real‑time web tension monitoring for winding and unwinding processes.

Product Details

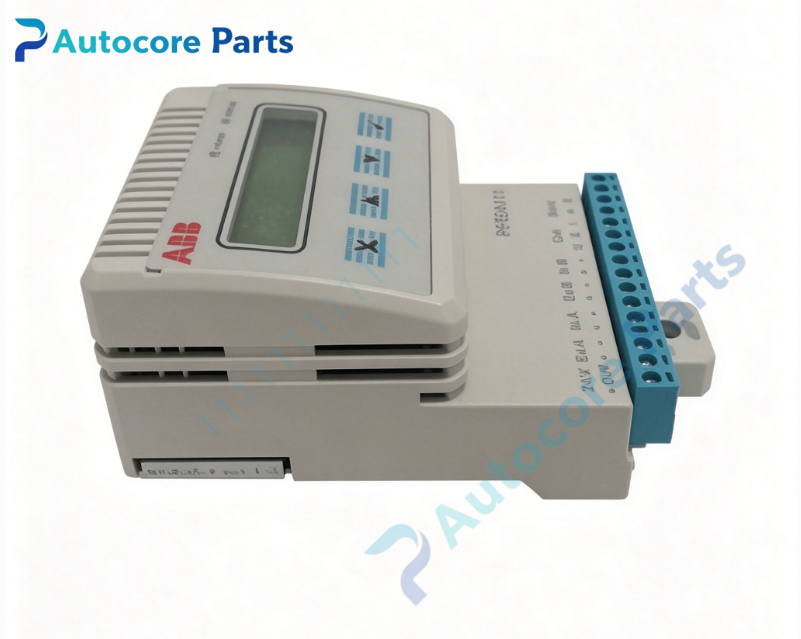

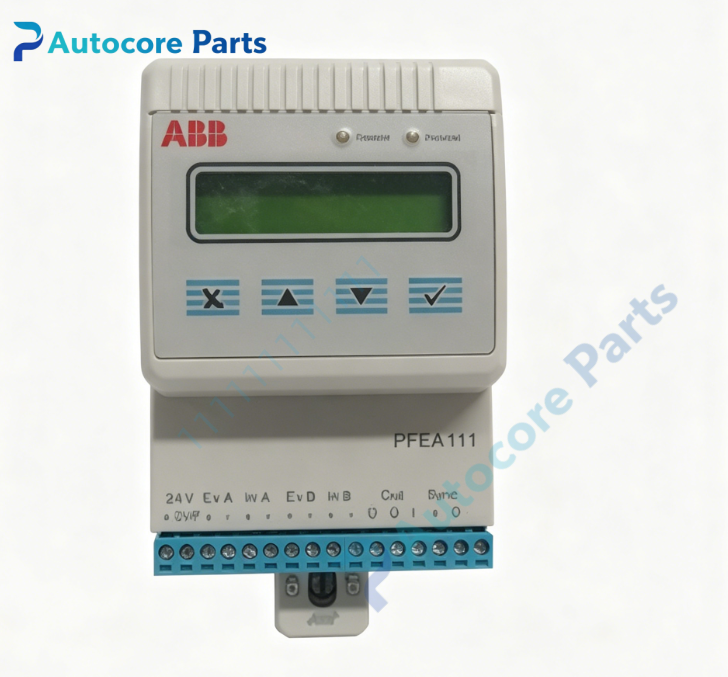

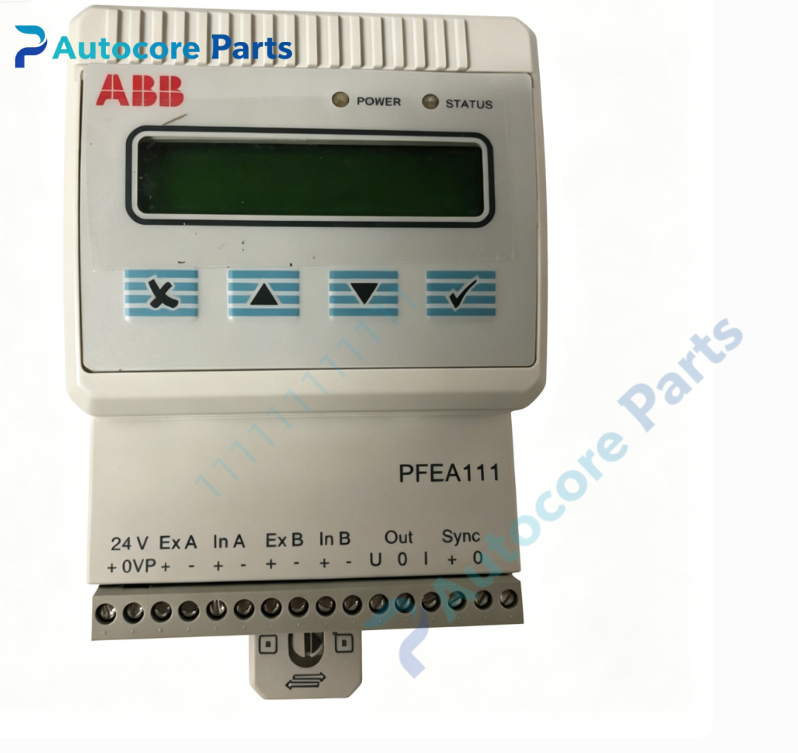

The PFEA111‑20 3BSE050090R20 is compact DIN‑rail‑mounted IP20 tension electronics unit of ABB Pressductor tension measurement system.

This PFEA111‑20 unit supports two‑channel strain‑gauge tension sensor input, designed for installation inside control cabinet.

It amplifies weak tension sensor signals and converts them into standard analog signals for PLC, drive and upper automation system.

It supports sum and difference tension calculation for dual‑sensor measuring points, signal transmission depends entirely on analog output without field‑bus communication function.

Built‑in multi‑language LCD display and operation keys allow local reading of tension value, parameter adjustment and fault status check.

Digital filtering function effectively suppresses field interference and improves measuring stability for high‑speed web production lines.

Built‑in hardware self‑diagnosis function can detect sensor breakage, cable fault and module internal abnormality, and trigger alarm output.

Compact DIN‑rail installation structure saves cabinet space, convenient for on‑site maintenance and replacement.

Widely applied in papermaking, plastic film, textile, printing and metal foil processing industries.

It is important spare hardware for web tension system renovation, sensor signal debugging and defective PFEA111‑20 unit replacement.
