Products Description
Technical Specifications
Model: PFSK160A, Part No:3BSE009514R1
Power Supply: 24V DC (±15%), typical power consumption 5.2W
Excitation Output: Precision sensor excitation output for Pressductor measuring roll
Signal Interface: Matched analog signal interface for flatness measuring system
Communication: AF100 internal system bus, interworking with PFSK130 / PFSK142 / PFSK151 / PFSK152
Isolation: Galvanic isolation 1.5kV AC between field side and back‑plane bus
Operating Temperature: ‑10℃ ~ +60℃; Storage temperature:‑40℃ ~ +85℃
Humidity: 5%‑95% RH, non‑condensing
Protection Class: IP20 (for cabinet internal installation)
Mounting: Sub‑rack plug‑in installation for ABB standard rack
Dimension: 242mm × 245mm ×22mm; Weight: approx 0.52kg

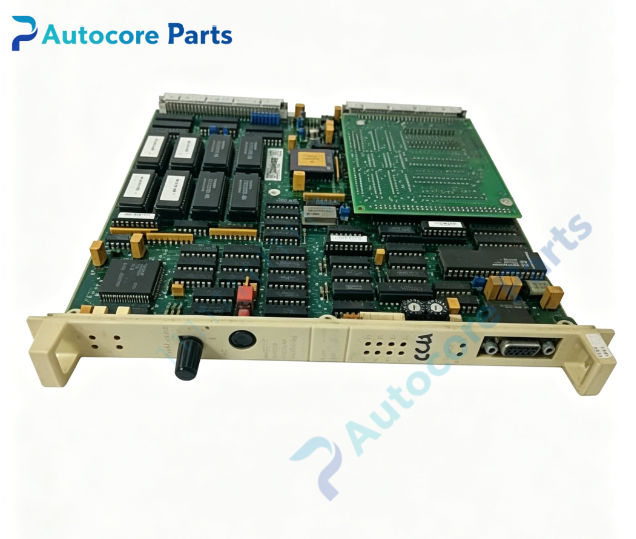

PFSK160A (3BSE009514R1) is a dedicated excitation and signal interface board for ABB Stressometer flatness measurement system, working cooperatively with PFSK‑series boards in metallurgical rolling lines.
This sub‑rack plug‑in board provides stable precision excitation power for Pressductor measuring‑roll sensors, and completes signal matching transmission for flatness detection signals. It adopts industrial‑grade anti‑interference circuit design, can resist electromagnetic interference and mechanical vibration from hot‑rolling and cold‑rolling workshops. On‑board LED indicators show power supply, running and fault status for fast on‑site troubleshooting.
It is widely applied in steel, aluminum and copper strip rolling production lines. When replacing spare parts, verify full part number and hardware revision to ensure system compatibility. Cut off system power before installation to avoid board burnout and measuring signal drift. Suitable for on‑site fault replacement and long‑term spare‑part stocking of existing Stressometer flatness control systems.
