Products Description
Technical Specifications
Model: PMA323BE (Part No: HIEE300308R1)
Series: UNITROL 5000 Generator Excitation System
Function: Thyristor firing pulse marshalling and distribution
Format: Standard 6U Eurocard, 19‑inch rack mounting
Input: High‑speed digital pulse signals from pulse frequency control unit
Output: Galvanic isolated pulse outputs for 6‑pulse /12‑pulse thyristor bridge
Isolation: Built‑in high‑voltage galvanic isolation, protects control logic from power circuit transient interference
Diagnosis: On‑board LED indicators for power status and pulse activity
Operating Temperature: 0℃ ~ +60℃
Applicable System: ABB UNITROL 5000 excitation control system

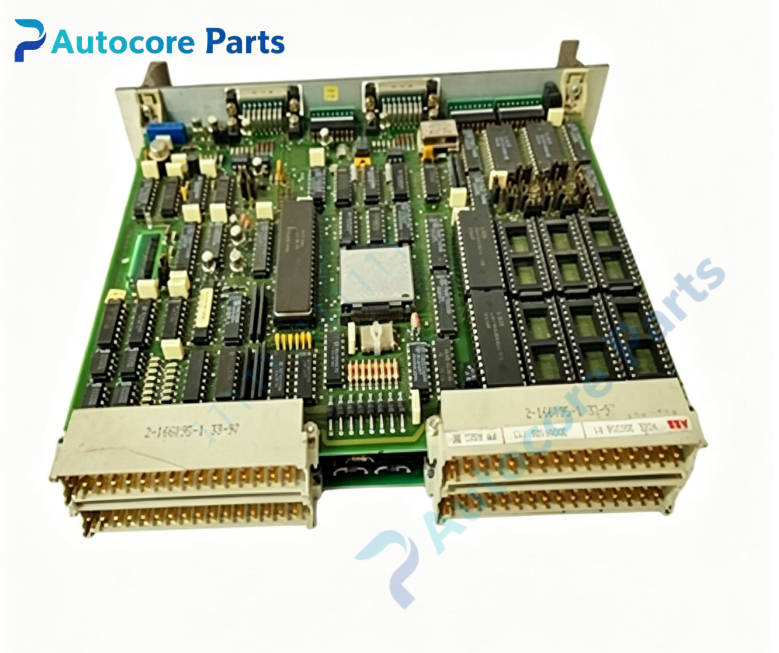

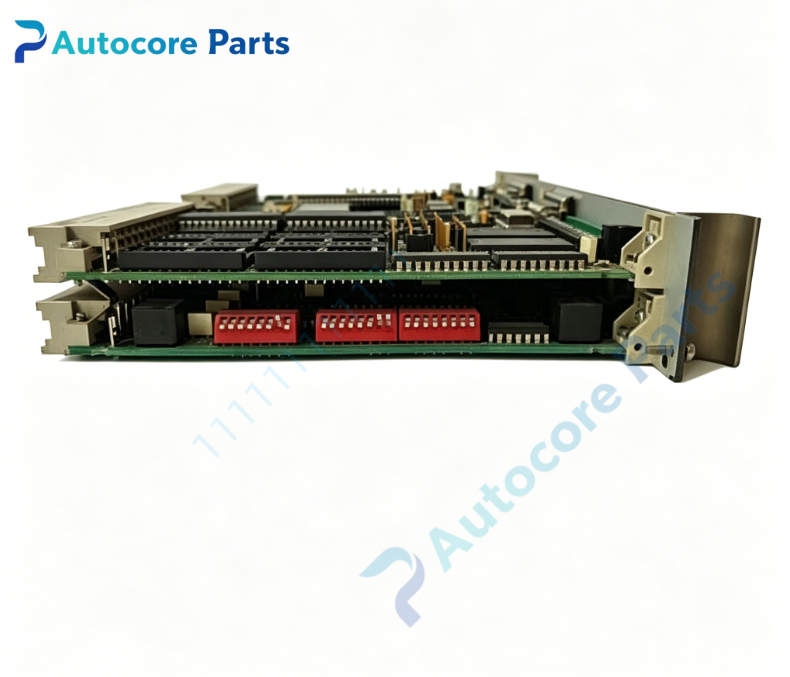

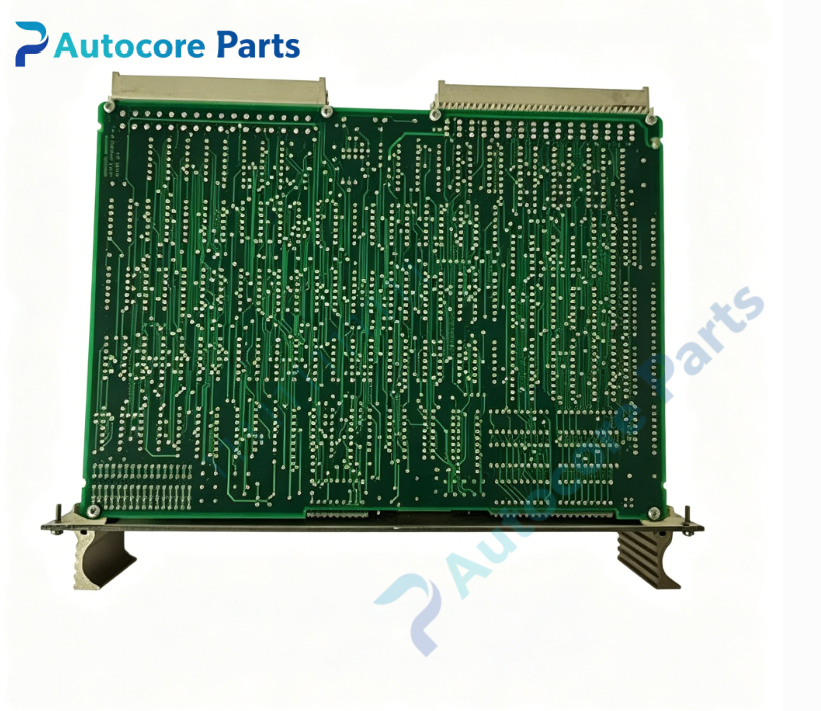

PMA323BE is a dedicated pulse marshalling interface board for ABB UNITROL 5000 generator excitation system. It receives high‑speed pulse signals from upstream control modules, distributes isolated trigger pulses to thyristor gate drive units, and implements accurate firing control for thyristor rectifier bridges.
The module adopts high‑voltage galvanic isolation design, effectively isolating strong electric power circuit and weak electric control circuit to suppress transient surges. On‑board LED indicators facilitate on‑site fault diagnosis. Standard 6U Eurocard structure fits 19‑inch rack cabinet installation. This enhanced BE version is optimized for vibration‑prone power plant environments to improve long‑term operating reliability.
It is widely used in generator excitation retrofit and maintenance projects for thermal power, hydropower and other power industries. Cut off all high‑voltage and control power supply before replacement. Confirm hardware revision and system firmware compatibility. Suitable for on‑site fault replacement and long‑term spare stocking of running UNITROL 5000 excitation systems.
