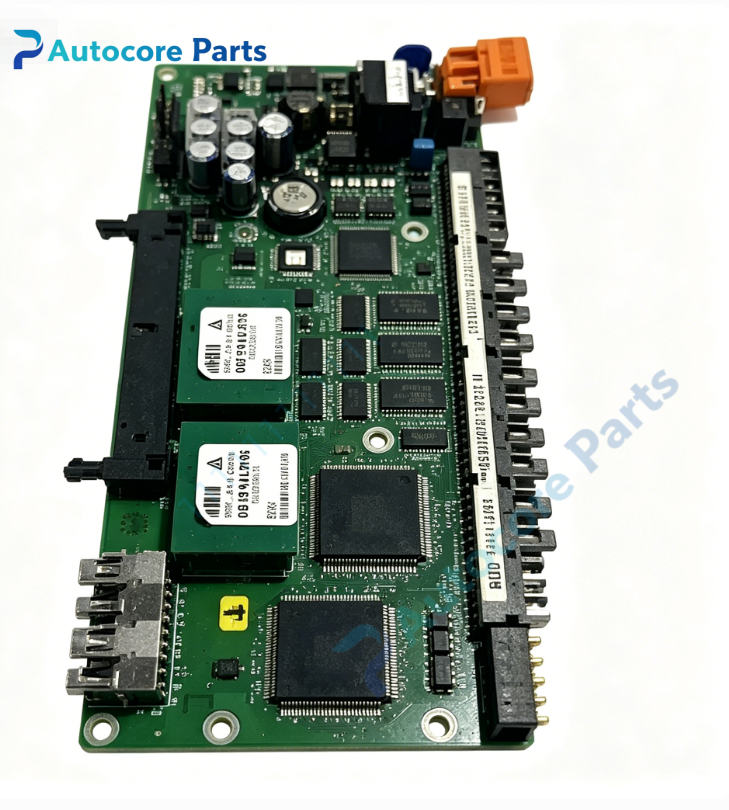

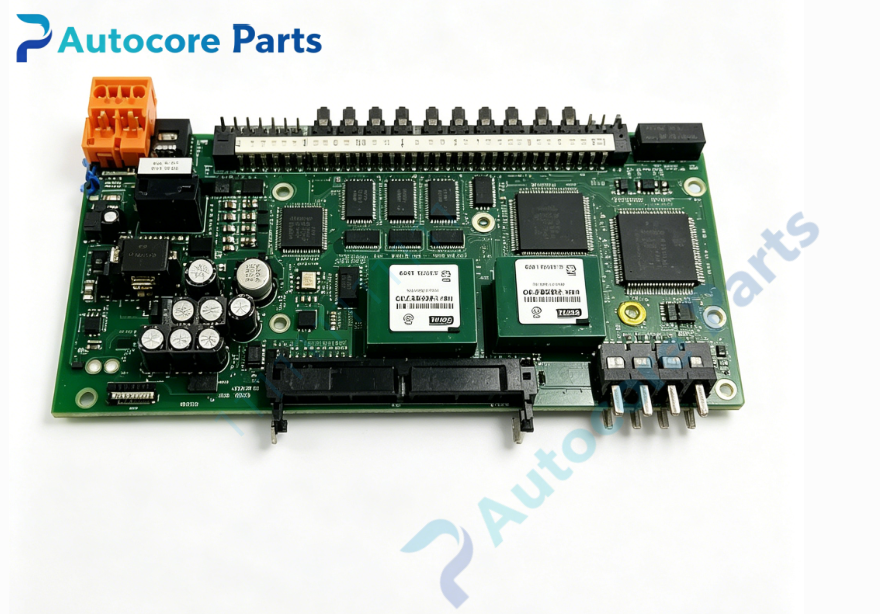

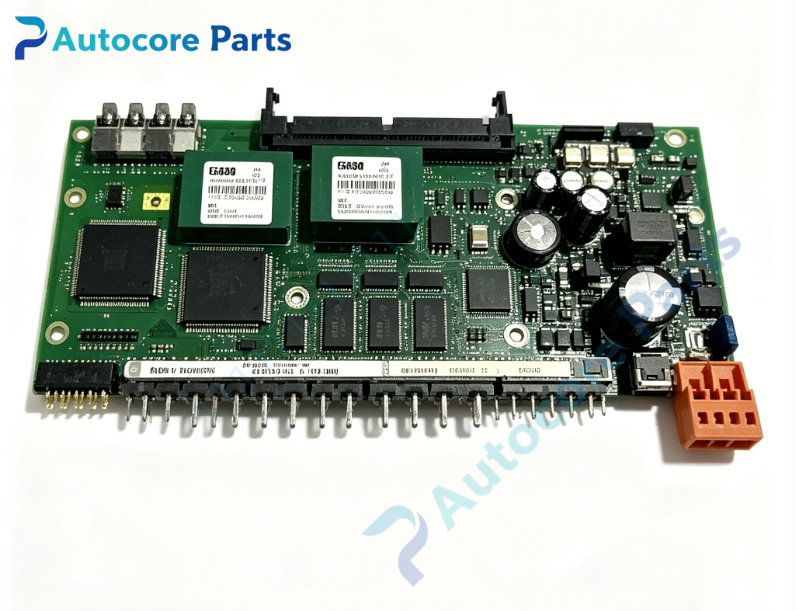

ABB PPC907BE 3BHE024577R0101 Processor Module

Technical Specifications

Model: PPC907BE

Part Number: 3BHE024577R0101

Brand: ABB

Product Type: High‑performance real‑time processor module

Matching System: ABB AC 800PEC control system

Power Supply: Rack backplane power supply

Processor: High‑speed RISC real‑time processor

Communication: High‑speed backplane bus, Ethernet, expandable optical fiber interface

Installation: Standard rack slot mounting

Operating Temperature:‑5℃ ~ +70℃, non‑condensing

Protection Class: IP20

Weight:0.72kg

Dimension:234mm ×161mm ×31mm

Compatible System: Medium‑voltage drive cabinet, generator excitation, power conversion equipment

Core Function: Core processor module for AC 800PEC real‑time control platform. It executes high‑speed power‑electronic control algorithms, completes high‑frequency signal calculation, logic processing and data communication, realizes precise control for high‑power converters, medium‑voltage drives and excitation equipment, meets microsecond‑level real‑time control requirements.

Product Details

The PPC907BE 3BHE024577R0101 is high‑performance real‑time processor module for ABB AC 800PEC control system。

This module is the central computing unit of AC800PEC platform, plugged into system standard rack and connected to high‑speed backplane bus. It undertakes complex real‑time algorithm operation, high‑speed sampling data processing, device logic control and external data interaction. It is widely applied in medium‑voltage frequency converters, power conversion units and generator excitation control occasions, delivering microsecond‑grade control cycle to guarantee dynamic response accuracy of power equipment.

Front‑panel LED indicators display module power‑on, running status and fault alarm information for fast on‑site diagnosis. Built‑in comprehensive self‑diagnosis function can detect processor operation abnormality and communication failure, and upload fault codes to upper monitoring system. Conformal coated circuit board improves anti‑interference performance, adapts to harsh electromagnetic environment of power‑electronic workshops.

It belongs to key spare‑part for AC800PEC system maintenance. Widely used in overhaul and renovation projects of metallurgy, electric power and energy‑storage power‑conversion devices.

It is important spare hardware for real‑time control loop debugging and defective PPC907BE module replacement.
