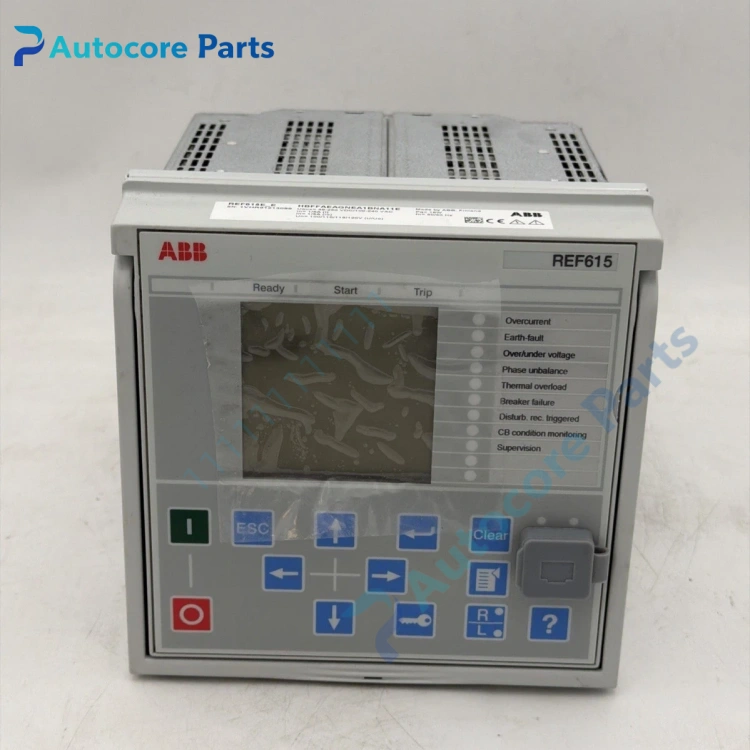

ABB REF615E Relion Feeder Protection Control Relay Unit

Feature & Principle

This intelligent electronic device collects current and voltage signals from CT/PT. It executes overcurrent, earth fault, overvoltage, undervoltage and frequency protection functions, sends trip command to circuit breaker when fault occurs. It provides local HMI and web HMI for parameter setting, alarm check and fault record review, and exchanges real-time data with substation SCADA system via Ethernet.

Specifications

Model: REF615E Brand: ABB Series: Relion 615 Application: Medium voltage feeder Communication: IEC61850, GOOSE, HSR, PRP, Modbus, DNP3, IEC103 Power supply: 48-250VDC / 100-240VAC Input: 1A / 5A CT secondary Mounting: Panel flush mount in switchgear Certification: IEC, CE

Components & Diagnostics

Main CPU board, analog acquisition module, digital input/output module, local LCD HMI, power module, communication interface. Common faults: communication interruption, self-supervision alarm, measurement deviation, I/O channel failure.

Product Brief

REF615E feeder protection IED, ABB substation automation spare widely used for industrial and utility medium voltage switchgear feeder protection.
