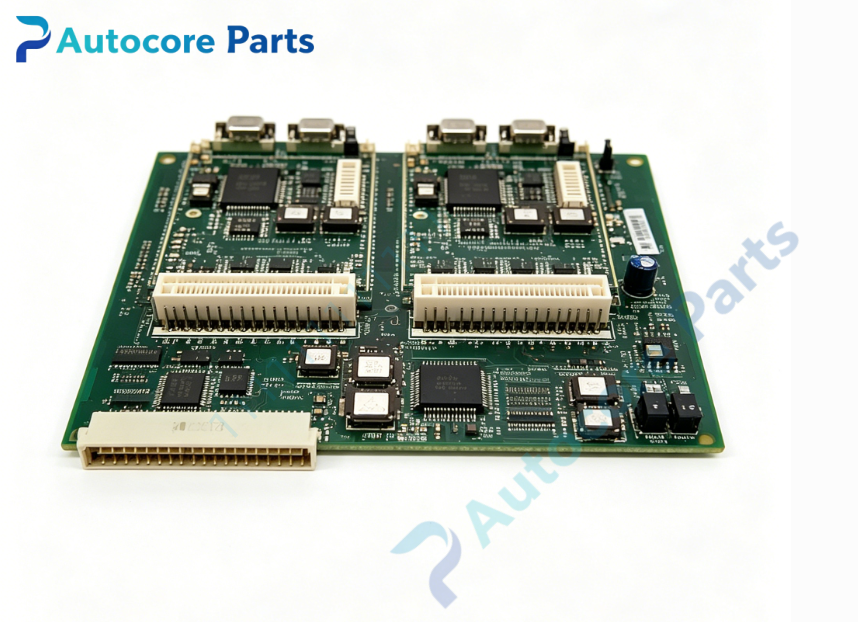

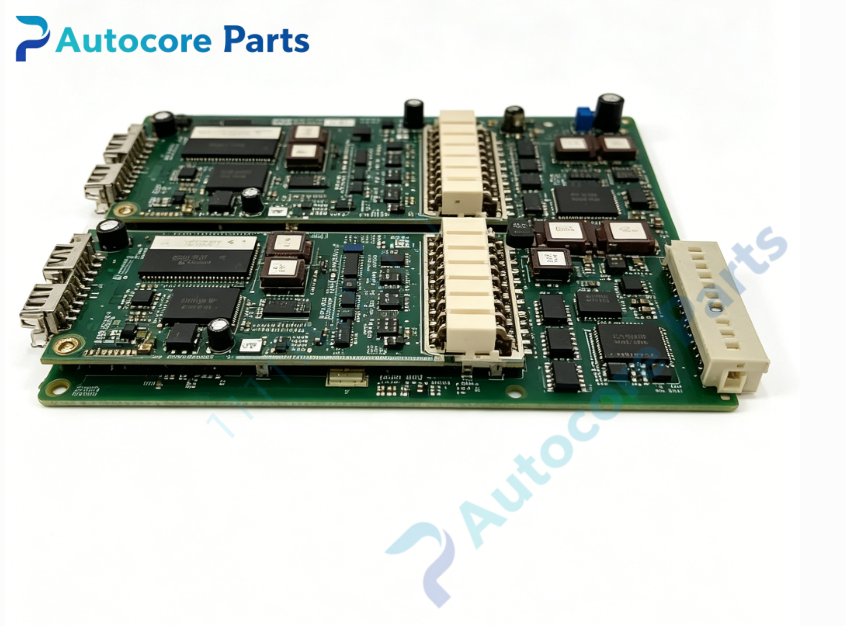

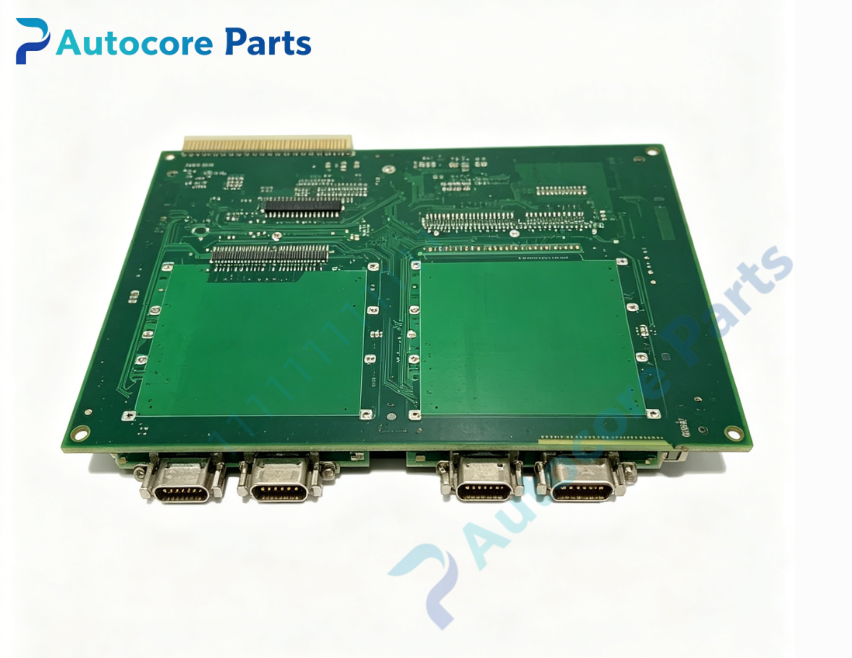

ABB SC610 3BSE001552R1 Sub‑Module Carrier Module

Technical Specifications

Model: SC610

Part Number: 3BSE001552R1

Brand: ABB

Product Type: Communication sub‑module carrier unit

Matching System: ABB Advant Controller 100 Series(AC110‑AC160)

Installable Sub‑module: Supports 2 pieces of CI532 communication modules

Power Supply: Rack backplane power supply

Installation: Standard controller rack slot mounting

Operating Temperature:‑20℃ ~ +60℃, non‑condensing

Protection Class: IP20

Weight:1.5kg

Dimension:279mm ×279mm ×51mm

Compatible System: Power plant, chemical, papermaking legacy Advant Controller control cabinet

Core Function: Special sub‑module carrier for Advant Controller100 series control system. It provides mechanical installation and backplane signal connection for CI532 communication modules, realizes stable signal routing between CI532 and controller mainframe, expands system communication interface quantity, and completes data interaction between controller and external fieldbus equipment.

Product Details

The SC610 3BSE001552R1 is dedicated sub‑module carrier unit for ABB Advant Controller100 series control system.

This carrier is installed in the Advant Controller main rack, can hold two CI532 communication sub‑modules at the same time, provides mechanical fixation and backplane signal transmission channel for sub‑modules. It does not contain independent processing chip, mainly undertakes the work of signal transfer and physical bearing. Through matching CI532 modules, it can expand various fieldbus communication interfaces for the controller, realize data exchange with field I/O stations and other automation equipment.

Module adopts robust metal casing structure, which can resist vibration and impact in industrial site. Internal backplane connector ensures stable signal transmission. It belongs to legacy hardware of Advant Controller100 series, mainly used for spare‑part replacement and maintenance of old control systems, not suitable for new‑project construction.

It is important spare hardware for controller communication expansion loop debugging and defective SC610 carrier unit replacement.
