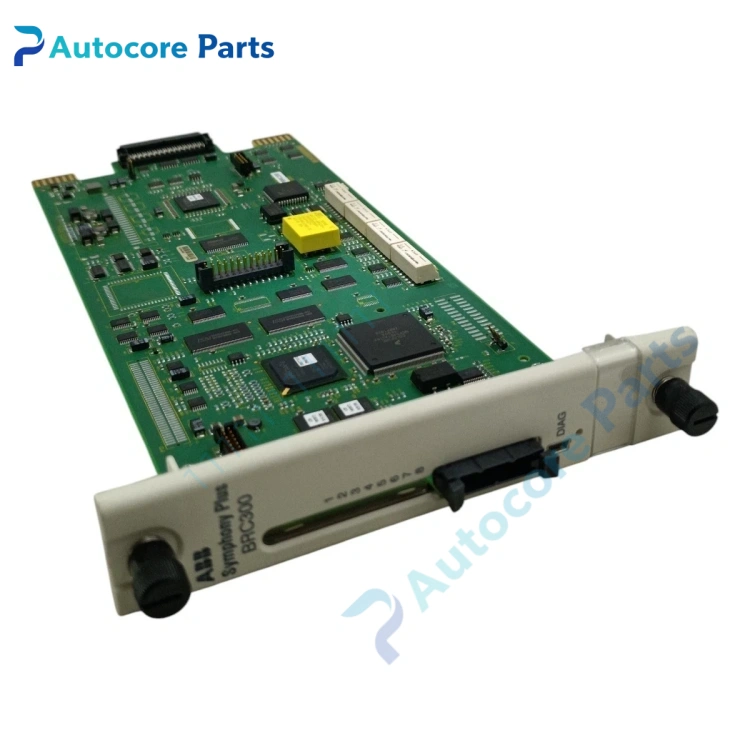

ABB SPBRC300 Bridge Controller

Feature & Principle

It is a high-performance bridge main controller of ABB Bailey Symphony Plus (INFI90) DCS series. It adopts 32-bit processor, runs function block control programs, completes PID regulation, sequence control and interlock protection. It supports one-to-one redundant hot backup, seamless switchover without disturbance when the master unit fails. It communicates through Harmony Control Network and Controlway backplane bus, manages up to 64 local I/O modules, and realizes protocol bridging and data interaction between different subsystems. This model is discontinued and mainly used for maintenance of old process control systems.

Specifications

Model: SPBRC300 (BRC300) Brand: ABB Bailey Series: Symphony Plus / INFI90 Harmony CPU: 32-bit ColdFire 5407, 160MHz Memory: 8MB SDRAM, 512KB NVRAM, 2MB Flash Power supply: 5VDC backplane power, typical 10W Redundancy: 1:1 hot redundant, mirror link Communication: HCW network, Controlway bus, RS232 / RS485 serial port Installation: Standard Harmony rack plug-in, hot swap Working temperature: -20℃ ~ +60℃ Application: Thermal power plant, chemical plant, water treatment DCS cabinet Certification: CE

Components & Diagnostics

Main control PCB, processor chip, non-volatile memory, status monitoring circuit, backplane gold finger connector, status LED indicator. Common faults: controller offline, redundancy switching failure, program loss, communication interruption, module cannot synchronize.

Product Brief

SPBRC300 bridge controller, ABB Bailey obsolete DCS spare widely used for power plant and chemical industry distributed control system overhaul and replacement.
