ABB UCD240A101 3BHE022287R0101 CCM6080 Main Control Board

Technical Specifications

Model: UCD240A101（CCM6080）

Part Number: 3BHE022287R0101

Brand: ABB

Product Type: Excitation central main control board

Matching System: ABB UNITROL 6000 Excitation System

Power Supply: Rack backplane power supply

CPU: High‑performance embedded processor

Communication: Internal backplane bus, optical fiber communication interface

Installation: Standard rack slot mounting, hot‑swap support

Operating Temperature: ‑5℃ ~ +70℃, non‑condensing

Protection Class: IP20

Weight: 0.75kg

Dimension: 235mm ×162mm ×32mm

Compatible System: Thermal power, hydropower generator excitation cabinet

Core Function: CCM6080 central control main board for UNITROL 6000 excitation system. It completes generator voltage adjustment, field current regulation, PSS power system stabilization logic, limiters and protection algorithm processing. It communicates with signal acquisition board and pulse output board, realizes full‑set excitation closed‑loop control, ensures safe and stable operation of synchronous generator.

Product Details

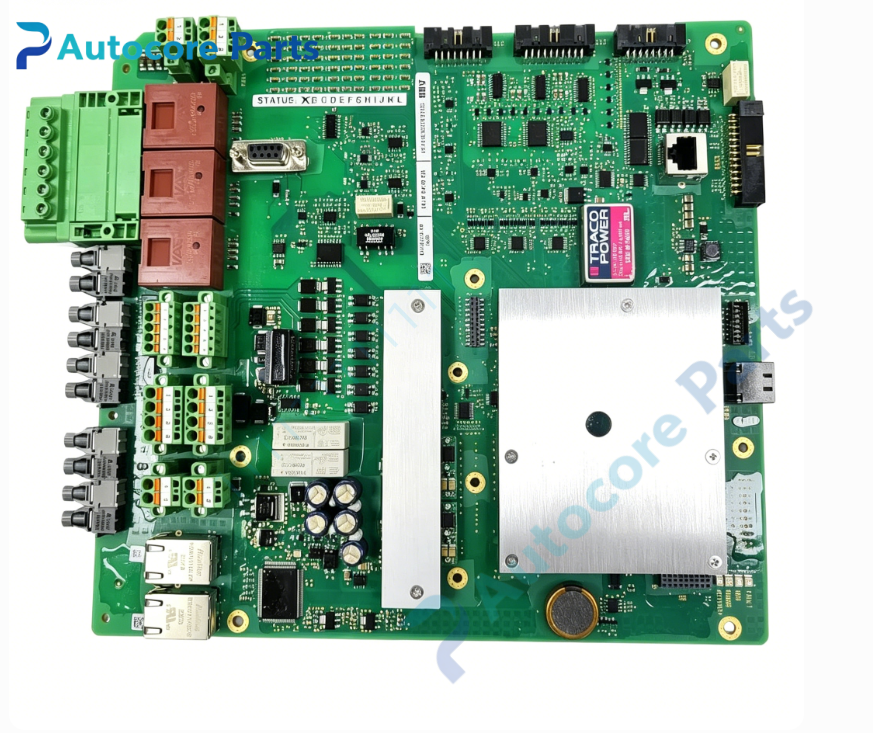

The UCD240A101 3BHE022287R0101 (CCM6080) is the core main control board of ABB UNITROL 6000 generator excitation system.

This board is the central computing unit of the excitation regulator. It executes AVR automatic voltage regulation, manual field current control, power system stabilizer PSS, over‑excitation / under‑excitation limitation and multiple protection logics. It exchanges data with signal acquisition boards and pulse trigger boards via backplane and optical links, completes overall logic calculation of the excitation system, and outputs control commands to drive subsequent pulse‑generating units.

Front‑panel LED indicators show module power‑on, running, communication and fault status for quick on‑site inspection. Built‑in rich self‑diagnosis functions, it can record fault events and upload alarm information to upper monitoring system. Conformal coated circuit board enhances moisture‑proof and anti‑interference capability, adapting to harsh electromagnetic environment in power plant workshops.

It belongs to key spare‑part for generator excitation equipment maintenance, widely used in overhaul and renovation projects of thermal power, hydropower and pumped‑storage generating units.

It is important spare hardware for excitation regulator loop debugging and defective UCD240A101 board replacement.
