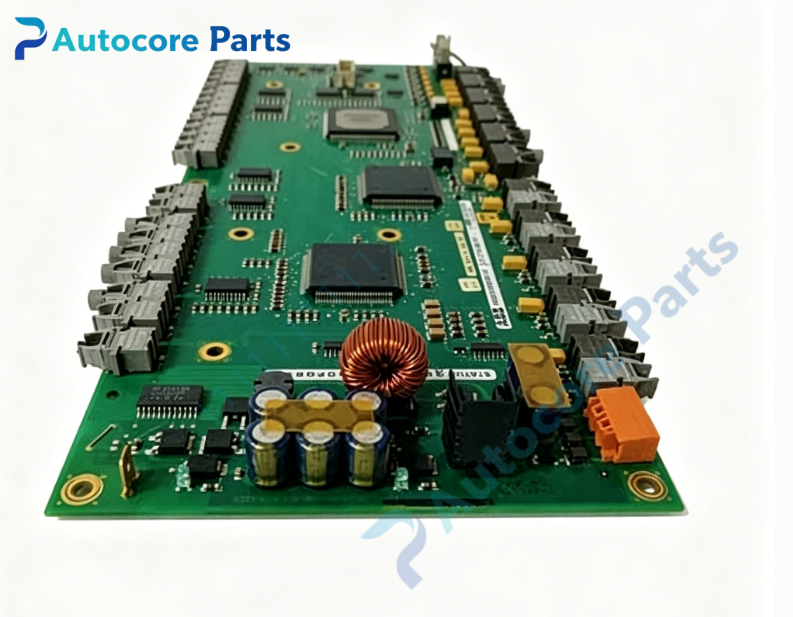

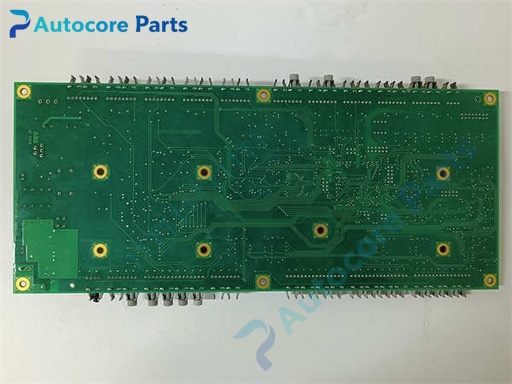

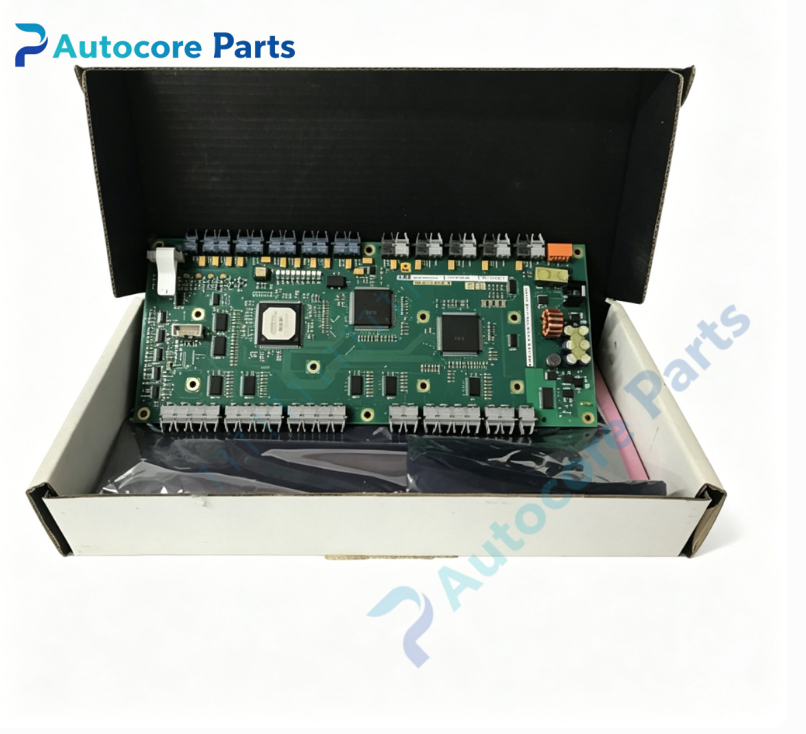

ABB UFC718AE101 HIEE300936R0101 HIEE410516P201 Universal Control Interface Board

Technical Specifications

Model: UFC718AE101

Part Number: HIEE300936R0101 / HIEE410516P201

Brand: ABB

Product Type: Universal control interface processing board

Matching System: ABB UNITROL 5000 generator excitation system

Power Supply: Cabinet backplane DC power supply

Communication Interface: Internal excitation bus, fiber‑optic interface, serial communication

Signal Processing: Thyristor pulse trigger signal processing, status signal acquisition

Installation Method: Cabinet plug‑in card installation

Operating Temperature: 0℃ ~ +60℃, non‑condensing

Protection Class: IP20

Weight: 0.52kg

Dimension: 325mm × 180mm × 32mm

Compatible System: Thermal power, hydropower synchronous generator excitation cabinet

Core Function: Realize pulse signal processing for thyristor excitation unit, complete signal interaction between main control board and power unit, collect working status feedback, support excitation trigger control and hardware fault diagnosis, guarantee stable operation of excitation power loop.

Product Details

The UFC718AE101 HIEE300936R0101 HIEE410516P201 is universal control interface board for ABB UNITROL 5000 generator excitation system。

This UFC718AE101 board serves as intermediate signal link between main control processor and thyristor power unit.

It receives control pulses from main board, processes and distributes trigger signals for thyristor power components.

It collects real‑time working feedback signals from power unit and transmits status information back to main control board.

Built‑in hardware monitoring circuit can detect trigger abnormality, phase unbalance and signal loss, output corresponding fault alarm information.

Adopts optocoupler isolation design to enhance anti‑interference capability for complex power plant electromagnetic environment.

Standard plug‑in structure supports convenient on‑site maintenance and replacement.

It is widely used in generator excitation system overhaul and renovation projects of thermal power plants and hydropower stations.

It is important spare hardware for excitation cabinet maintenance, trigger loop debugging and defective UFC718AE101 board replacement.
