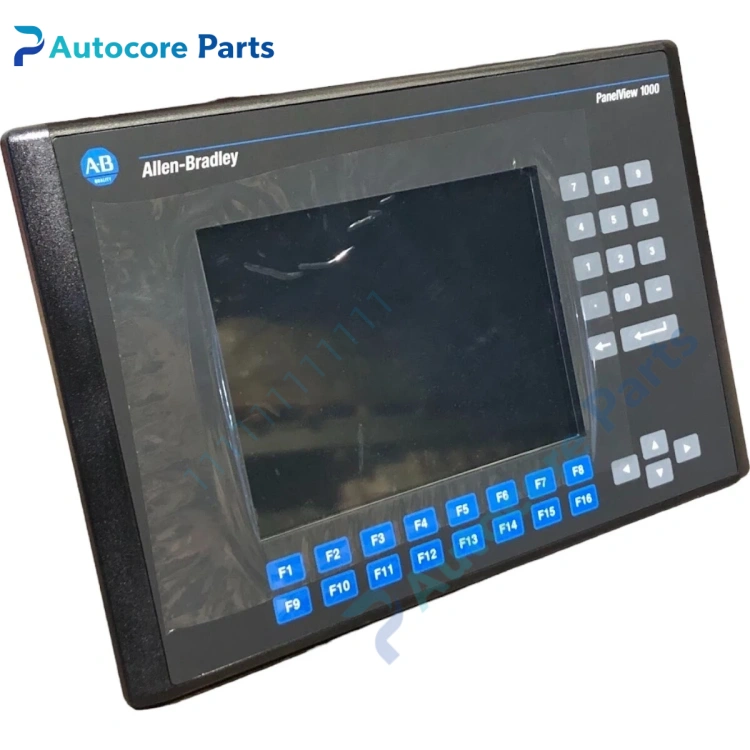

Allen Bradley 2711-K10C1L1 PanelView 1000 HMI Terminal

Feature & Principle

It belongs to classic PanelView 1000 series HMI terminal. It adopts physical keypad operation + color display design. It communicates with AB PLC via Remote I/O and RS232 port, realizes data display, parameter setting, alarm viewing. Program download and configuration rely on PanelBuilder32 software. This model is discontinued, only used as maintenance spare for old production lines. The front panel meets NEMA4X / IP65 protection grade, suitable for workshop dustproof and splash-proof scene.

Specifications

Model: 2711-K10C1L1 (K10C1L1) Brand: Allen Bradley Series: PanelView 1000 Display: 10 inch color LCD Operation mode: Hard keypad (non-touch) Communication: Remote I/O, RS232 Power supply: AC 85~264V Front protection: NEMA4X / IP65 Configuration software: PanelBuilder32 Application: Packaging, textile, water treatment old automation production line Certification: CE, UL

Components & Diagnostics

Color LCD screen, keyboard membrane, main control board, power circuit, communication interface, status LED. Common faults: backlight failure, keypad no response, communication cannot connect, program loss, power supply damage.

Product Brief

K10C1L1 HMI operator panel, Allen Bradley obsolete PanelView 1000 spare widely used for old PLC control cabinet overhaul and replacement.
