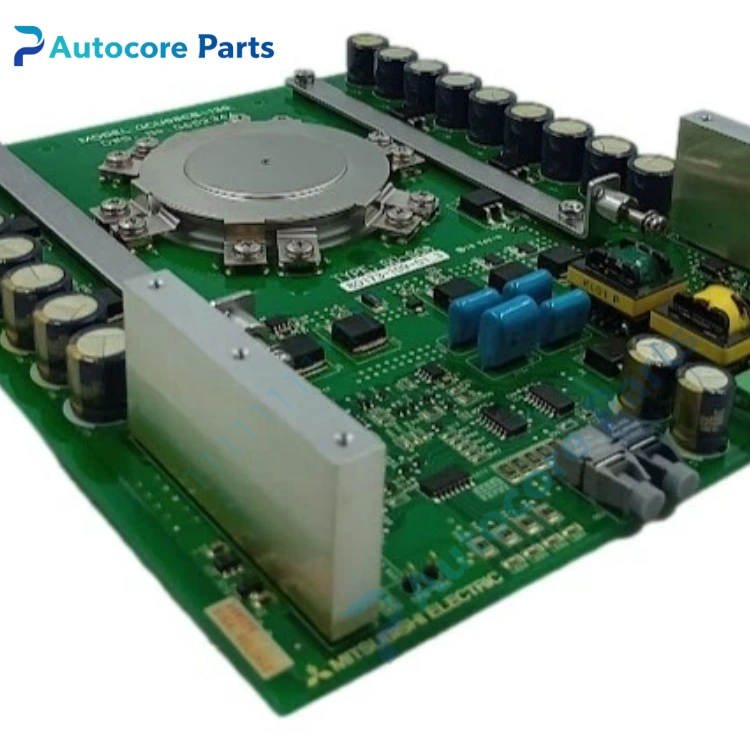

Allen Bradley 80173-109-01 GU-G08 Gate Commutated Thyristor Board

Feature & Principle

It is Rockwell Allen‑Bradley GU-G08 GCT gate commutated thyristor power board. It uses gate commutated turn-off thyristor technology, which realizes high‑voltage and high‑current switching control inside PowerFlex 7000 medium voltage inverter. It receives drive pulse signals from control board, controls on-off of main power circuit. This model has been discontinued, mainly used for old medium voltage frequency converter maintenance replacement.

Specifications

Model: 80173-109-01 (GU-G08) Brand: Allen Bradley (Rockwell Automation) Applicable drive: PowerFlex 7000 medium voltage inverter Device type: GCT gate commutated thyristor power unit Lifecycle: Discontinued Application: Medium voltage variable frequency drive cabinet, heavy industry high-power motor speed regulation Certification: CE, UL

Components & Diagnostics

GCT thyristor chip, pulse drive circuit, absorption capacitor, power terminal, status indicator. Common faults: GCT device breakdown, drive circuit damage, capacitor aging, pulse signal loss.

Product Brief

80173-109-01 GCT thyristor power board, Rockwell PowerFlex7000 medium voltage drive obsolete spare widely used for medium voltage inverter overhaul and replacement.
