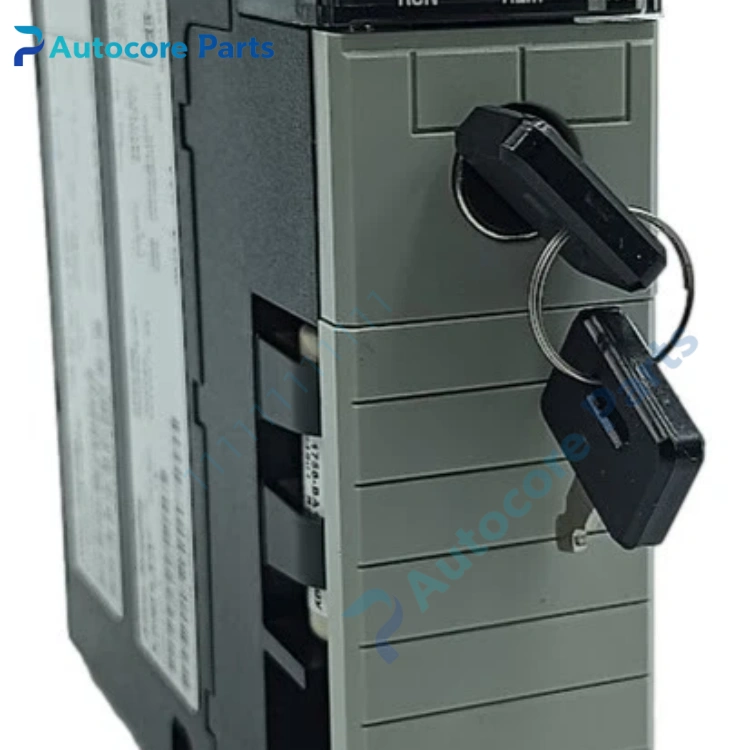

Allen‑Bradley 1756-M24 Memory Module

Feature & Principle

It is Allen‑Bradley 1756-M24 memory expansion module for ControlLogix Logix5555 CPU. It provides 3.5MB non-volatile storage space for user programs, tags and configuration data. It is inserted into the dedicated memory slot of the controller to expand storage capacity. Data can be kept without battery power loss. This model has been discontinued, mainly used for maintenance and retrofit of old ControlLogix automation racks.

Specifications

Model: 1756-M24 Brand: Allen‑Bradley (Rockwell) Series: ControlLogix Capacity: 3.5 MB Compatible controller: Logix5555 Supply: 5.1 VDC, 620 mA Installation: Controller internal slot Lifecycle: Discontinued Application: Petrochemical, power plant old PLC cabinet maintenance Certification: CE, UL

Components & Diagnostics

Memory chip array, control logic circuit, gold-plated connector, status LED. Common faults: data loss, identification failure, poor contact, chip aging.

Product Brief

1756-M24 memory expansion module, Allen‑Bradley ControlLogix PLC spare widely used for old automation control cabinet overhaul and replacement.
