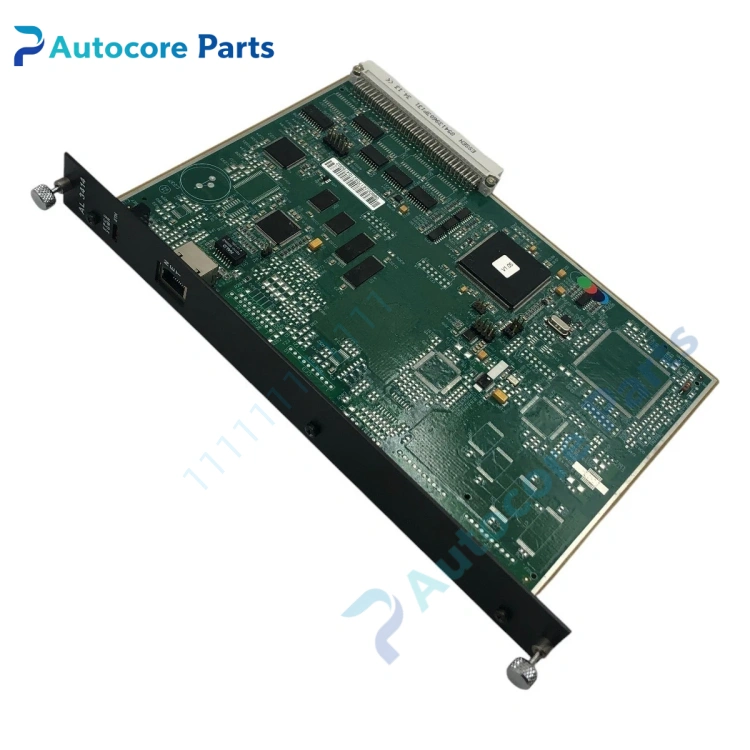

Altus AL-3414 Redundant Modbus TCP Ethernet Interface Module

Feature & Principle

It is Altus redundant Ethernet interface module for AL series PLC. It supports Modbus TCP and ALNET II protocol, works as client & server simultaneously. It provides network redundancy function to avoid single network point failure. It exchanges data between PLC, HMI, SCADA and other automation devices via 10/100Mbps Ethernet. It is matched with AL2004 CPU and configured by MasterTool software.

Specifications

Model: AL-3414 Brand: Altus Interface: 10/100Base-TX, shielded RJ45 Protocol: Modbus TCP, ALNET II Redundancy: Support redundant communication Compatible CPU: AL2004 Power supply: 24VDC Mounting: Rack slot installation Application: Factory automation, process control, SCADA networking Certification: CE

Components & Diagnostics

Ethernet transceiver chip, main control circuit, backplane connector, status LED, RJ45 port. Common faults: network disconnection, IP configuration loss, communication timeout, port damage.

Product Brief

AL-3414 Ethernet interface module, Altus AL series PLC communication spare widely used for automation control cabinet overhaul and replacement.
