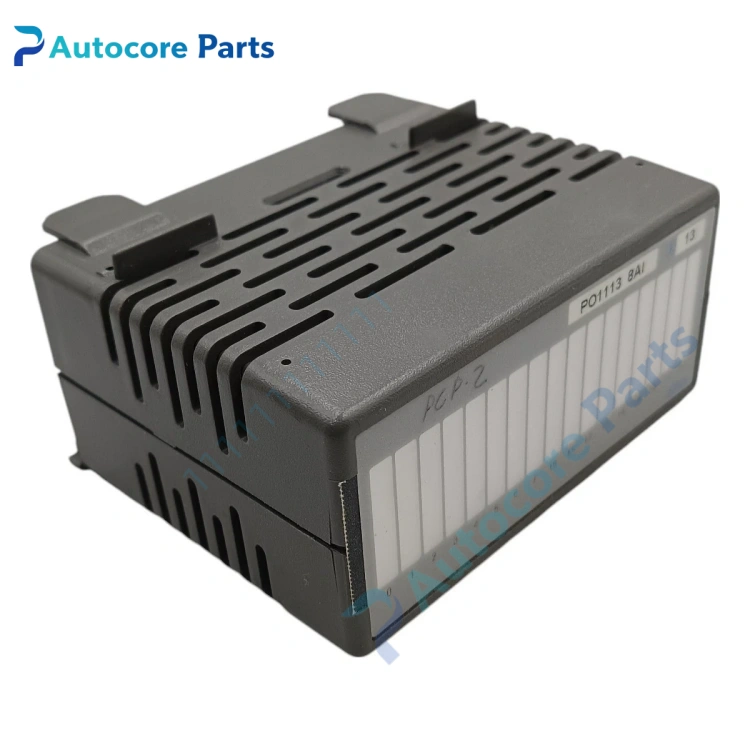

Altus PO1113 Analog Input Module

Feature & Principle

It is Altus Ponto series isolated analog input module. It collects 4-20mA or 0-10V analog signals from field transmitters and converts them into digital signals for PLC processing. It provides galvanic isolation to suppress ground loop interference and protect the backplane bus. Each channel supports software configuration, and LED indicators show channel status. It adopts compact DIN rail installation and works with matched terminal base.

Specifications

Model: PO1113 Brand: Altus Channel: 8 isolated analog input channels Signal type: 4-20mA, 0-10V Isolation: 500VAC galvanic isolation Resolution: 12 bit Mounting: DIN rail Compatible base: PO6004 / PO6051 series terminal base Application: Chemical, water treatment, factory automation signal acquisition Certification: CE

Components & Diagnostics

Signal conditioning circuit, isolation circuit, A/D conversion chip, status LED, side bus connector. Common faults: channel signal loss, reading drift, bus communication failure, terminal loose contact.

Product Brief

PO1113 analog input module, Altus Ponto series isolated AI spare widely used for PLC automation cabinet overhaul and replacement.
