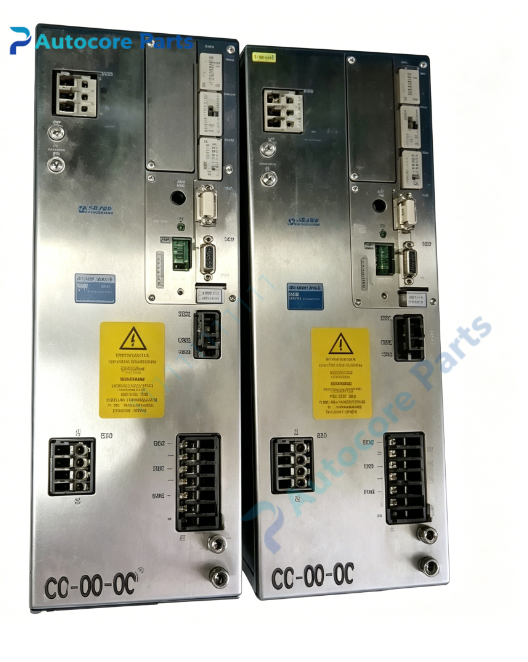

AMK KU-14/D-73230 Servo Drive (KU-R01 Main Control Board)

Technical SpecificationsModel: KU-14/D-73230 + KU-R01 Brand: AMK (Germany) Matching System: DELEM Modusys Press Brake System Product Type: Servo Power Unit + Main Control Board Mounting: Cabinet rack mounting Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Input power: 3×380~480V AC Rated current: 3×23A Weight: 7.8 kg

System compatibilityKU-14/D-73230 is AMK AMKASYN KU series servo power unit, equipped with KU-R01 main control card. It is widely used as the backgauge servo drive for electro-hydraulic synchronous press brake with Delem Modusys control system. Compatible with Delem DA22,DA24e,DA63P,DA65P,DA66T and DM series axis modules. It supports resolver and incremental encoder feedback for closed-loop position control.

FunctionKU-14/D-73230 is the power stage of the servo drive, converting three-phase AC power into DC bus and output PWM power to drive the backgauge servo motor. KU-R01 is the core control motherboard, responsible for motion control algorithm, encoder signal acquisition, command exchange with Delem CNC controller. It monitors overcurrent, overvoltage, overtemperature, motor overload and encoder faults, triggers protection and alarm once abnormal status occurs. It is used to replace defective servo drive when press brake backgauge axis cannot run normally under Delem Modusys system.

InstallationCut off main three-phase power supply before installation. Mount KU-14/D-73230 on cabinet rack, install KU-R01 control card into the drive slot. Connect 3-phase AC input, motor power cable, encoder cable, 24V control power and ground wire. Connect signal cable between KU-R01 and Delem DM axis module. Check wiring definition, upload drive parameters, perform motor identification and axis test run before formal production.

Interface3-phase AC power terminal, motor power terminal, DC bus terminal, resolver/encoder interface, analog command port connected to Delem DM module, digital I/O terminals, LED status indicators for AMK KU-14/D-73230 + KU-R01 servo drive.

FeatureOriginal German AMK KU series servo drive, matched for Delem Modusys press brake backgauge control. KU-R01 control board supports multiple encoder types, high dynamic response, multiple protection functions, built-in PLC and self-diagnostic function. This legacy spare part supports field repair of sheet metal press brake equipped with Delem CNC system.

DiagnosticNo power LED: check 3-phase AC input power and internal fuse of KU-14/D-73230. Backgauge no movement: check KU-R01 card insertion, enable signal, wiring between Delem DM module and servo drive. Overcurrent alarm: check motor insulation, cable short circuit and drive parameter setting.

Product BriefKU-14/D-73230 with KU-R01 is German AMK AMKASYN servo drive, specially matched for Delem Modusys hydraulic press brake backgauge axis. It receives position command from Delem CNC system and realizes high precision servo positioning, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
