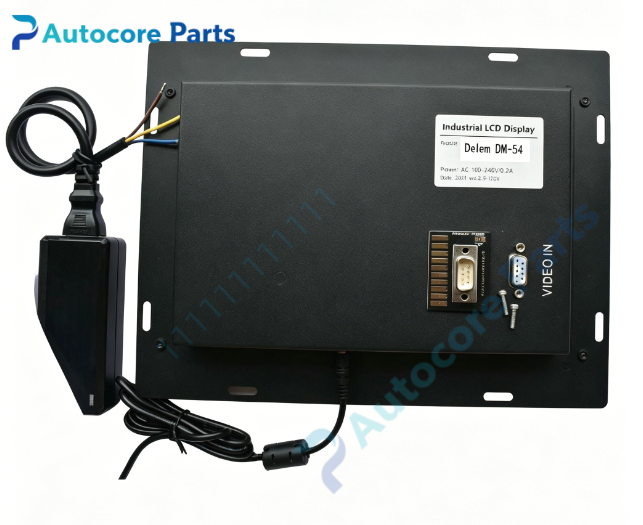

DELEM DM-54 Motion Control Axis Module

Technical SpecificationsModel: DM-54 Brand: DELEM (Netherlands) Product Type: Dual-Axis Motion Control Module Mounting: DIN rail mounting inside press brake electrical cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Power supply: 24V DC Weight: 0.98 kg

System compatibilityDM-54 is classic dual-axis motion control module of DELEM Modusys system. It communicates with DA series CNC controllers via HSB high-speed bus, compatible with DA52,DA53,DA56,DA58,DA63P,DA65P,DA66T. It connects dual linear encoders and hydraulic proportional valves, mainly used for Y1/Y2 ram synchronous control on electro-hydraulic synchronous press brake. Widely used for sheet metal bending machine maintenance and spare replacement.

FunctionDM-54 performs real-time closed-loop position calculation for Y1 and Y2 bending axes. It receives position feedback signals from two linear encoders, calculates position deviation and outputs analog control signals to hydraulic proportional valves to realize ram synchronous motion control. It supports automatic crowning compensation signal output. It continuously monitors encoder signal quality, HSB bus communication and power supply state, sends fault alarm messages to main controller once signal loss or axis synchronization error occurs. It is used to replace defective axis modules when press brake ram loses synchronous bending control.

InstallationCut off main power supply before installation. Mount DM-54 on DIN rail and lock the module. Connect 24V DC power, HSB bus cable, dual encoder cables and hydraulic valve analog terminals. Check wiring definition, upload machine parameters, complete axis homing and trial bending test before formal production.

InterfaceHSB fieldbus port, two encoder input connectors, dual analog output terminals for hydraulic valves, digital I/O terminals, LED status indicators for DELEM DM-54 module.

FeatureOriginal DELEM Modusys dual axis hydraulic control module, high-speed HSB bus real-time communication, two independent high-precision position sampling channels, built-in axis synchronization monitoring, metal housing, strong anti-interference performance. This legacy spare part supports field repair of DELEM electro-hydraulic synchronous press brake systems.

DiagnosticNo power indicator: check 24V DC power supply and module fuse for DM-54. Y1 Y2 axis synchronization deviation: verify encoder wiring, shielding and machine parameter configuration. HSB bus communication error: inspect bus cable connection, terminal resistor and grounding condition.

Product BriefDM-54 is Dutch DELEM Modusys dual-axis motion control module for electro-hydraulic synchronous press brake. It collects dual linear encoder feedback and outputs analog valve signals for Y1/Y2 ram synchronous closed-loop control, classic spare part for legacy metal fabrication machine overhaul.
