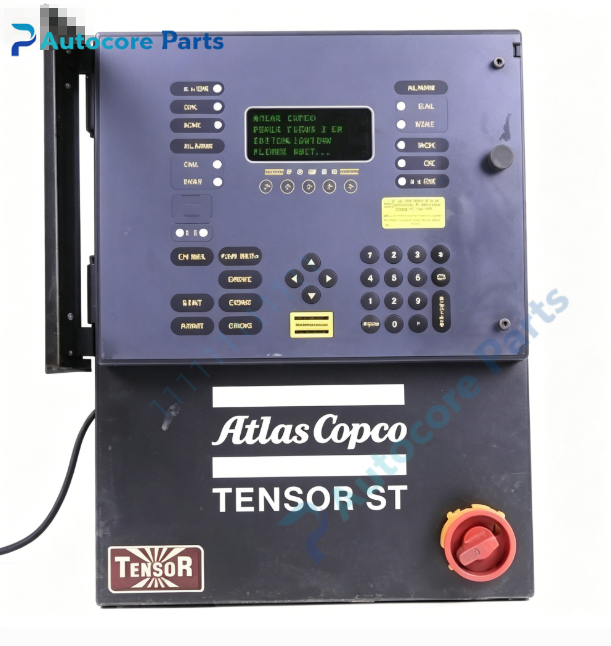

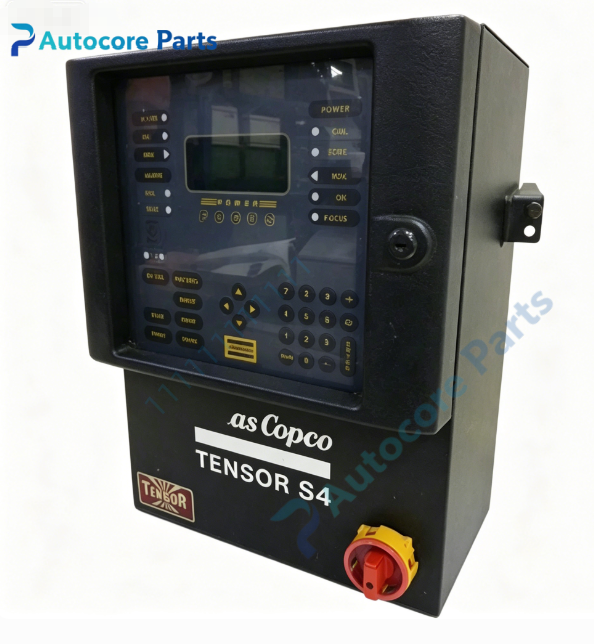

Atlas Copco 2102-S4-115R Tightening Controller

Technical SpecificationsModel:2102-S4-115R Brand:Atlas Copco Product Type:Power Focus 2100 Series Tightening Controller for Tensor S4 Power Supply:115V AC single-phase,50/60Hz Mounting:Cabinet floor or panel mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:14.8kg Dimension:420mm230mm380mm Protection:IP20

System compatibility2102-S4-115R belongs to Atlas Copco Power Focus 2100 series tightening controller. Compatible with Tensor S4 series electric servo nutrunner tools. It supports digital I/O communication for interconnection with PLC and HMI devices. This controller transmits tightening curves and full traceability data to PLC and MES system, designed for precision bolt fastening on automotive and general machinery assembly lines as industrial spare part.

Function2102-S4-115R is industrial servo torque controller for single spindle tightening station. This Atlas Copco Power Focus 2100 controller supports multi-step tightening strategies, real-time torque and angle curve monitoring, OK/NOK result judgement. It stores large volume tightening history records and supports parameter backup, built-in emergency stop safety relay, widely used for bolt assembly at automotive and heavy machinery assembly stations, serving as reliable industrial spare part.

InstallationCut off power before installation. Mount the 2102-S4-115R Atlas Copco controller inside electrical cabinet. Connect AC power cable, Tensor S4 tool cable and I/O signal cable. Configure tightening programs via Power Focus software. Complete tool calibration and test tightening before online operation of this Power Focus 2100 controller.

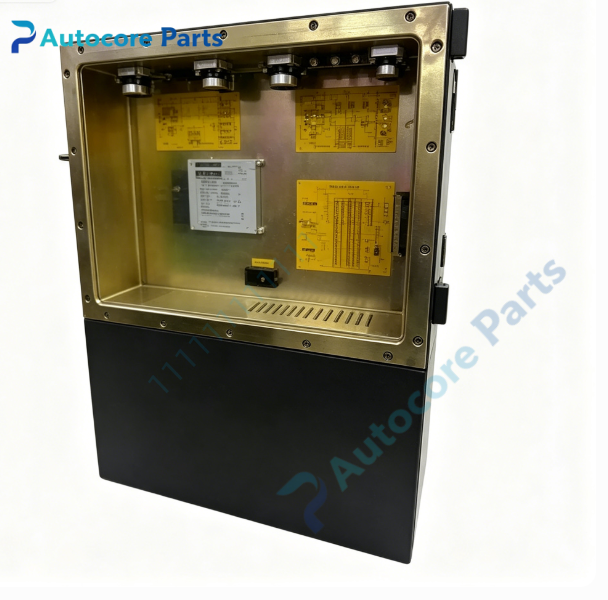

InterfaceTool drive port, digital I/O terminals, serial communication port, Ethernet service port, front operation panel, status LED indicators, E-stop safety relay terminal for 2102-S4-115R Atlas Copco tightening controller.

FeatureAtlas Copco Power Focus 2100 tightening controller, dedicated for Tensor S4 servo tightening tools, 115V AC power version, service Ethernet port, real-time torque-angle curve monitoring, built-in E-stop safety relay, tightening data storage, IP20 cabinet protection. This discontinued legacy industrial spare part is used for single spindle bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring for 2102-S4-115R. Tool no rotation: check tool cable, motor winding and enable signal. Tightening result deviation: verify tool calibration, tightening program and mechanical condition of this controller. Serial communication abnormal: check serial cable, station address, PLC configuration. Front panel display fault: check internal display connector and controller firmware.

Product Brief2102-S4-115R is Atlas Copco Power Focus 2100 series servo tightening controller. This controller widely used in automotive and machinery assembly production lines for high precision single spindle tightening, dedicated for Tensor S4 electric tightening tools, popular industrial spare part for fixture assembly system.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
