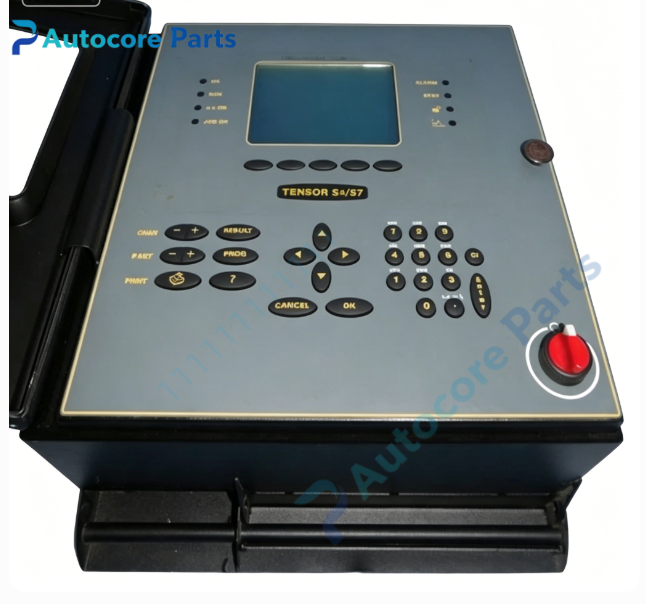

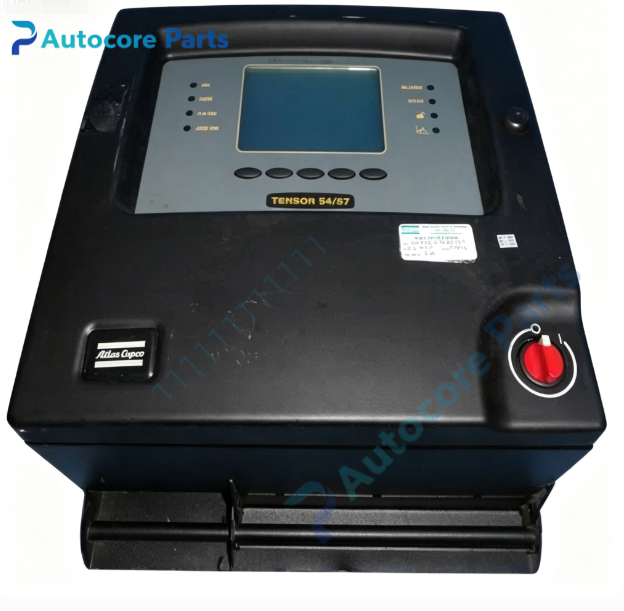

Atlas Copco PF3007-G-PB-HW Tightening Controller

Technical SpecificationsModel:PF3007-G-PB-HW Brand:Atlas Copco Product Type:Tensor 3-7 Graph Tightening Controller with Profibus DP Power Supply:90-120/180-240V AC,50/60Hz,300W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:9.8kg Dimension:410mm310mm165mm

System compatibilityPF3007-G-PB-HW belongs to Atlas Copco Tensor 3-7 series single-tool tightening controller. Compatible with Tensor 3-7 series electric nutrunner tools. Equipped with Graph local HMI and Profibus DP fieldbus, can communicate with PLC and MES system for fastening result upload, production traceability and remote parameter control.

FunctionPF3007-G-PB-HW is compact torque-angle control unit for automated bolt assembly. It supports multi-step tightening sequences, real-time torque-angle curve monitoring and OK/NOK fastening judgement. Integrated Graph HMI supports standalone local program editing and parameter adjustment without external PC. Profibus DP fieldbus realizes high-speed bi-directional data exchange with upper automation systems. It stores fastening history records, supports parameter backup, built-in emergency stop safety relay, widely used for automotive component and machinery assembly stations.

InstallationCut off power before installation. Mount controller inside electrical cabinet. Connect AC power, tool motor cable and Profibus communication cable. Configure tightening programs via local Graph panel or ToolsTalk software. Complete tool calibration and test tightening before online operation.

InterfaceSingle tool drive port, 24V digital I/O terminals, Profibus DP port, built-in Graph HMI operation panel, status LED indicators, E-stop safety relay terminal.

FeatureAtlas Copco Tensor3-7 torque controller, local Graph HMI on-site programming, Profibus DP communication interface, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data storage, IP20 cabinet protection. Discontinued legacy spare part, used for single station bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition. Profibus communication loss: check bus cable, node address, PLC configuration and bus termination resistor. HMI display fault: check internal display connector and controller firmware.

Product BriefAtlas Copco PF3007-G-PB-HW is Tensor3-7 Graph Profibus DP torque tightening controller, widely used in automotive and machinery assembly production lines for single station bolt fastening, on-site program setup and factory bus communication.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
