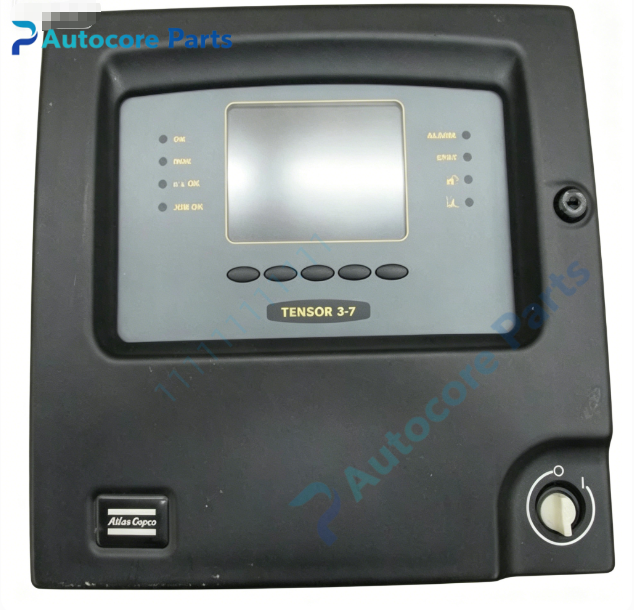

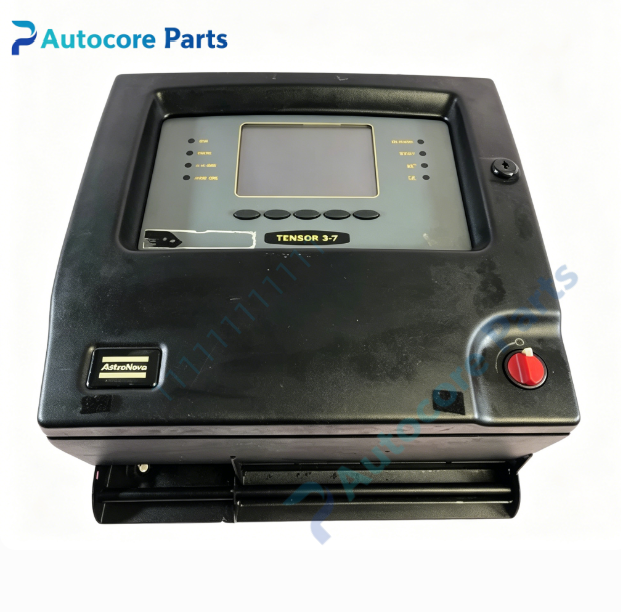

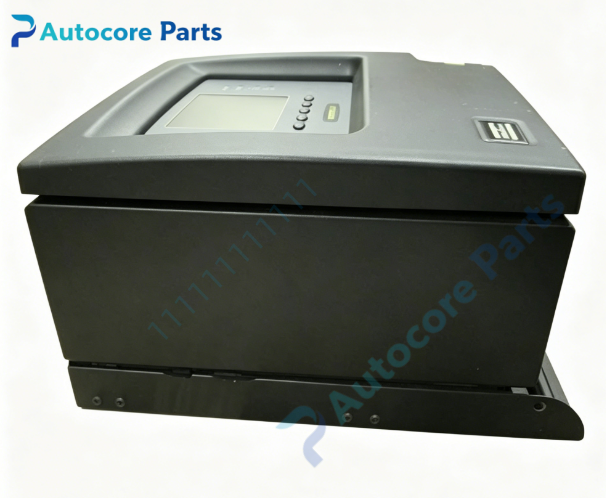

Atlas Copco PF3107-G-HW Tightening Controller

Technical SpecificationsModel:PF3107-G-HW Brand:Atlas Copco Product Type:Tensor 3-7 Graph Tightening Controller Power Supply:90-120/180-240V AC,50/60Hz,300W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:9.6kg Dimension:410mm310mm165mm

System compatibilityPF3107-G-HW belongs to Atlas Copco Tensor 3-7 series single-tool tightening controller. Compatible with Tensor 3-7 series electric nutrunner tools. G model equipped with local Graph HMI panel for on-site programming, can connect with PLC and MES via optional fieldbus modules for fastening result upload and production traceability.

FunctionPF3107-G-HW is compact torque-angle control unit for automated bolt assembly. It supports multi-step tightening sequences, real-time torque-angle curve monitoring and OK/NOK fastening judgement. The integrated Graph HMI enables standalone local program editing and parameter adjustment without external PC. It stores fastening history records, supports parameter backup, built-in emergency stop safety relay, widely used for automotive component and machinery assembly stations.

InstallationCut off power before installation. Mount controller inside electrical cabinet. Connect AC power, tool motor cable and signal wiring. Configure tightening programs via local Graph panel or ToolsTalk software. Complete tool calibration and test tightening before online operation.

InterfaceSingle tool drive port, 24V digital I/O terminals, built-in Graph HMI operation panel, status LED indicators, E-stop safety relay terminal, optional fieldbus expansion slot.

FeatureAtlas Copco Tensor3-7 Graph torque controller, local on-site programming HMI, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data storage, IP20 cabinet protection. Discontinued legacy spare part, used for single station bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition. HMI display fault: check internal display connector and controller firmware.

Product BriefAtlas Copco PF3107-G-HW is Tensor3-7 Graph torque tightening controller, widely used in automotive and machinery assembly production lines for single station bolt fastening and on-site program setup.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
