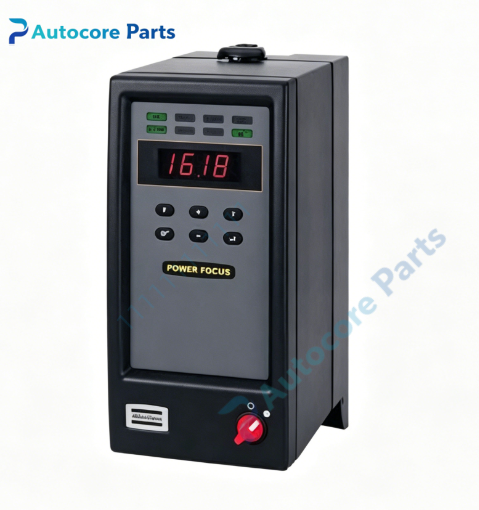

Atlas Copco PF4002-C-PN-HW Tightening Controller

Technical SpecificationsModel:PF4002-C-PN-HW Brand:Atlas Copco Product Type:Power Focus 4002 Tightening Controller with Profinet Power Supply:100-120/200-240V AC,50/60Hz,150W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:12.7kg Dimension:415mm319mm173mm

System compatibilityPF4002-C-PN-HW belongs to Atlas Copco Power Focus 4002 compact single-tool controller series. Compatible with Atlas Copco Tensor series electric nutrunner tools. Built-in Profinet industrial fieldbus, supports communication with PLC and MES system for fastening result upload, production traceability and remote parameter control.

FunctionPF4002-C-PN-HW is compact high precision torque-angle control unit for automated bolt assembly. It executes multi-step tightening programs, monitors torque and angle curve in real time and judges OK/NOK fastening results. It supports fastening data storage, error-proofing logic and integrated emergency stop safety relay. The onboard Profinet interface enables high-speed bi-directional data exchange with upper automation systems, widely used for small station assembly lines.

InstallationCut off power before installation. Mount controller inside electrical cabinet. Connect AC power, tool motor cable and Profinet communication cable. Configure tightening parameters and Profinet node address via ToolsTalk software. Complete tool calibration and test tightening before online operation.

InterfaceSingle tool drive port, 24V digital I/O terminals, Profinet port, built-in display and operation keys, status LED indicators, E-stop safety relay terminal.

FeatureAtlas Copco Power Focus 4002 compact single-tool torque controller, Profinet communication interface, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data traceability, error proofing function, IP20 cabinet protection. Obsolete legacy spare part, used for assembly line single bolt tightening station maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition. Profinet communication loss: check network cable, node address, PLC configuration and bus topology.

Product BriefAtlas Copco PF4002-C-PN-HW is Power Focus 4002 Profinet compact torque tightening controller, widely used in automotive and machinery assembly production lines for single station bolt fastening control and quality data collection.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
