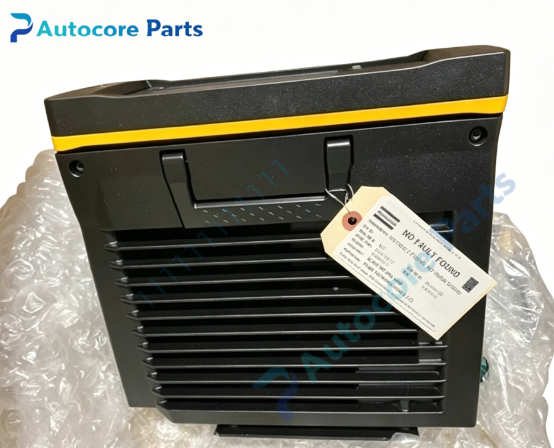

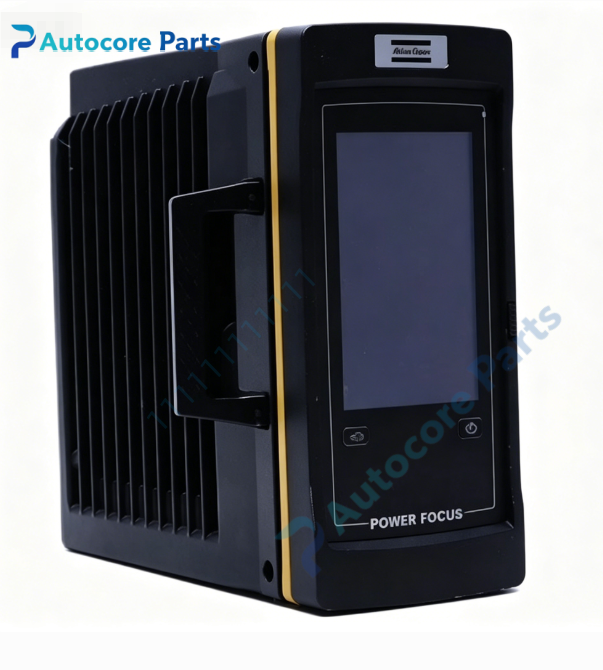

Atlas Copco PF6000IF Tightening Controller

Technical SpecificationsModel:PF6000IF Brand:Atlas Copco Product Type:Power Focus 6000 IF Tightening Controller Power Supply:100-240V AC,50/60Hz Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:11.75kg Dimension:395mm225mm430mm

System compatibilityPF6000IF belongs to Atlas Copco Power Focus 6000 IF series tightening controller. It supports up to 6 Atlas Copco Tensor series electric nutrunner tools via virtual station technology. It can connect with PLC, DCS and MES system over Ethernet/IP, Profinet and Open Protocol for fastening data upload, result traceability and remote program control.

FunctionPF6000IF is a high precision torque-angle control unit for automated bolt assembly. It runs multi-step tightening strategies, monitors torque and angle curve in real time and judges OK/NOK fastening results. Each virtual station operates independently with separate tightening programs. It stores complete fastening records, supports IAM memory module for parameter backup, and built-in Web HMI for remote configuration. It is widely applied in automotive and heavy machinery assembly lines.

InstallationCut off power before installation. Mount the controller inside electrical cabinet. Connect AC power cable, tool motor cable and network communication cable. Configure tightening programs, torque limits and fieldbus parameters via ToolsTalk2 software. Complete tool calibration and test tightening before online operation.

InterfaceTool drive ports, 24V digital I/O terminals, Ethernet port, Profinet / Ethernet/IP fieldbus interface, front touch screen, status LED indicators, emergency stop terminal.

FeatureAtlas Copco Power Focus 6000 IF tightening controller, multi virtual station, support up to six tools, high precision torque-angle monitoring, Open Protocol, Web HMI remote access, IAM data storage module, modular license management, IP20 cabinet protection. Obsolete legacy spare part, used for assembly line bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening deviation over limit: verify tool calibration, tightening program and mechanical joint condition. Network communication failure: check Ethernet cable, IP address and fieldbus configuration.

Product BriefAtlas Copco PF6000IF Power Focus 6000 IF torque tightening controller, widely used in automotive and machinery assembly production lines for multi-tool precision bolt fastening control.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
