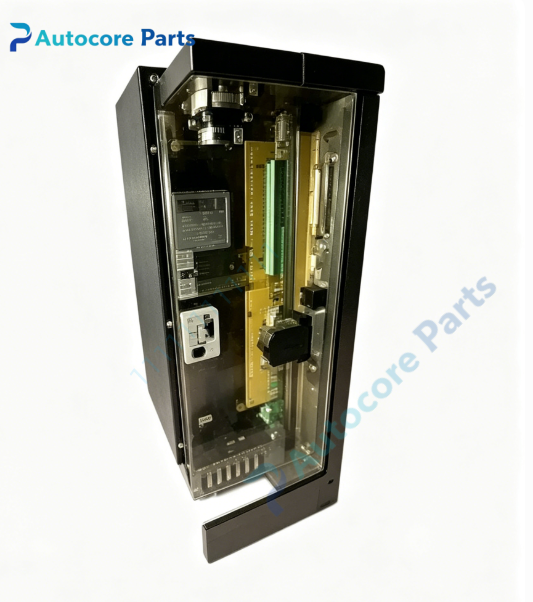

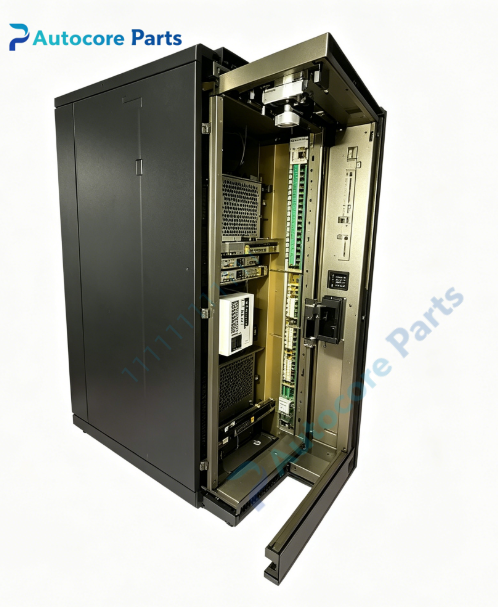

Atlas Copco PF-3110S-S4/7 Tightening Controller

Technical SpecificationsModel:PF-3110S-S4/7 Brand:Atlas Copco Product Type:PF3110S Series Tightening Controller Power Supply:100-240V AC,50/60Hz,300W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:9.7kg Dimension:410mm310mm165mm

System compatibilityPF-3110S-S4/7 belongs to Atlas Copco PF3110S series single-tool tightening controller. Compatible with Tensor S4 and Tensor S7 series electric nutrunner tools. It is standard version with reserved communication expansion slot. This torque controller can communicate with PLC and MES system for fastening result upload, production traceability and remote parameter control, ideal for single tool assembly control applications as an industrial spare part.

FunctionPF-3110S-S4/7 is compact torque controller unit for automated bolt assembly. This Atlas Copco PF3110S tightening controller supports multi-step tightening sequences, real-time torque-angle curve monitoring and OK/NOK fastening judgement. It stores fastening history records and supports parameter backup, built-in emergency stop safety relay, widely used for single tool assembly control at automotive component and general machinery assembly stations, serving as reliable industrial spare part.

InstallationCut off power before installation. Mount the PF-3110S-S4/7 Atlas Copco tightening controller inside electrical cabinet. Connect AC power and tool motor cable. Install optional communication module as required. Configure tightening programs via ToolsTalk software. Complete tool calibration and test tightening before online operation of this PF3110S torque controller.

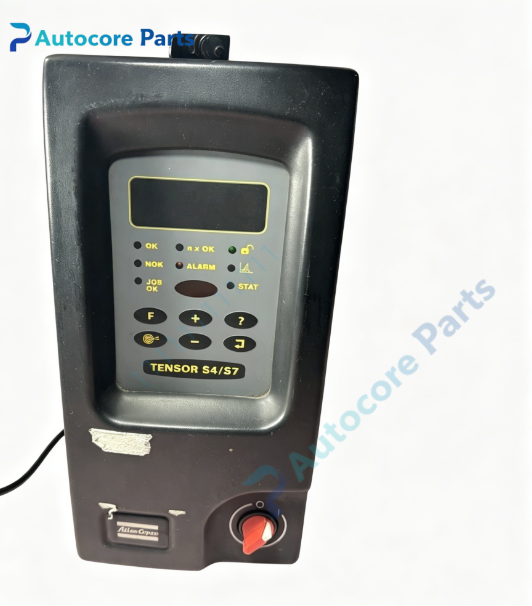

InterfaceSingle tool drive port, 24V digital I/O terminals, communication expansion slot, basic front operation panel, status LED indicators, E-stop safety relay terminal for PF-3110S-S4/7 Atlas Copco tightening controller.

FeatureAtlas Copco PF3110S torque controller, standard version, modular communication expansion design, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data storage, IP20 cabinet protection. This discontinued legacy industrial spare part is used for single station bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring for PF-3110S-S4/7. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition of this tightening controller. Communication abnormal: check communication module, bus cable, node address and PLC configuration of the Atlas Copco torque controller. Front panel display fault: check internal display connector and controller firmware.

Product BriefPF-3110S-S4/7 is Atlas Copco PF3110S series tightening controller. This torque controller widely used in automotive and machinery assembly production lines for single tool assembly control, supports optional communication module for factory network communication, popular industrial spare part for bolt fastening control.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
