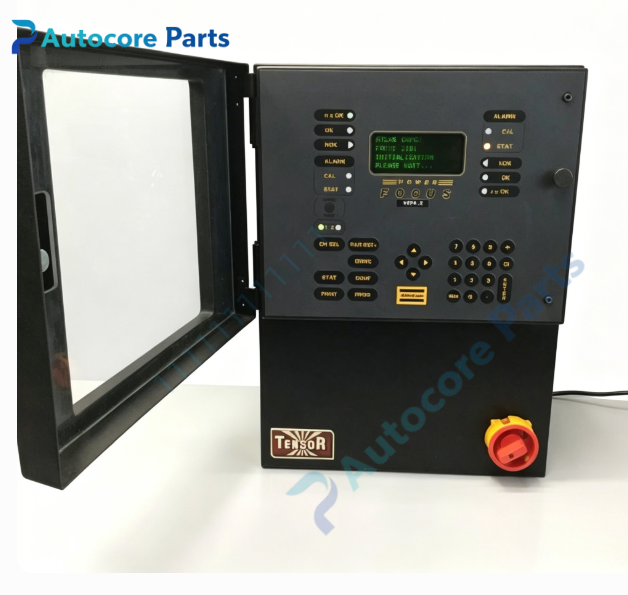

Atlas Copco PF2101S7-2 Tightening Controller

Technical Specifications

Model:PF2101S7-2 Brand:Atlas Copco Product Type:PF2101 Series Tightening Controller Power Supply:100-240V AC,50/60Hz,280W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:9.5kg Dimension:410mm310mm165mm

System compatibility

PF2101S7-2 belongs to Atlas Copco PF2101 series single-tool tightening controller. Compatible with matched electric nutrunner tools. This torque controller can communicate with PLC and MES system for fastening result upload, production traceability and remote parameter control, ideal for single tool assembly control applications as an industrial spare part.

Function

PF2101S7-2 is compact torque controller unit for automated bolt assembly. This Atlas Copco PF2101 tightening controller supports multi-step tightening sequences, real-time torque-angle curve monitoring and OK/NOK fastening judgement. It stores fastening history records and supports parameter backup, built-in emergency stop safety relay, widely used for single tool assembly control at automotive component and general machinery assembly stations, serving as reliable industrial spare part.

Installation

Cut off power before installation. Mount the PF2101S7-2 Atlas Copco tightening controller inside electrical cabinet. Connect AC power, tool motor cable and signal wiring. Configure tightening programs via ToolsTalk software. Complete tool calibration and test tightening before online operation of this PF2101 torque controller.

Interface

Single tool drive port, 24V digital I/O terminals, communication expansion slot, basic front operation panel, status LED indicators, E-stop safety relay terminal for PF2101S7-2 Atlas Copco tightening controller.

Feature

Atlas Copco PF2101 torque controller, modular communication expansion design, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data storage, IP20 cabinet protection. This discontinued legacy industrial spare part is used for single station bolt tightening system maintenance and replacement.

Diagnostic

Controller no power: check AC input, fuse and wiring for PF2101S7-2. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition of this tightening controller. Communication abnormal: check communication module, bus cable, node address and PLC configuration of the Atlas Copco torque controller. Front panel display fault: check internal display connector and controller firmware.

Product Brief

PF2101S7-2 is Atlas Copco PF2101 series tightening controller. This torque controller widely used in automotive and machinery assembly production lines for single tool assembly control, supports optional communication module for factory network communication, popular industrial spare part for bolt fastening control.
