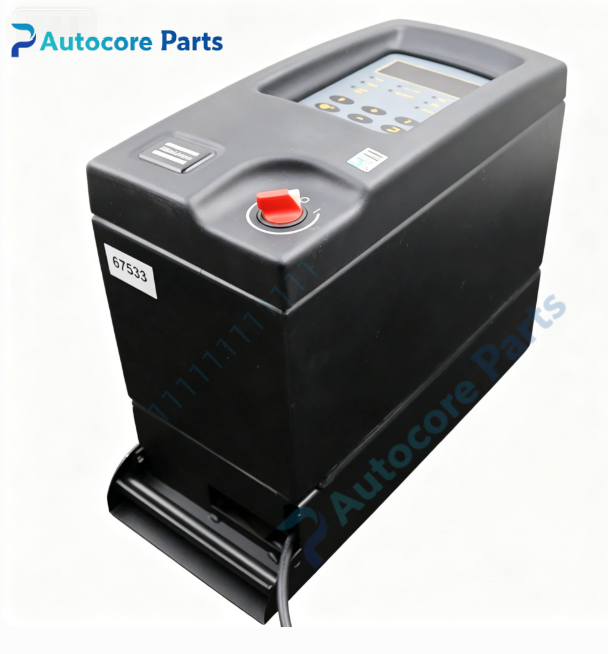

Atlas Copco PF3107-C-IB2-HW Tightening Controller

Technical SpecificationsModel:PF3107-C-IB2-HW Brand:Atlas Copco Product Type:Tensor3-7 Basic Tightening Controller with IB2 Bus Power Supply:90-120/180-240V AC,50/60Hz,300W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:9.8kg Dimension:410mm310mm165mm

System compatibilityPF3107-C-IB2-HW belongs to Atlas Copco Tensor3-7 series single-tool tightening controller. Compatible with Tensor3 / Tensor7 series electric nutrunner tools. It is C basic version without Graph HMI, built-in IB2 fieldbus interface. This torque controller can communicate with PLC and MES system for fastening result upload, production traceability and remote parameter control, ideal for single tool assembly control applications as an industrial spare part.

FunctionPF3107-C-IB2-HW is compact torque controller unit for automated bolt assembly. This Atlas Copco Tensor3-7 tightening controller supports multi-step tightening sequences, real-time torque-angle curve monitoring and OK/NOK fastening judgement. It stores fastening history records and supports parameter backup, built-in emergency stop safety relay, widely used for single tool assembly control at automotive component and general machinery assembly stations, serving as reliable industrial spare part.

InstallationCut off power before installation. Mount the PF3107-C-IB2-HW Atlas Copco tightening controller inside electrical cabinet. Connect AC power, tool motor cable and IB2 fieldbus communication cable. Configure tightening programs via ToolsTalk software. Complete tool calibration and test tightening before online operation of this Tensor3-7 torque controller.

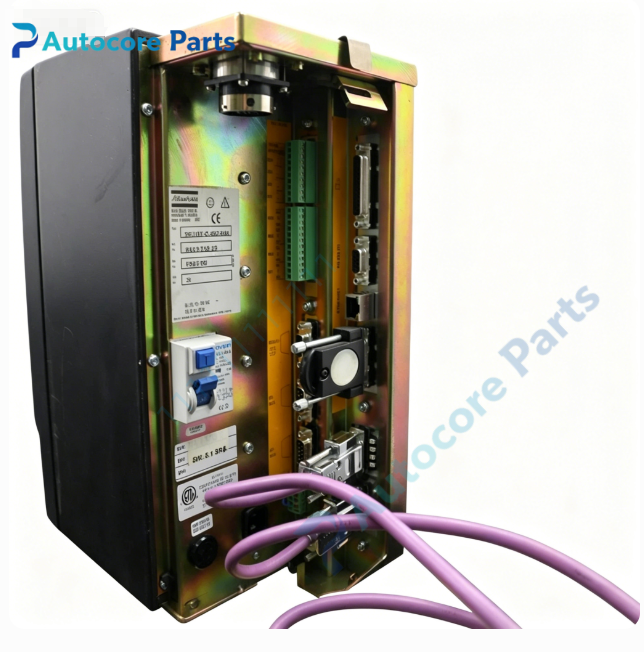

InterfaceSingle tool drive port, 24V digital I/O terminals, IB2 bus port, basic front operation panel, status LED indicators, E-stop safety relay terminal for PF3107-C-IB2-HW Atlas Copco tightening controller.

FeatureAtlas Copco Tensor3-7 torque controller, C basic version, built-in IB2 communication interface, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data storage, IP20 cabinet protection. This discontinued legacy industrial spare part is used for single station bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring for PF3107-C-IB2-HW. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition of this tightening controller. IB2 bus communication abnormal: check bus cable, node address, PLC configuration and bus termination resistor of the Atlas Copco torque controller. Front panel display fault: check internal display connector and controller firmware.

Product BriefPF3107-C-IB2-HW is Atlas Copco Tensor3-7 series tightening controller. This torque controller widely used in automotive and machinery assembly production lines for single tool assembly control, built-in IB2 interface for factory network communication, popular industrial spare part for bolt fastening control.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
