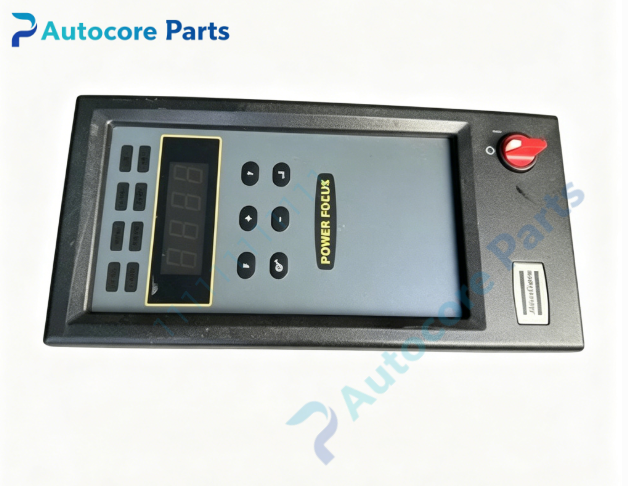

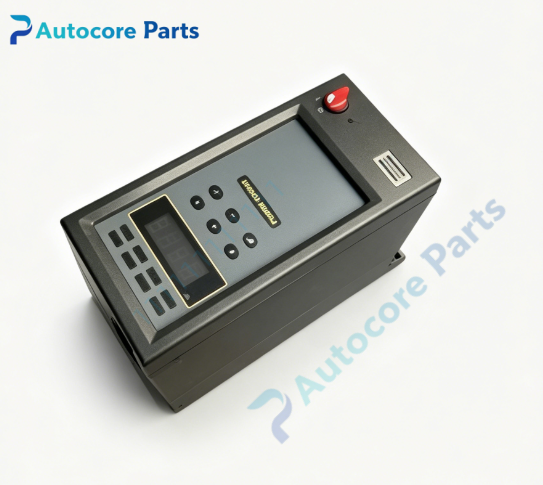

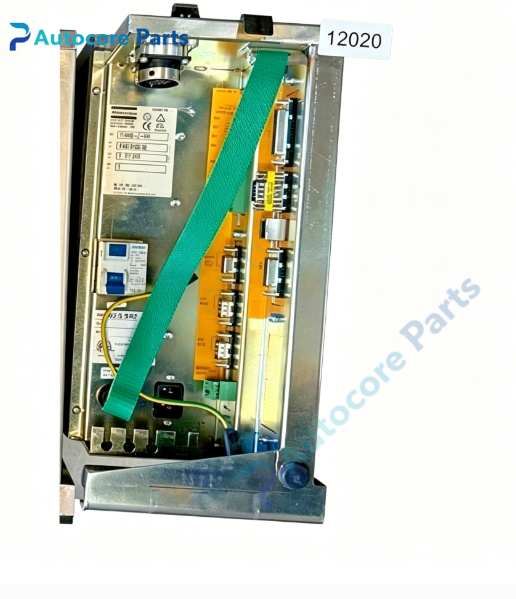

Atlas Copco PF4000-C-HW Tightening Controller

Technical SpecificationsModel:PF4000-C-HW Brand:Atlas Copco Product Type:Power Focus 4000 Basic Tightening Controller Power Supply:100-120/200-240V AC,50/60Hz,320W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:12.8kg Dimension:415mm319mm173mm

System compatibilityPF4000-C-HW belongs to Atlas Copco Power Focus 4000 series base controller. Compatible with Atlas Copco Tensor series electric nutrunner tools. It is the basic version without integrated fieldbus; fieldbus communication can be realized by installing optional communication module. It can connect with PLC and MES system after adding bus card for fastening result upload and production traceability.

FunctionPF4000-C-HW is high precision torque-angle control base unit for automated bolt assembly. It executes multi-step tightening programs, monitors torque and angle curve in real time and judges OK/NOK fastening results. It supports fastening data storage, error-proofing logic and integrated emergency stop safety relay. It can expand Profinet, DeviceNet or Profibus DP by inserting optional fieldbus module, widely used for automotive and heavy machinery assembly lines.

InstallationCut off power before installation. Mount controller inside electrical cabinet. Connect AC power, tool motor cable and signal wiring. Install optional fieldbus module if needed. Configure tightening parameters via ToolsTalk software. Complete tool calibration and test tightening before online operation.

InterfaceSingle tool drive port, 24V digital I/O terminals, expansion slot for optional fieldbus module, built-in display and operation keys, status LED indicators, E-stop safety relay terminal.

FeatureAtlas Copco Power Focus 4000 base torque controller, modular fieldbus expansion design, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data traceability, error proofing function, IP20 cabinet protection. Discontinued legacy spare part, used for assembly line bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition. Fieldbus communication abnormal: check installed bus module, bus cable, node address and PLC configuration.

Product BriefAtlas Copco PF4000-C-HW is Power Focus 4000 basic torque tightening controller, widely used in automotive and machinery assembly production lines for bolt fastening control, supports optional fieldbus module for factory network communication.
