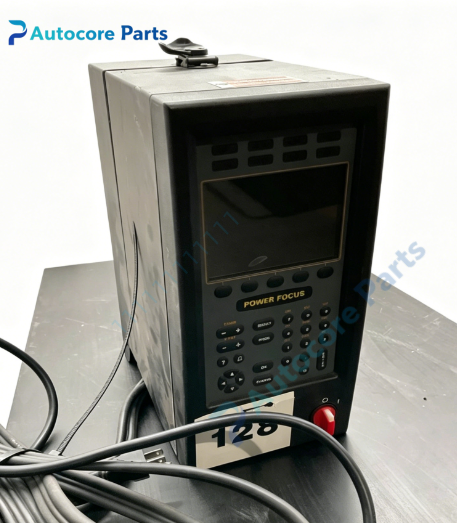

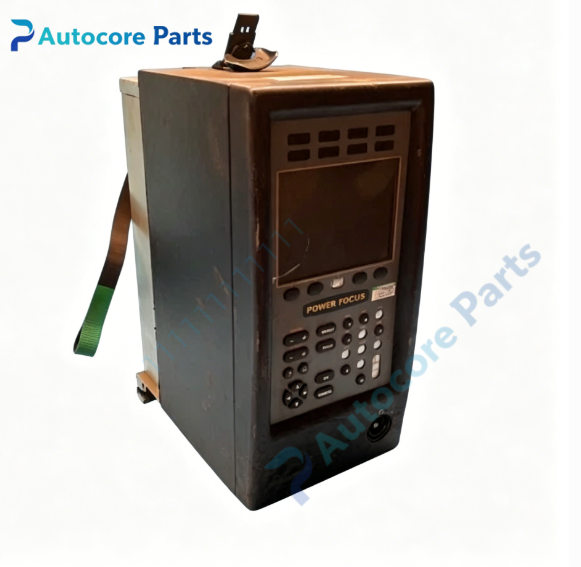

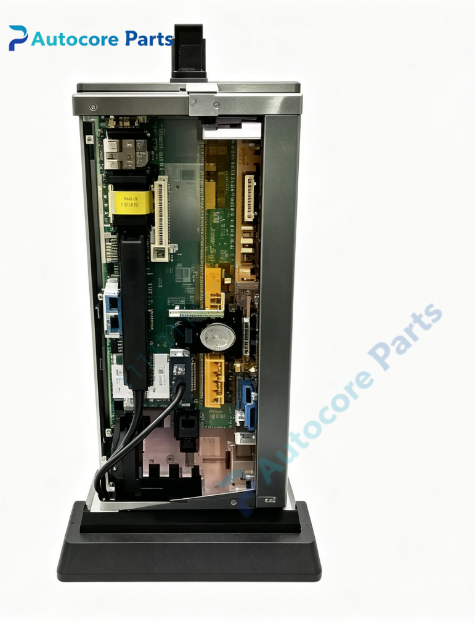

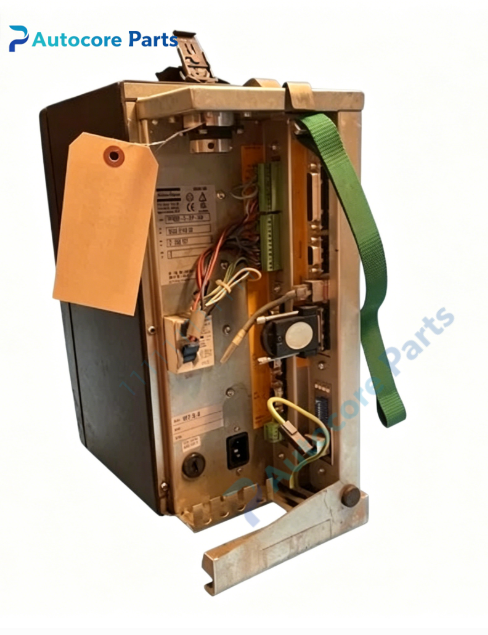

Atlas Copco PF4000-G-EIP-HW Tightening Controller

Technical SpecificationsModel:PF4000-G-EIP-HW Brand:Atlas Copco Product Type:Power Focus 4000 Graph Tightening Controller with Ethernet/IP Power Supply:100-120/200-240V AC,50/60Hz,320W Mounting:Cabinet rack mount Operating temperature:5℃ ~ +40℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:12.0kg Dimension:415mm319mm173mm

System compatibilityPF4000-G-EIP-HW belongs to Atlas Copco Power Focus 4000 series single-tool tightening controller. Compatible with Atlas Copco Tensor series electric nutrunner tools. It is G version equipped with Graph local HMI, built-in Ethernet/IP fieldbus interface. It can communicate with PLC and MES system for fastening result upload, production traceability and remote parameter control.

FunctionPF4000-G-EIP-HW is high precision torque-angle control unit for automated bolt assembly. It executes multi-step tightening programs, monitors torque and angle curve in real time and judges OK/NOK fastening results. Integrated Graph HMI supports standalone local program editing and parameter adjustment without external PC. The onboard Ethernet/IP interface enables high-speed bi-directional data exchange with upper automation systems. It supports fastening data storage, parameter backup and integrated emergency stop safety relay, widely used for automotive and heavy machinery assembly lines.

InstallationCut off power before installation. Mount controller inside electrical cabinet. Connect AC power, tool motor cable and Ethernet/IP network cable. Configure tightening parameters and IP address via local Graph panel or ToolsTalk software. Complete tool calibration and test tightening before online operation.

InterfaceSingle tool drive port, 24V digital I/O terminals, Ethernet/IP port, built-in Graph HMI operation panel, status LED indicators, E-stop safety relay terminal.

FeatureAtlas Copco Power Focus 4000 torque controller, G version with Graph HMI, built-in Ethernet/IP communication interface, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data traceability, error proofing function, IP20 cabinet protection. Discontinued legacy spare part, used for assembly line bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition. Ethernet/IP communication loss: check network cable, IP address, PLC configuration and switch status. HMI display fault: check internal display connector and controller firmware.

Product BriefAtlas Copco PF4000-G-EIP-HW is Power Focus4000 Graph Ethernet/IP torque tightening controller, widely used in automotive and machinery assembly production lines for bolt fastening control, on-site program setup and factory Ethernet/IP network communication.
