Atlas Copco PF4000 Tightening Controller

Technical SpecificationsModel:PF4000 Brand:Atlas Copco Product Type:Power Focus 4000 Series Tightening Controller Power Supply:100-120/200-240V AC,50/60Hz,320W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:12.8kg Dimension:415mm319mm173mm

System compatibilityPF4000 belongs to Atlas Copco Power Focus 4000 series single-tool tightening controller. Compatible with Atlas Copco Tensor series electric nutrunner tools. This series includes multiple variants: basic C version without HMI, G version with Graph local HMI; optional fieldbus modules including Profinet, Profibus DP, DeviceNet. It can communicate with PLC and MES system for fastening result upload, production traceability and remote parameter control.

FunctionPF4000 is high precision torque-angle control unit for automated bolt assembly. It executes multi-step tightening programs, monitors torque and angle curve in real time and judges OK/NOK fastening results. It supports fastening data storage, error-proofing logic and integrated emergency stop safety relay. It can be equipped with Graph HMI for local program editing, widely used for automotive and heavy machinery assembly lines.

InstallationCut off power before installation. Mount controller inside electrical cabinet. Connect AC power, tool motor cable and communication wiring. Install optional fieldbus module if required. Configure tightening parameters via local Graph panel or ToolsTalk software. Complete tool calibration and test tightening before online operation.

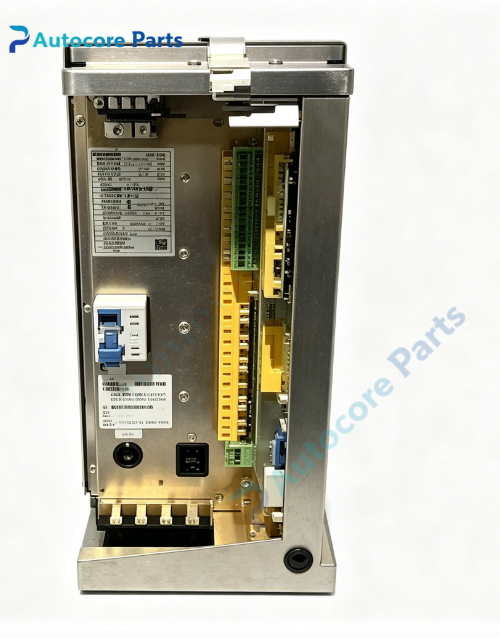

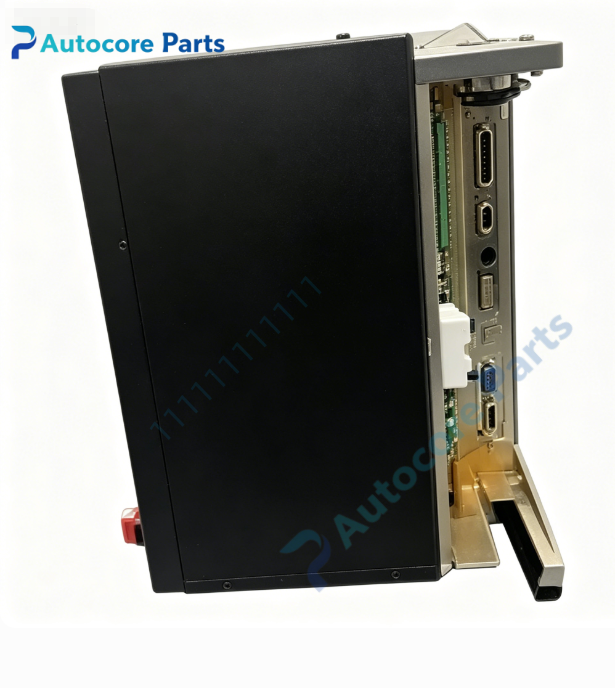

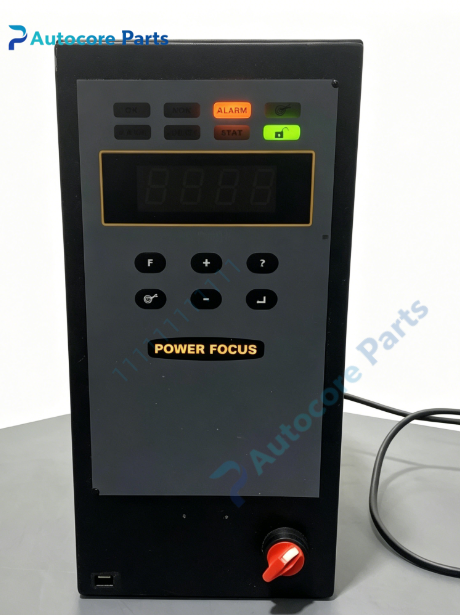

InterfaceSingle tool drive port, 24V digital I/O terminals, fieldbus expansion slot or built-in fieldbus port, basic display or Graph HMI panel, status LED indicators, E-stop safety relay terminal.

FeatureAtlas Copco Power Focus 4000 torque controller, modular hardware selection (C / Graph HMI), optional multi-type fieldbus, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data traceability, error proofing function, IP20 cabinet protection. Discontinued legacy spare part, used for assembly line bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition. Fieldbus communication loss: check bus cable, node address, PLC configuration and bus termination resistor. HMI display fault: check internal display connector and controller firmware.

Product BriefAtlas Copco PF4000 Power Focus 4000 torque tightening controller, widely used in automotive and machinery assembly production lines for bolt fastening control, available in multiple configurations with optional HMI and fieldbus.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
