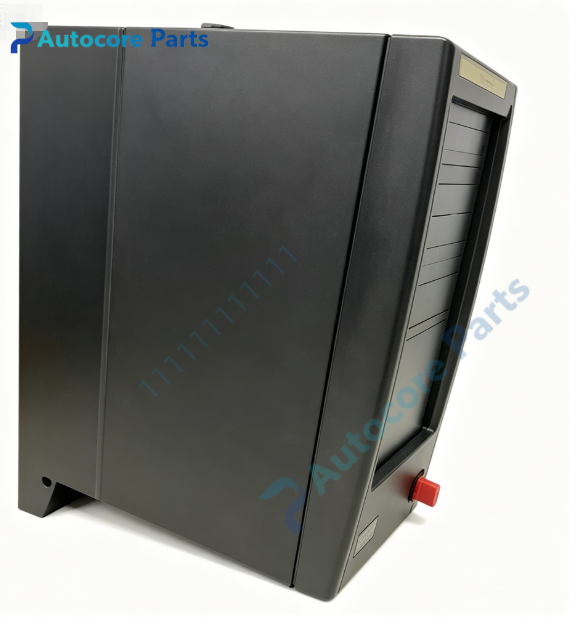

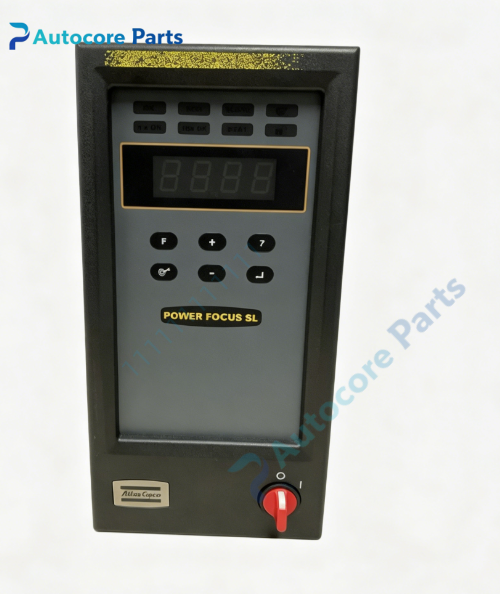

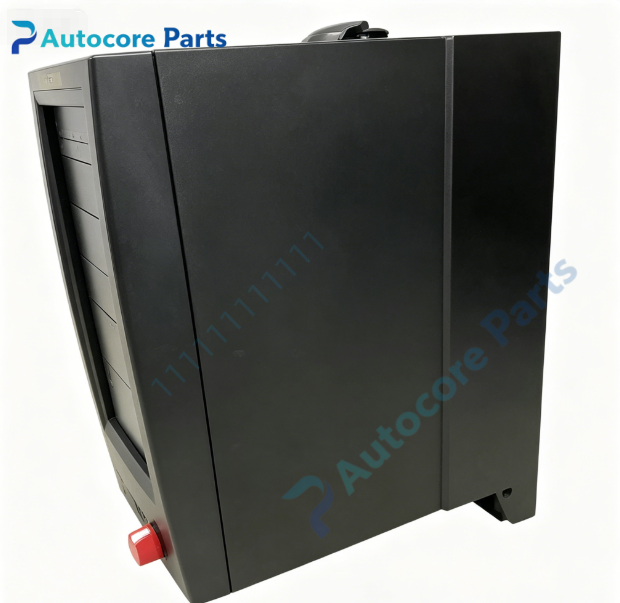

Atlas Copco PF4002-C-HU Tightening Controller

Technical Specifications

Model:PF4002-C-HU Brand:Atlas Copco Product Type:Power Focus 4002 Basic Tightening Controller Power Supply:100-240V AC,50/60Hz,320W Mounting:Cabinet rack mount Operating temperature:5℃ ~ +40℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:11.6kg Dimension:415mm319mm173mm

System compatibility

PF4002-C-HU belongs to Atlas Copco Power Focus 4002 series single-tool tightening controller. Compatible with corresponding electric nutrunner tools. It is C basic version without Graph HMI, reserved fieldbus expansion slot. This torque controller can communicate with PLC and MES system for fastening result upload, production traceability and remote parameter control, ideal for single tool assembly control applications as an industrial spare part.

Function

PF4002-C-HU is compact torque controller unit for automated bolt assembly. This Atlas Copco Power Focus 4002 tightening controller supports multi-step tightening sequences, real-time torque-angle curve monitoring and OK/NOK fastening judgement. It stores fastening history records and supports parameter backup, built-in emergency stop safety relay, widely used for single tool assembly control at automotive component and heavy machinery assembly stations, serving as reliable industrial spare part.

Installation

Cut off power before installation. Mount the PF4002-C-HU Atlas Copco tightening controller inside electrical cabinet. Connect AC power, tool motor cable and signal wiring. Install optional fieldbus module if required. Configure tightening programs via ToolsTalk software. Complete tool calibration and test tightening before online operation of this Power Focus 4002 torque controller.

Interface

Single tool drive port, 24V digital I/O terminals, fieldbus expansion slot, basic front operation panel, status LED indicators, E-stop safety relay terminal for PF4002-C-HU Atlas Copco tightening controller.

Feature

Atlas Copco Power Focus 4002 torque controller, C basic version, modular fieldbus expansion design, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data storage, IP20 cabinet protection. This discontinued legacy industrial spare part is used for single station bolt tightening system maintenance and replacement.

Diagnostic

Controller no power: check AC input, fuse and wiring for PF4002-C-HU. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition of this tightening controller. Communication abnormal: check communication module, bus cable, node address and PLC configuration of the Atlas Copco torque controller. Front panel display fault: check internal display connector and controller firmware.

Product Brief

PF4002-C-HU is Atlas Copco Power Focus 4002 series tightening controller. This torque controller widely used in automotive and machinery assembly production lines for single tool assembly control, supports optional communication module for factory network communication, popular industrial spare part for bolt fastening control.
