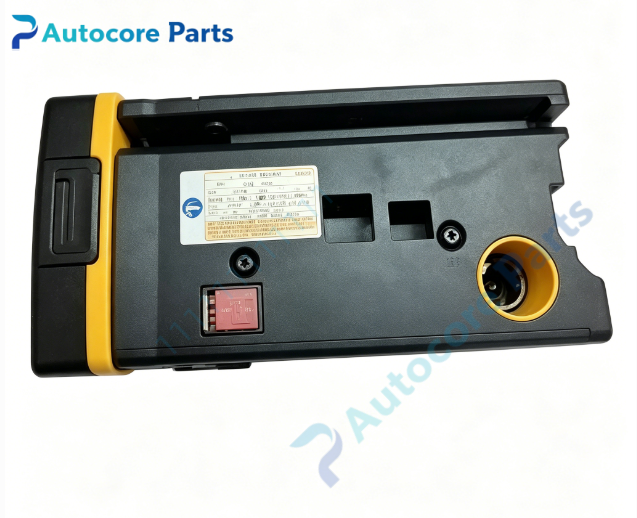

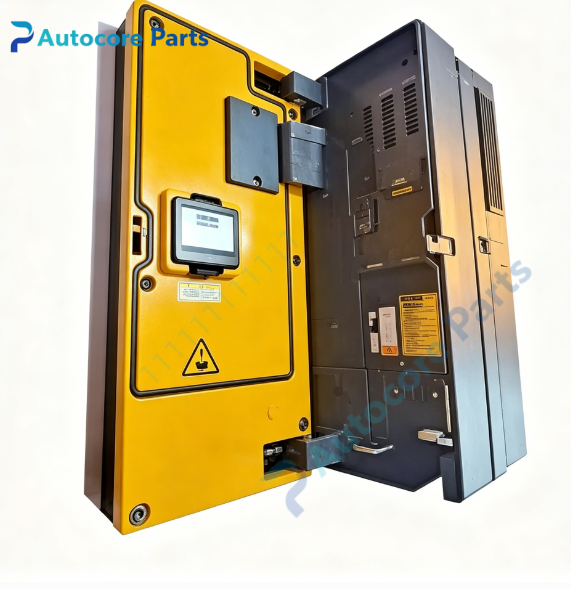

Atlas Copco PF600 Tightening Controller

Technical SpecificationsModel:PF600 Brand:Atlas Copco Product Type:Power Focus 600 Compact Tightening Controller Power Supply:100-240V AC,50/60Hz,250W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:7.8kg Dimension:380mm290mm155mm

System compatibilityPF600 belongs to Atlas Copco Power Focus 600 series compact single-tool tightening controller. Compatible with Atlas Copco Tensor series small electric nutrunner tools. Supports multiple communication options including serial communication and optional fieldbus module. It can communicate with PLC and MES system for fastening result upload, production traceability and remote parameter control.

FunctionPF600 is compact high precision torque-angle control unit for automated bolt assembly. It supports multi-step tightening sequences, real-time torque-angle curve monitoring and OK/NOK fastening judgement. It stores fastening history records and supports parameter backup, built-in emergency stop safety relay. Suitable for small component assembly stations in automotive and general machinery production.

InstallationCut off power before installation. Mount controller inside electrical cabinet. Connect AC power, tool cable and signal wiring. Configure tightening programs via front panel or ToolsTalk software. Complete tool calibration and test tightening before online operation.

InterfaceSingle tool drive port, 24V digital I/O terminals, communication expansion port, basic front operation panel, status LED indicators, E-stop safety relay terminal.

FeatureAtlas Copco Power Focus600 compact torque controller, single tool control, small footprint design, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data storage, IP20 cabinet protection. Legacy assembly controller, used for single station bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool no rotation: inspect tool cable, connector and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition. Communication abnormal: check communication cable, node address and PLC configuration. Front panel display fault: check internal display connector and controller firmware.

Product BriefAtlas Copco PF600 Power Focus600 compact torque tightening controller, widely used in automotive and machinery assembly production lines for single station bolt fastening control.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
