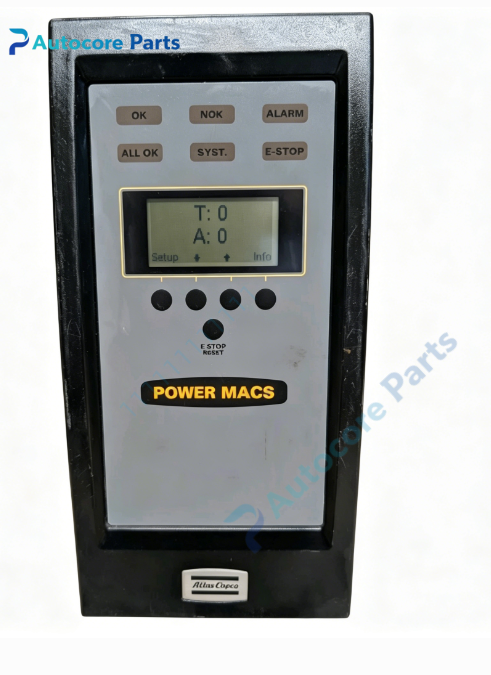

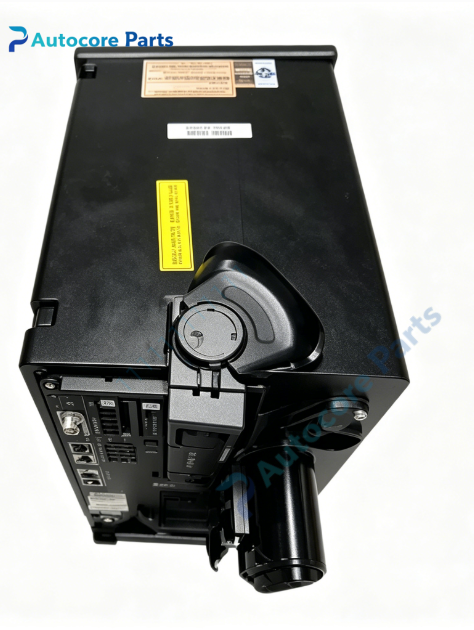

Atlas Copco TC-4000-P-EIP-ES Tightening Controller

Technical SpecificationsModel:TC-4000-P-EIP-ES Brand:Atlas Copco Product Type:PowerMACS 4000 Master Tightening Controller with EtherNet/IP Part No:8435 6511 60 Power Supply:380-480V AC 3-phase,50/60Hz,500W Mounting:Cabinet rack mount Operating temperature:5℃ ~ +50℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:8.79kg Dimension:298mm146mm316mm Protection:IP43

System compatibilityTC-4000-P-EIP-ES belongs to Atlas Copco PowerMACS 4000 series multi-spindle tightening master controller, capable of coordinating multiple TC-4000-S slave units. Compatible with QST series multi-axis tightening spindles for fixed fixture assembly stations. It is P master version equipped with built-in EtherNet/IP fieldbus interface, supporting connection to Rockwell PLC systems. This controller can upload tightening results and traceability data to PLC and MES system, ideal for multi-spindle synchronous tightening in automotive assembly lines as industrial spare part.

FunctionTC-4000-P-EIP-ES is master torque controller for multi-spindle fixed assembly station. This Atlas Copco PowerMACS4000 controller supports synchronous multi-axis tightening sequences, real-time torque-angle curve monitoring and OK/NOK tightening judgement. It stores tightening history records and supports parameter backup, built-in emergency stop safety relay, widely used for multi-spindle bolt assembly at automotive and heavy machinery assembly stations, serving as reliable industrial spare part.

InstallationCut off power before installation. Mount the TC-4000-P-EIP-ES Atlas Copco controller inside electrical cabinet. Connect 3-phase AC power, spindle motor cable and EtherNet/IP communication cable. Configure tightening programs via ToolsTalk PowerMACS software. Complete spindle calibration and test tightening before online operation of this PowerMACS4000 controller.

InterfaceMulti spindle drive port, digital I/O terminals, EtherNet/IP port, integrated Ethernet switch, front operation panel, status LED indicators, E-stop safety relay terminal for TC-4000-P-EIP-ES Atlas Copco tightening controller.

FeatureAtlas Copco PowerMACS4000 master controller, built-in EtherNet/IP fieldbus, integrated Ethernet switch, real-time torque-angle monitoring, built-in E-stop safety relay, tightening data storage, IP43 cabinet protection. This discontinued legacy industrial spare part is used for multi-spindle bolt tightening system maintenance and replacement.

DiagnosticController no power: check 3-phase AC input, fuse and wiring for TC-4000-P-EIP-ES. Spindle no rotation: check spindle cable, motor winding and enable signal. Tightening result deviation: verify spindle calibration, tightening program and mechanical condition of this controller. EtherNet/IP communication abnormal: check network cable, IP address, PLC configuration and switch status of the Atlas Copco controller. Front panel display fault: check internal display connector and controller firmware.

Product BriefTC-4000-P-EIP-ES is Atlas Copco PowerMACS4000 series master multi-spindle tightening controller. This controller widely used in automotive and machinery assembly production lines for multi-spindle synchronous tightening, built-in EtherNet/IP interface for factory network communication, popular industrial spare part for fixture assembly system.
