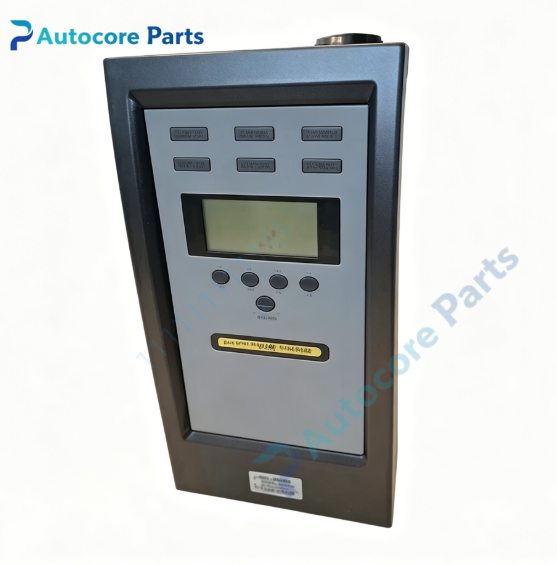

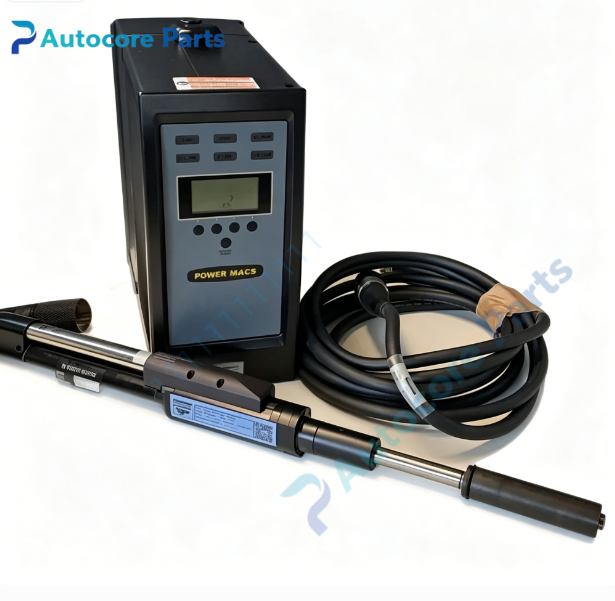

Atlas Copco TC4000-P-ES Tightening Controller

Technical SpecificationsModel:TC4000-P-ES Brand:Atlas Copco Product Type:PowerMACS4000 Master Tightening Controller,Base Version Without Fieldbus Power Supply:380-480V AC 3-phase,50/60Hz,500W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +50℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:8.74kg Dimension:428mm252mm400mm Protection:IP43 Part No:8435 6511 00

System compatibilityTC4000-P-ES belongs to Atlas Copco PowerMACS4000 series multi-spindle tightening master controller, it can coordinate multiple TC-4000-S slave controllers. Compatible with QST series multi-axis tightening spindles for fixed fixture assembly stations. It is basic master unit without onboard fieldbus interface, reserved Anybus expansion slot for optional fieldbus card. This controller can upload tightening results and traceability data to PLC and MES system, ideal for multi-spindle synchronous tightening in automotive assembly lines as industrial spare part.

FunctionTC4000-P-ES is master torque controller for multi-spindle fixed assembly station. This Atlas Copco PowerMACS4000 controller supports synchronous multi-axis tightening sequences, real-time torque-angle curve monitoring and OK/NOK tightening judgement. It stores tightening history records and supports parameter backup, built-in emergency stop safety relay, widely used for multi-spindle bolt assembly at automotive and heavy machinery assembly stations, serving as reliable industrial spare part.

InstallationCut off power before installation. Mount the TC4000-P-ES Atlas Copco controller inside electrical cabinet. Connect 3-phase AC power, spindle motor cable and LAN communication cable. Install optional fieldbus card if required. Configure tightening programs via ToolsTalk PowerMACS software. Complete spindle calibration and test tightening before online operation of this PowerMACS4000 controller.

InterfaceMulti spindle drive port, isolated digital I/O terminals, dual Ethernet ports, Anybus fieldbus expansion slot, front operation panel, status LED indicators, E-stop safety relay terminal for TC4000-P-ES Atlas Copco tightening controller.

FeatureAtlas Copco PowerMACS4000 base master controller, reserved fieldbus expansion slot, isolated dual Ethernet, real-time torque-angle monitoring, built-in E-stop safety relay, tightening data storage, IP43 cabinet protection. This discontinued legacy industrial spare part is used for multi-spindle bolt tightening system maintenance and replacement.

DiagnosticController no power: check 3-phase AC input, fuse and wiring for TC4000-P-ES. Spindle no rotation: check spindle cable, motor winding and enable signal. Tightening result deviation: verify spindle calibration, tightening program and mechanical condition of this controller. Network communication abnormal: check Ethernet cable, IP address, slave controller configuration and switch status of the Atlas Copco controller. Front panel display fault: check internal display connector and controller firmware.

Product BriefTC4000-P-ES is Atlas Copco PowerMACS4000 series master multi-spindle tightening controller. This controller widely used in automotive and machinery assembly production lines for multi-spindle synchronous tightening, with expansion slot for optional fieldbus card, popular industrial spare part for fixture assembly system.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
