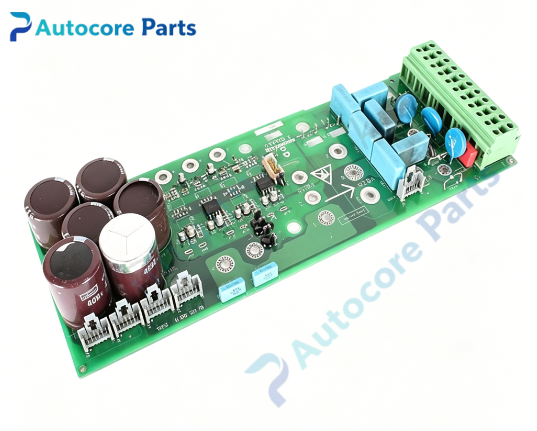

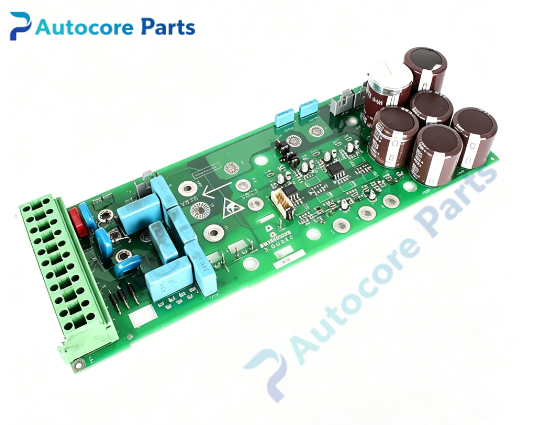

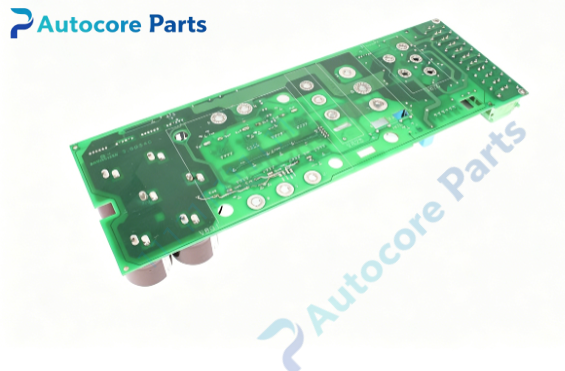

BAUMULLER 3.0034C 01.01 Current Sampling Circuit Board

Technical Specifications

Model: 3.0034C 01.01 Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Current Sampling Printed Circuit Board Mounting: Installed inside BAUMULLER b maXX series servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure)

System compatibility

3.0034C 01.01 is compatible with selected BAUMULLER b maXX servo drives. It matches power stage modules, widely used in printing, plastic extrusion, textile and metal forming machinery drive systems for component replacement during maintenance.

Function

3.0034C 01.01 is the current sampling PCB inside Baumüller servo drive. It samples three-phase motor current in real time, converts current values into analog signals and transmits them to the main control board. The drive relies on these signals to implement current closed-loop control and overcurrent protection. It replaces defective sampling boards when repairing servo drives.

Installation

Cut off all high-voltage power before disassembly. Open servo drive casing and fully discharge DC bus capacitors. Remove the old sampling board, install 3.0034C 01.01 and tighten mounting screws. Reconnect internal power and signal headers. Check wiring integrity, power on and test motor load operation before formal production.

Interface

Current sensor input pins, analog signal output header, internal power supply terminals for 3.0034C 01.01 BAUMULLER sampling board.

Feature

Original Baumüller sampling circuit board, high precision current acquisition, fast response protection, built-in noise filtering, compact internal layout, industrial anti-vibration design. This legacy spare part used for on-site maintenance of old BAUMULLER servo drive systems.

Diagnostic

Drive overcurrent alarm after replacement: check sensor wiring and board calibration for 3.0034C 01.01. Motor torque imbalance: inspect three-phase signal amplitude consistency. Intermittent current reading jump: verify solder joints and shielding cable condition.

Product Brief

3.0034C 01.01 is German BAUMULLER current sampling PCB for b maXX servo drives. It captures motor phase current for closed-loop torque control, classic spare part for legacy BAUMULLER machine drive overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
