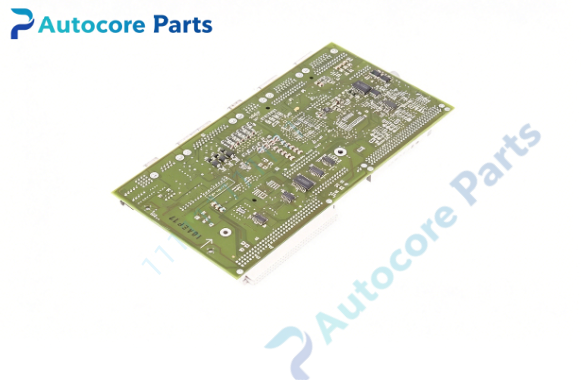

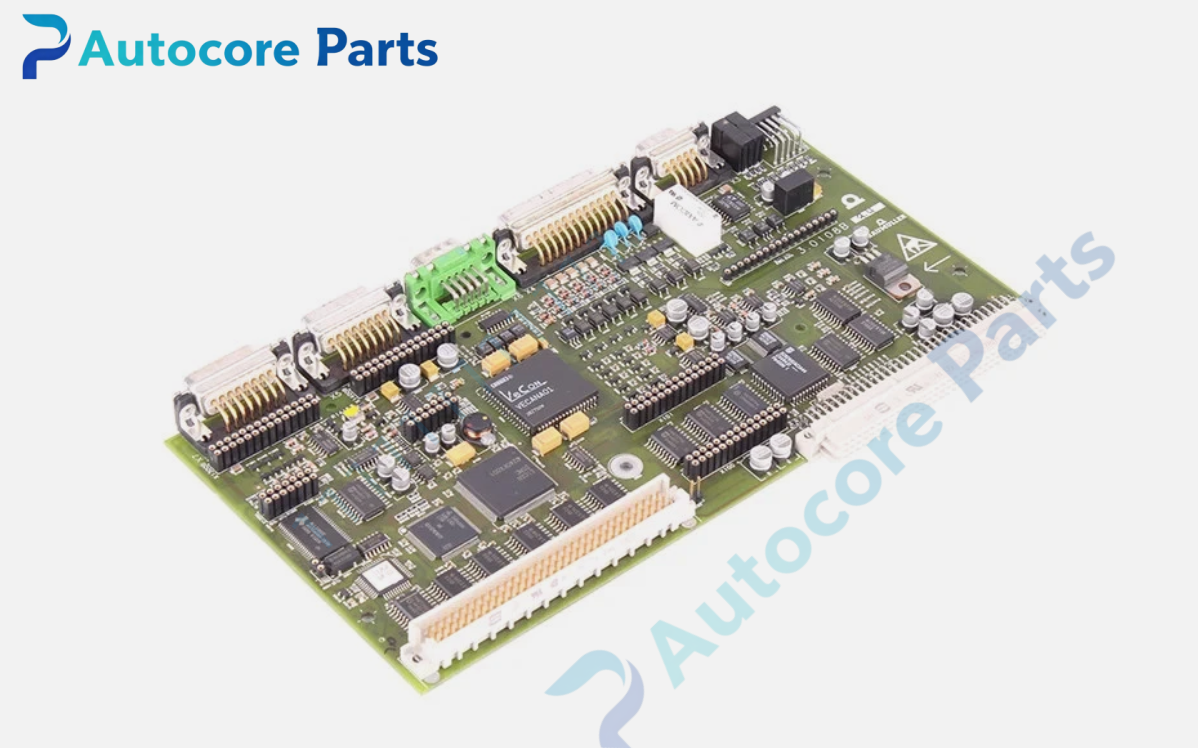

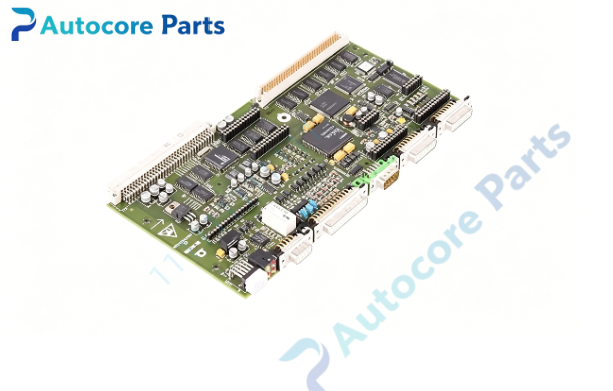

BAUMULLER 3.0108B2.4 Servo Drive Main Control Board

Technical Specifications

Model: 3.0108B2.4 (alternate marking: 30108B24) Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Main Control Printed Circuit Board Mounting: Installed inside BAUMULLER servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure) Power supply: 24V DC

System compatibility

3.0108B2.4 is compatible with BAUMULLER old-generation servo drives. It matches corresponding power stage and feedback sampling modules, widely used in printing, metal forming, plastic extrusion and textile production equipment for control board replacement.

Function

3.0108B2.4 is the core mainboard inside Baumüller servo drive. It executes digital motion control logic, stores drive parameter sets, and processes feedback signals from resolver or encoder. It outputs control commands to power modules, monitors real-time drive operating status and triggers fault alarms. It is used to replace damaged mainboards when the drive loses motion control or cannot boot normally.

Installation

Cut off all high-voltage power before disassembly. Open servo drive casing and fully discharge DC bus capacitors. Remove the old mainboard, install 3.0108B2.4 and secure mounting screws. Reconnect internal edge connectors and external signal terminals. Check wiring definition, download matching parameters, test motor operation before formal production.

Interface

Edge connectors, multi-channel pin headers, parameter memory port, status LED indicators for BAUMULLER 3.0108B2.4 mainboard.

Feature

Original Baumüller mainboard, multi-layer FR4 PCB, conformal coating protection, robust anti-vibration soldering, stable digital signal processing, compact internal cabinet layout. This legacy spare part is used for on-site repair of old BAUMULLER servo drive control systems.

Diagnostic

Drive boot failure after replacement: check edge connector contact and 24V power supply for 3.0108B2.4. Parameter cannot be saved: inspect memory chip and board solder joints. Intermittent random fault codes: verify signal wiring and cabinet grounding condition.

Product Brief

3.0108B2.4 is German BAUMULLER servo drive main control PCB. It realizes digital motion logic operation and parameter storage, classic spare part for legacy BAUMULLER industrial machine drive overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
