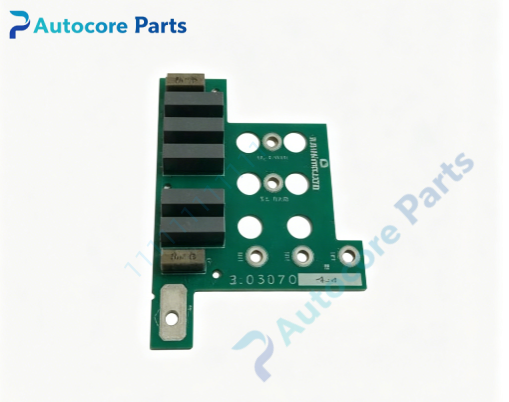

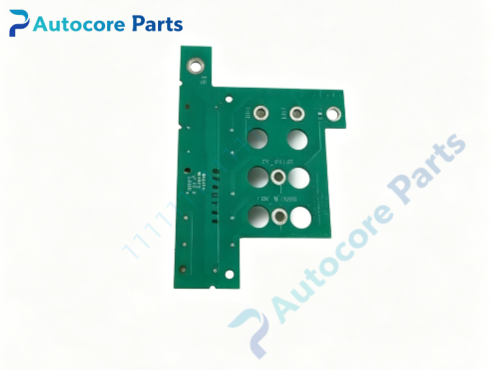

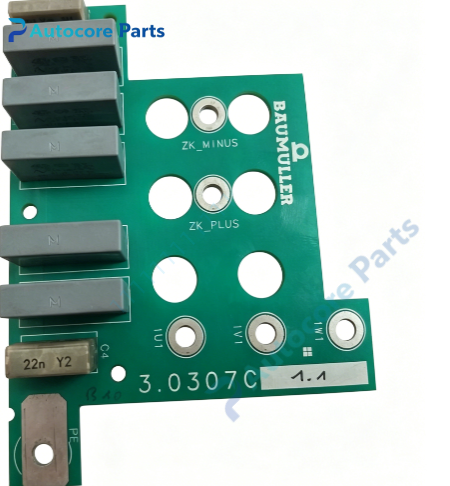

BAUMULLER 3.0307C Servo Drive Control Printed Circuit Board

Technical Specifications

Model: 3.0307C Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Control Printed Circuit Board Mounting: Installed inside BAUMULLER BUM60 series servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure) Power supply: 24V DC Weight: 0.40 kg

System compatibility

3.0307C is a dedicated control board for BAUMULLER BUM60 servo drives. It matches corresponding power modules and feedback sampling boards, widely used in printing, metal forming, plastic extrusion and textile machinery for control board replacement during overhaul.

Function

3.0307C is the core control PCB inside Baumüller BUM60 servo drive. It executes digital motion control logic, stores drive parameter sets, and collects position feedback signals from resolver or encoder. It outputs control instructions to power stage modules, monitors real-time drive operating status and activates protection signals once faults are detected. It is used to replace damaged control boards when the servo drive loses motion control function.

Installation

Cut off all high-voltage power before disassembly. Open servo drive casing and fully discharge DC bus capacitors. Remove the old control board, install 3.0307C and secure mounting screws. Reconnect internal edge connectors and external signal terminals. Check wiring definition, download matching parameters, test motor running performance before formal production.

Interface

Edge connectors, multi-channel pin headers, parameter memory port, status LED indicators for 3.0307C BAUMULLER control board.

Feature

Original Baumüller control circuit board, multi-layer FR4 substrate, conformal coating protection, vibration-resistant soldering craftsmanship, stable multi-channel signal processing, compact internal installation layout. This legacy spare part supports field repair of old BAUMULLER BUM60 servo drive systems.

Diagnostic

Drive boot failure after replacement: check edge connector contact and 24V power supply for 3.0307C. Motor motion irregularity: verify feedback wiring polarity and parameter compatibility. Intermittent fault code popping: inspect solder joint integrity and cabinet grounding condition.

Product Brief

3.0307C is German BAUMULLER control PCB for BUM60 servo drives. It executes motion control logic and position feedback processing for closed-loop servo operation, classic spare part for legacy BAUMULLER industrial machine drive overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
