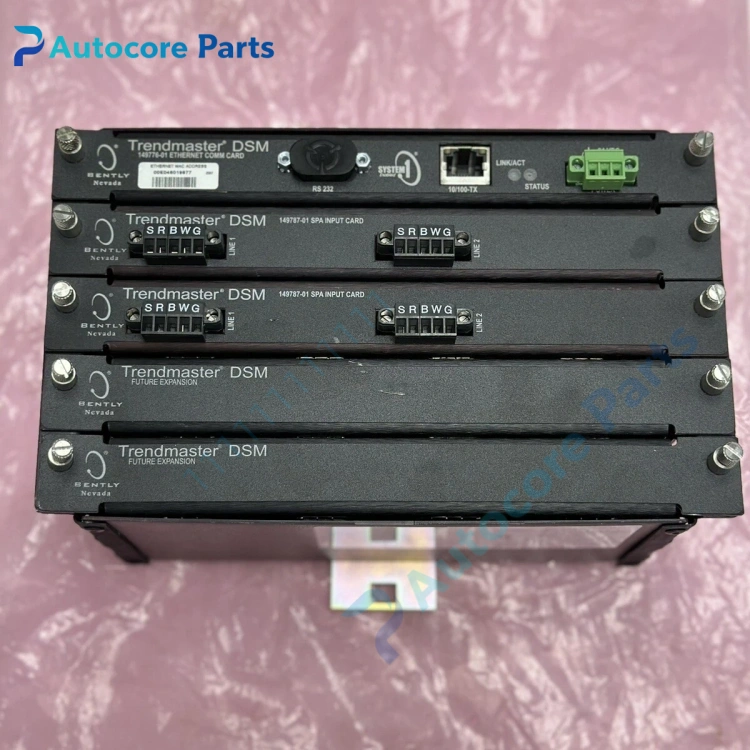

Bently Nevada 149776-01 Ethernet Communication Card

Feature & Principle

It collects vibration and process data from DSM rack, converts internal bus signals into standard Ethernet signals, uploads data to System 1 monitoring software. Auto-negotiation for 10M/100M network speed, tri-color LED indicates link status and module health. It supports up to 6 Modbus TCP clients for upper system data access.

Specifications

Model: 149776-01 Brand: Bently Nevada Interface: RJ45 Rate: 10Base-T / 100Base-TX auto negotiate Protocol: TCP/IP, Modbus over TCP/IP Cable: Cat5, max 100m Compatible system: System 1 Classic 6.X, System 1 Evo 20.1+ Mounting: Rack plug-in Certification: CE

Components & Diagnostics

Main circuit board, RJ45 connector, network transceiver chip, status LED indicator, rack terminal. Common faults: network link failure, no data upload, Modbus communication timeout, indicator abnormal, port damage.

Product Brief

149776-01 ethernet communication card, Bently Nevada monitoring spare widely used for steam turbine, gas turbine and rotating equipment online vibration monitoring cabinet replacement.
