Bently Nevada 3500/45 Position Monitor Module

Technical Specifications

Model:3500/45

Brand:Bently Nevada

Product Type:4‑channel position monitor front‑panel module

Mainboard PN:176449‑04

Matching I/O Sub‑board:

01‑Position I/O internal terminal(prox/RPT/DC‑LVDT)

02‑Position I/O external terminal(prox/RPT/DC‑LVDT)

03‑Discrete TMR position I/O external terminal

04‑Bussed TMR position I/O external terminal

05‑AC‑LVDT I/O internal terminal

06‑AC‑LVDT I/O external terminal

07‑Rotary potentiometer I/O internal terminal

08‑Rotary potentiometer I/O external terminal

Input Channel:Max 4 independent input channels

Supported Sensor:eddy‑current proximity probe,RPT,DC‑LVDT,AC‑LVDT,rotary potentiometer

Input Impedance:

10kΩ(proximity/RPT),1MΩ(DC‑LVDT),137kΩ(AC‑LVDT),200kΩ(potentiometer)

Supported Measurement:axial thrust position,differential expansion(single‑ramp / dual‑ramp / complementary),case expansion,valve position

Recorder Output:4‑20mA proportional output,load 0‑600Ω

Power Consumption:7.7W‑10.5W typical,supplied by 3500 rack backplane

Front‑panel LED:OK,TX/RX,Bypass

System Compatibility:Bently Nevada 3500 machinery protection rack

Remark:Channels configured in pairs;support alert / danger alarm setpoint;support TMR triple‑modular‑redundant configuration;support hot‑swap;must match corresponding rear I/O daughter‑board

Module Form:Full‑height rack‑mount plug‑in front‑panel module

Weight:0.60 kg

Dimension:241 mm×24.4 mm×242 mm

Protection Grade:IP20

Certification:UL,CSA,CE

Working Temperature:‑30℃ ~ +65℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Steam turbine,gas turbine,compressor TSI protection system,realize thrust position,differential expansion,case expansion,valve position monitoring and hardware alarm protection output,system maintenance and spare‑part replacement.

Product Details

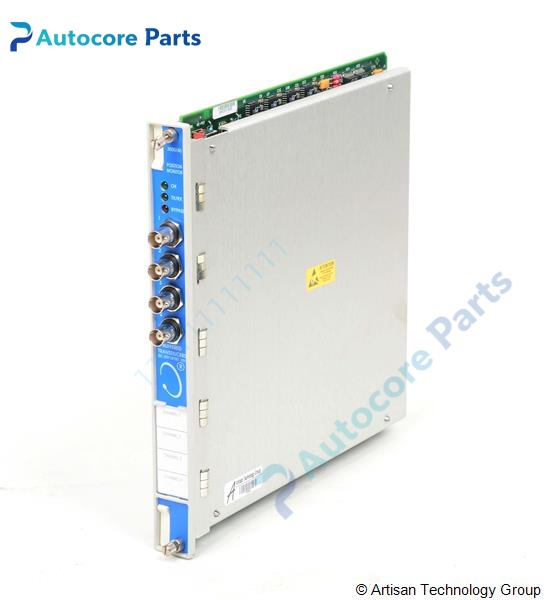

3500/45 is 4‑channel position monitor front‑panel module for Bently Nevada 3500 TSI machinery protection system. It must be equipped with matched rear I/O sub‑board and cannot operate independently.

It supports multiple sensor types,channels work in pair mode,channel 1‑2 for one measurement function,channel3‑4 for same or different function. It completes measurement calculation,alarm threshold comparison and protection interlock output via rack configuration software.

Multiple optional I/O sub‑boards for different sensor and wiring requirement,support TMR triple‑modular‑redundant architecture,front‑panel supports hot‑swap without rack power‑off. Widely used for steam turbine thrust,differential expansion and case expansion monitoring loop.

Note:This is legacy 3500 series spare component,widely used for replacement of turbine and compressor TSI monitoring & protection systems.
