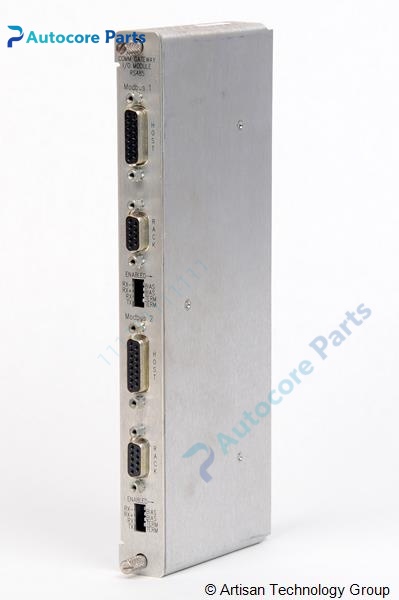

Bently Nevada 133323‑01 3500/92 Communication Gateway Module

Technical Specifications

Model: 133323‑01

Brand: Bently Nevada

Product Type: Communication gateway module(3500/92)

Interface: RJ45 Ethernet 10BASE‑T, RS232 DB9, dual RS485 DB9

Supported Protocol: Modbus TCP, Modbus RTU

Operation Mode: Modbus slave mode

Power Consumption: 5.0 W typical,supplied by 3500 rack backplane

Indicator LED: OK,TX/RX

System Compatibility: Bently Nevada 3500 machinery protection rack

Remark: Independent full‑height module,no extra I/O daughter‑board required;support hot‑swap

Module Form: Full‑height rack‑mount module

Weight: 0.44 kg

Dimension: 241 mm×24.4 mm×99.1 mm

Protection Grade: IP20

Certification: UL,CSA,CE

Working Temperature: ‑30℃ ~ +65℃,non‑condensing

Storage Temperature: ‑40℃ ~ +85℃

Humidity: 5%‑95% non‑condensing

Application: Turbine,compressor,pump,fans rotating machinery monitoring,realize data interconnection between 3500 rack and external DCS/PLC system,transmit vibration,displacement,temperature,speed and alarm status,system maintenance and spare‑part replacement.

Product Details

133323‑01 is 3500/92 communication gateway module for Bently Nevada 3500 machinery protection rack. It is an independent full‑height module without matching rear I/O sub‑board.

It supports Modbus TCP over Ethernet and dual‑channel Modbus RTU over RS485 serial bus,works as Modbus slave. It reads all measurement values,alarm status and fault information from 3500 rack,then transmits data to external DCS,PLC or host monitoring system. RS485 dual‑bus design supports redundant bus wiring for high‑reliability field site.

This gateway module does not participate in hardware protection voting logic. It supports hot‑swap replacement without affecting protection function of other monitor modules. It completes register mapping configuration via rack configuration software.

Note: This is legacy 3500 series spare component,widely used for replacement of turbine and compressor TSI monitoring & protection systems.
